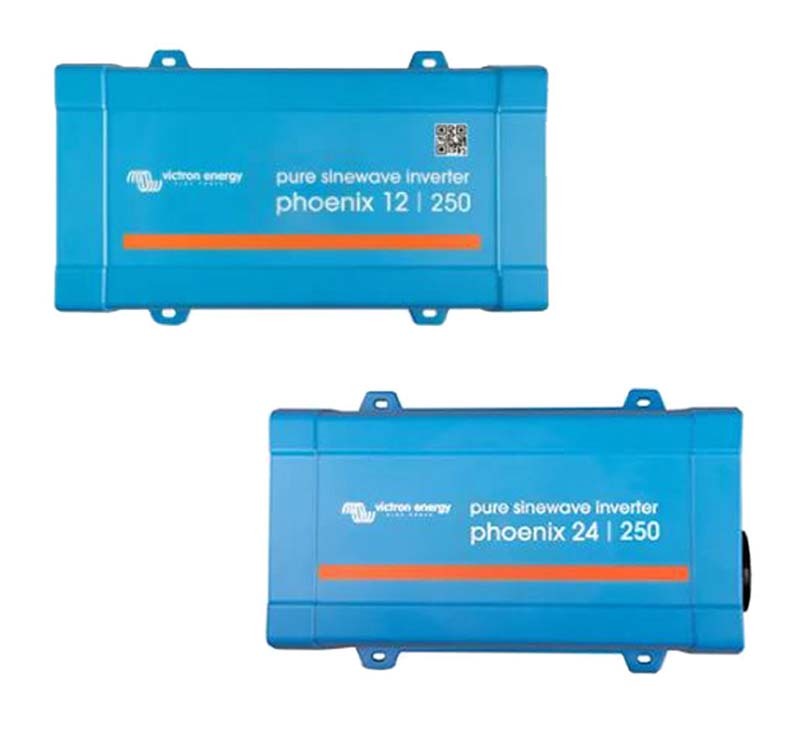

Victron Phoenix Inverter VE Direct 24V/250VA

The Victron Phoenix Inverter VE Direct is ideal for powering domestic equipment requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.

The inverter has proven reliability and high start-up power. It is fully configurable and is equipped with the VE.Direct communication port to connect to different devices.

Benefits & Features*

• VE.Direct communication port: Connect to computer (VE.Direct to USB interface cable needed) and Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

• Fully configurable: Low battery voltage alarm trip and reset levels, Low battery voltage cut-off and restart levels, Dynamic cut-off: load dependent cut-off level, Output voltage 210 - 245V, Frequency 50 Hz or 60 Hz, ECO mode on/off and ECO mode sense level

• Monitoring: Battery voltage, AC Ouput voltage, load indicator, alarms

• Proven reliability

• High start-up power

• ECO mode

• Remote on/off connector

• LED diagnosis

• Automatic transfer switch

• Short-circuit proof and protected against overheating

• NZ output socket

• 250VA

• Weight: 2.4kg

• Dimensions: 86mm(h) x 165mm(w) x 260mm(d)

• Voltage: Choose the Voltage from the dropdown menu

*For further specifications please click the “Features” tab

Click here for the Installation Manual
