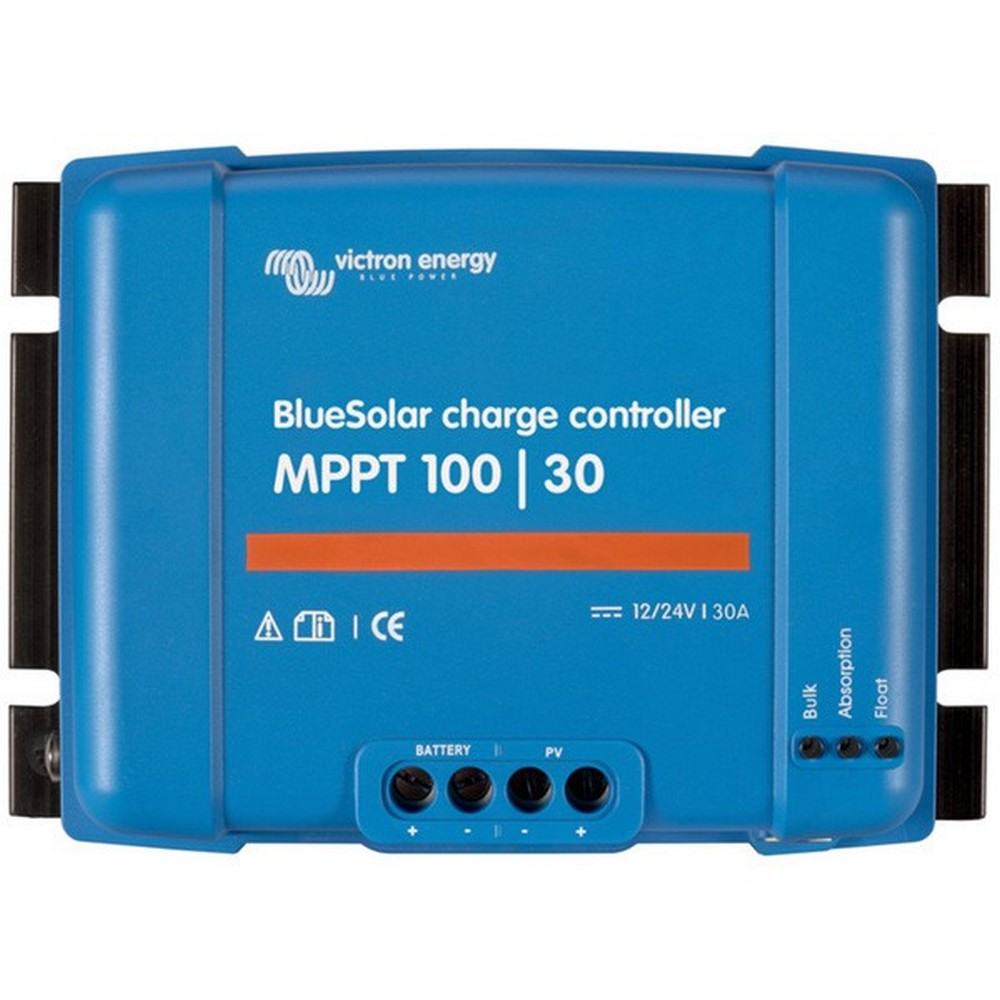

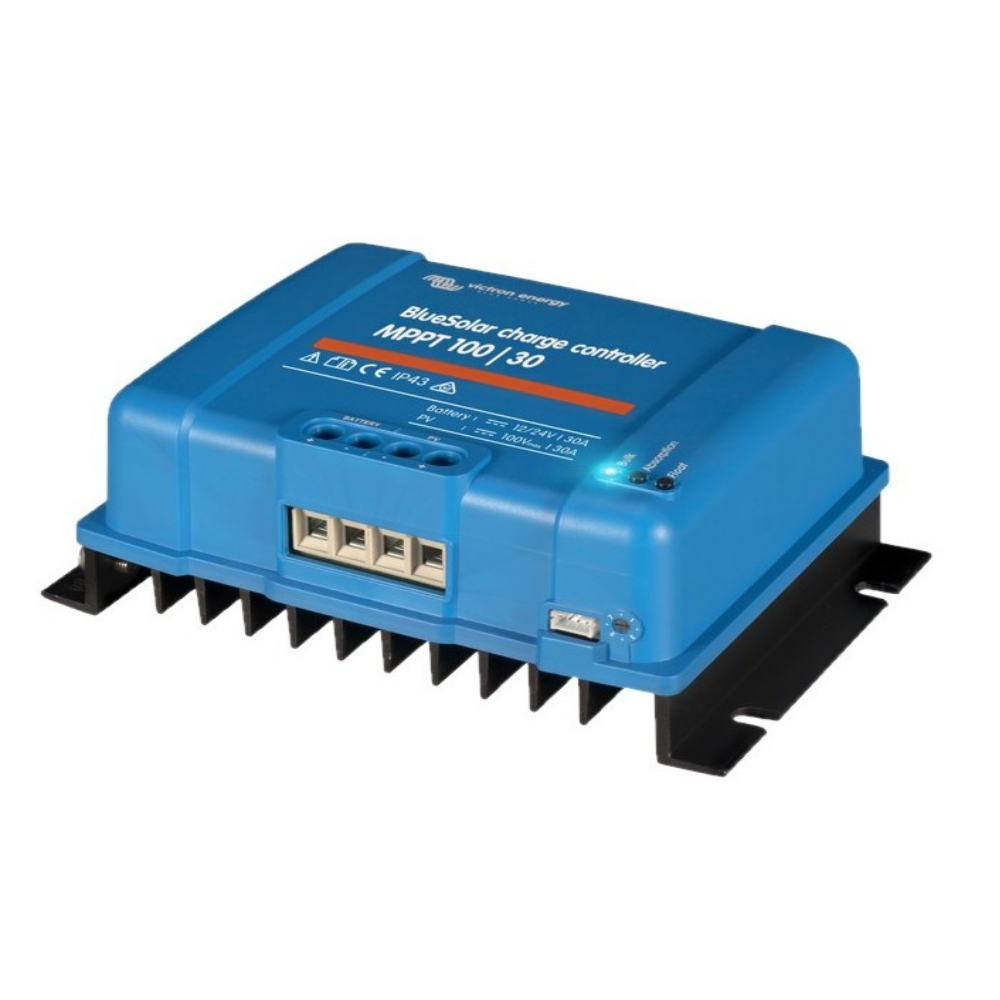

Victron BlueSolar MPPT Solar Controller 100V/30A

Benefits & Features

• Ultra-fast Maximum Power Point Tracking (MPPT)

• Advanced Maximum Power Point Detection in case of partial shading conditions

• Load output on the small models

• Battery Life: intelligent battery management by load shedding

• Automatic battery voltage recognition

• Flexible charge algorithm

• Over-temperature protection and power de-rating when temperature is high.

• Bluetooth enabled (Bluetooth dongle needed)

• VE.Direct communication port

To download the datasheet click here

To download the product manual click here

Specifications

• Battery voltage: 12/24V Auto Select

• Rated charge current: 30A

• Nominal PV power, 12V 1a,b): 440W

• Nominal PV power, 24V 1a,b): 880W

• Maximum PV open circuit voltag: 100V

• Max. PV short circuit current 2): 35A

• Maximum efficiency: 98%

• Self-consumption: 12V: 30mA

• Charge voltage absorption: Default setting: 14,4V / 28,8V (adjustable)

• Charge voltage float: Default setting: 13,8V / 27,6V (adjustable)

• Charge algorithm: multi-stage adaptiv

• Temperature compensation: -16 mV / °C resp. -32 mV / °C

Protection

• Battery reverse polarity (fuse, not user accessible PV reverse polarity Output short circuit Over temperature

• Operating temperature: -30 to +60°C (full rated output up to 40°C)

• Humidity: 95%, non-condensing

• Weight: 1,3 Kg

• Dimensions (h x w x d): 130 x 186 x 70 mm
