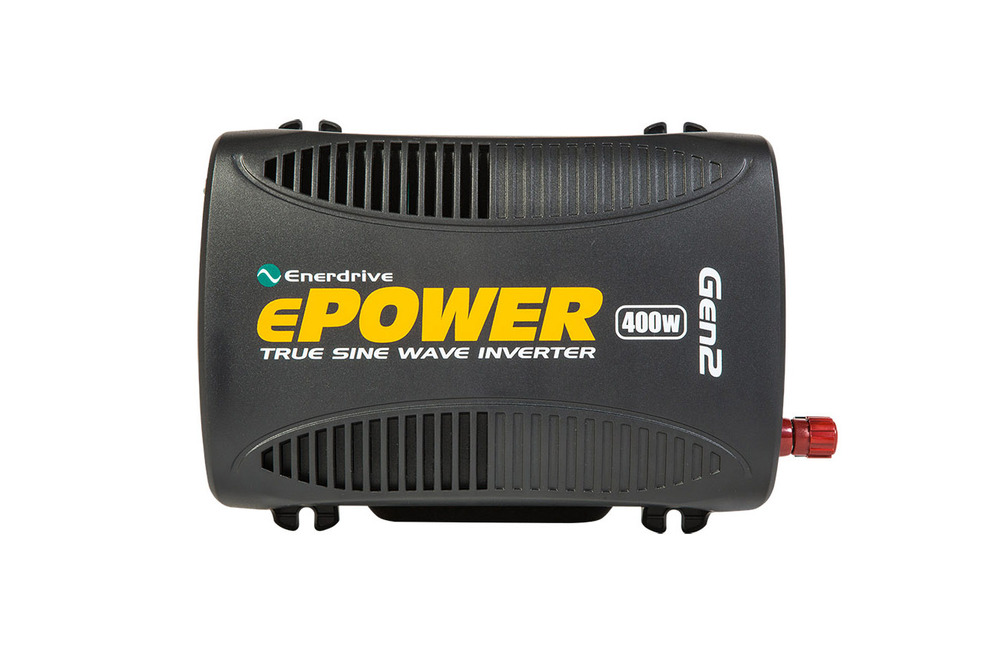

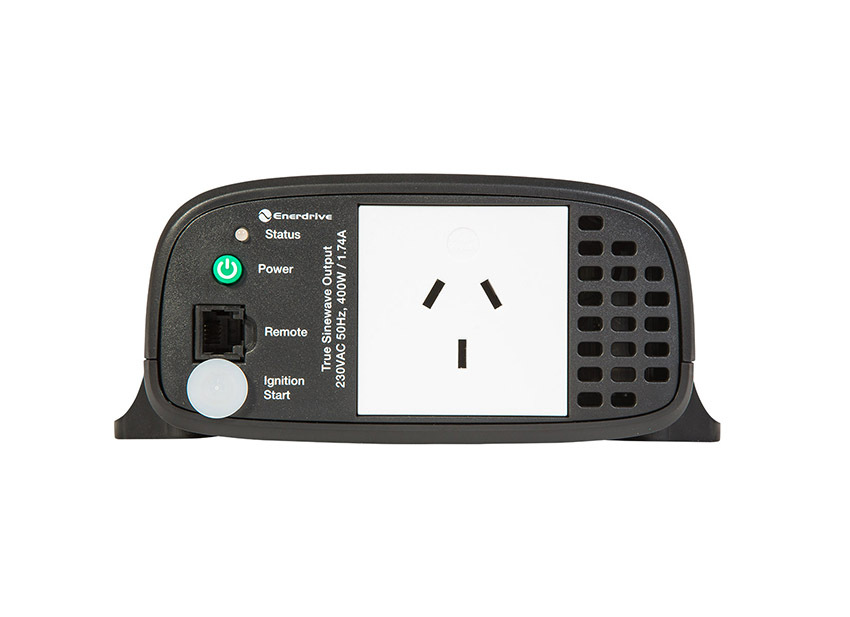

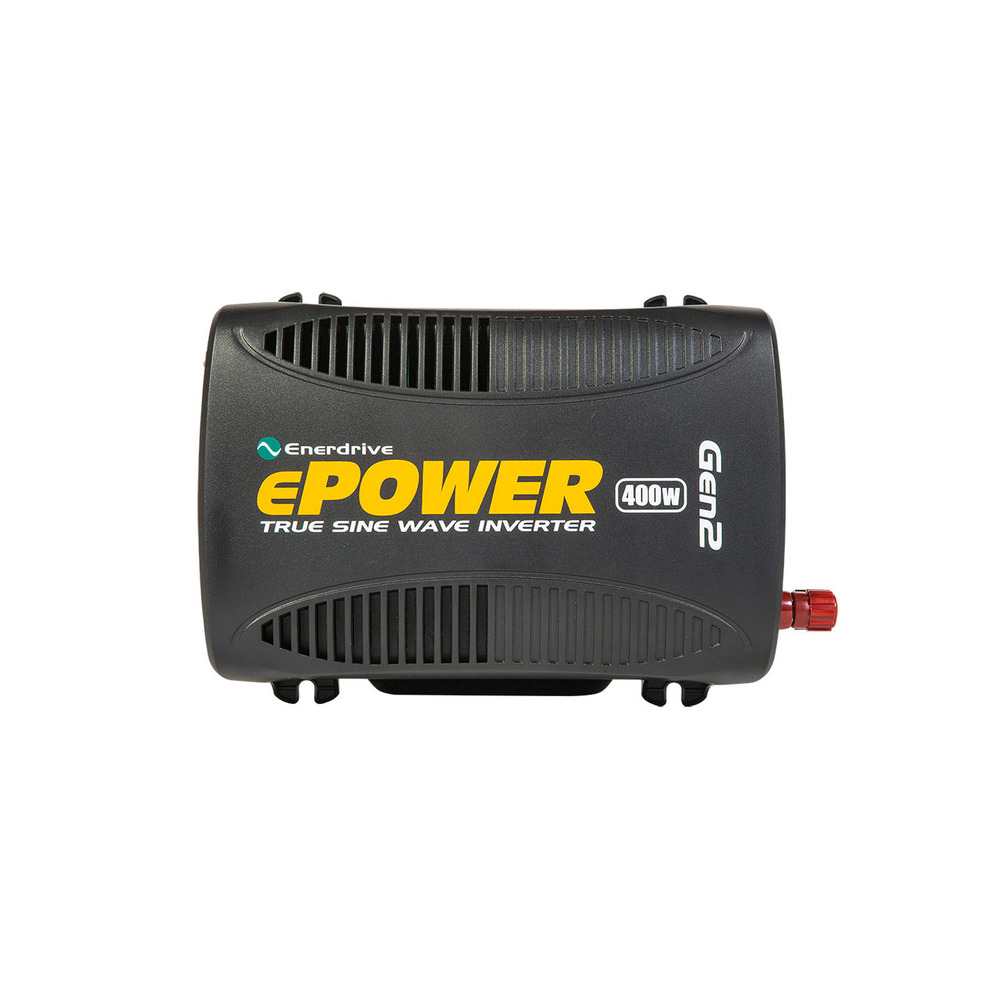

Enerdrive ePower Gen2 True Sine Wave Inverter 12V/400W

Benefits & Features

• Technologically advanced, easy to use and reliable 400W inverter

• Can run many AC powered appliances

• Audio and visual alarm with warning to alert user to check inverter before shutdown

• Automatic shutdown protects overload, over temperature and low/high battery conditions

• High surge capacity for products that require more power to start (constant x 2)

• High efficiency conversion of battery available power to AC power

• Mounting brackets for permanent installation

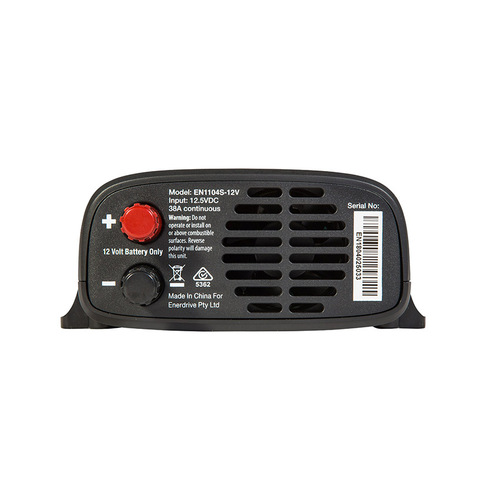

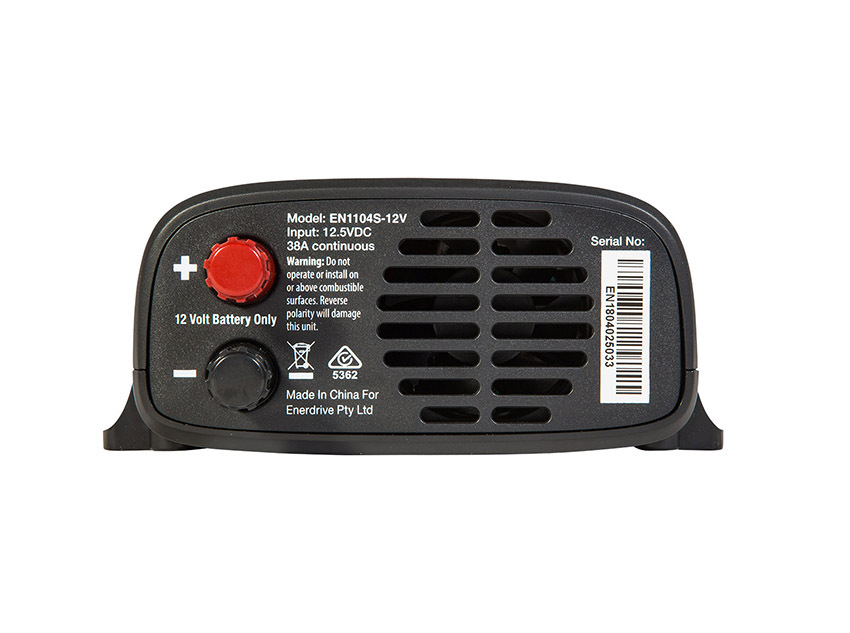

• Heavy duty DC battery stud connectors

• Ignitions start terminal for turning the unit on/off using a +12V signal

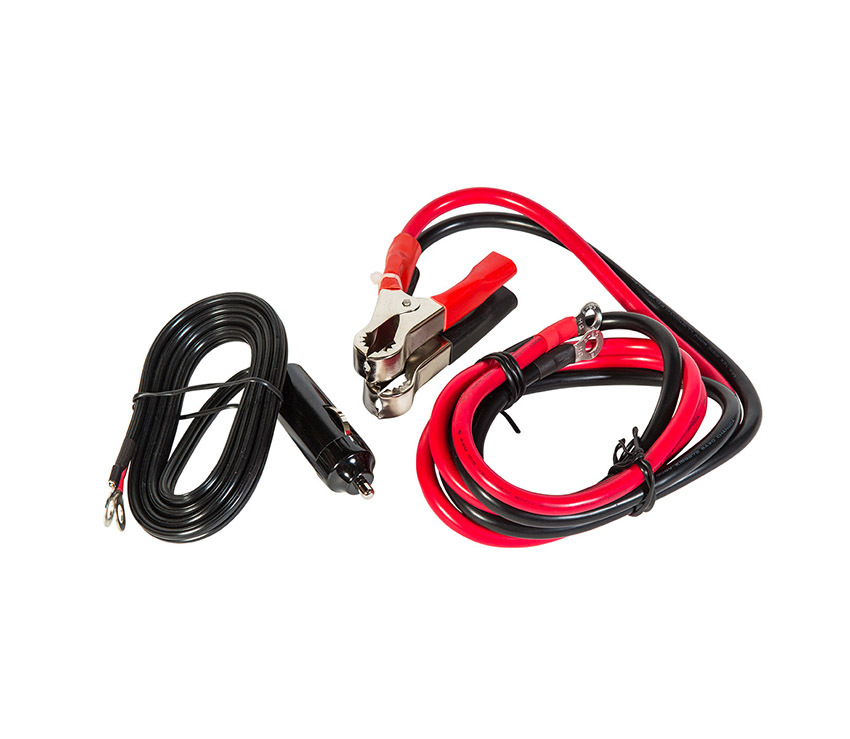

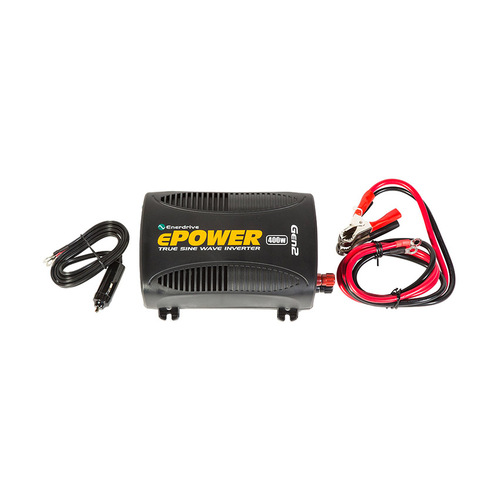

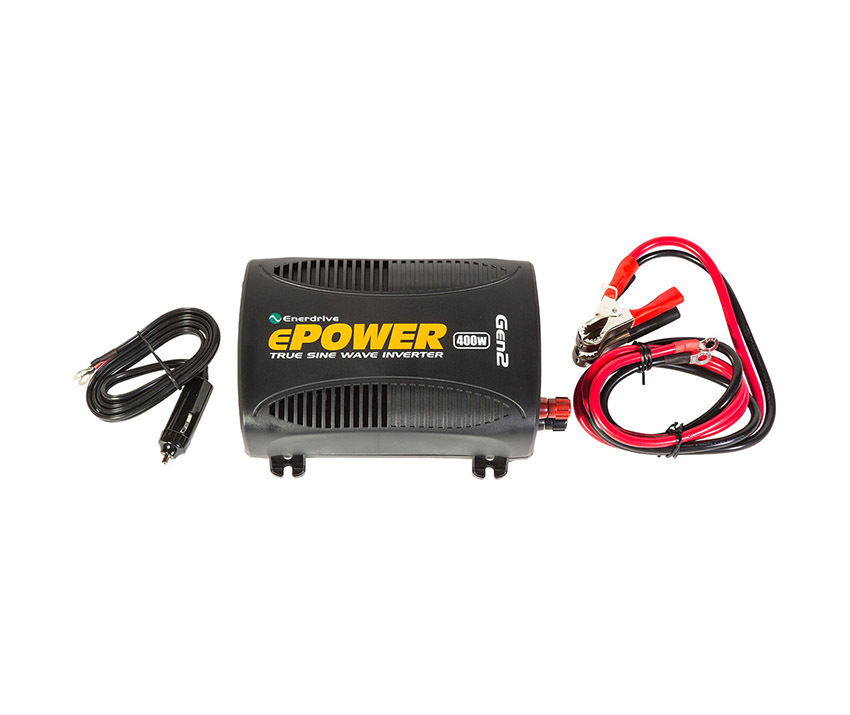

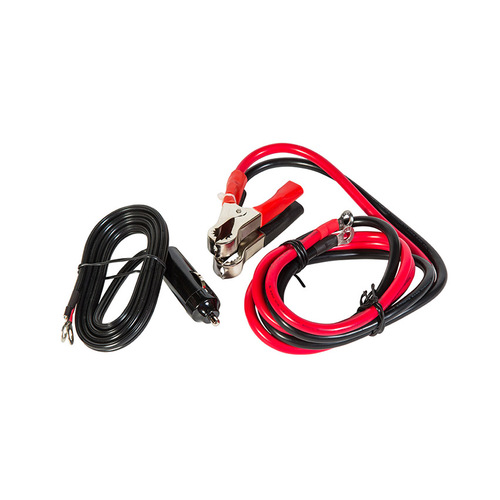

• Includes DC battery cable with HD alligator clips and 12V cigarette socket cable

• Dimensions: 218mm(w) x 152mm(d) x 66mm(h)

• Weight: 1.1 kg

• 5 year warranty

Specifications

• AC output power: 400W

• AC output current: 1.74A

• AC output voltage: 230Vac/50Hz

• AC output waveform: true sinewave (<5% THD)

• DC input voltage: 12.5VDC

• No load current: <0.8A

• DC operating range: 10.5VDC - 15.9VDC

• Under voltage alarm: 11VDC

• Under voltage alarm recovery: 11.3VDC

• Under voltage shutdown: 10.5VDC

• Under voltage recovery: 12VDC

• Over voltage shutdown: 15.9VDC

• Over voltage recovery: 15VDC

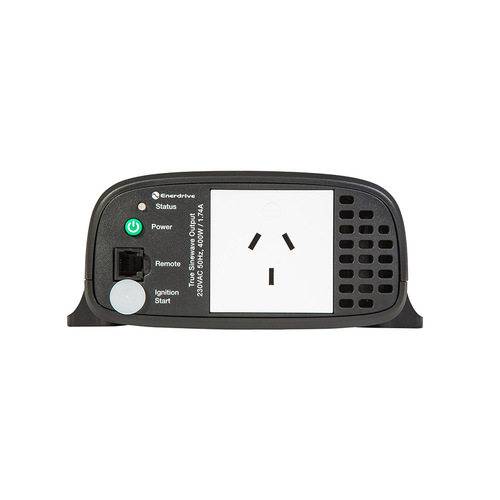

• Display power indicator: yes (green)

• Warning and fault indicator: yes (red)

• Lighter plug cable: 2.5mm² (conductors x 2) use for load <120W

• Battery clips cable: 10mm² (conductors x 2)

• Operating temperature: 0°C - 40°C

• Storage temperature: −20°C - 60°C

• Relative humidity: 5% - 90% non-condensing

Click here for the Manual
