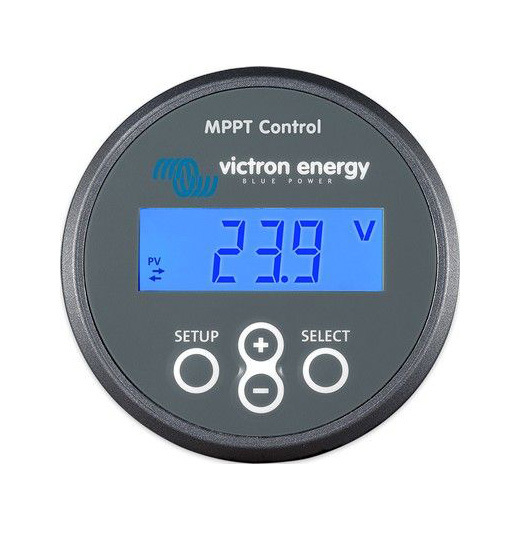

Victron MPPT Solar Controller Remote Digital Panel

The Victron MPPT Solar Controller Remote Digital Panel lets you see the status as well as setup all BlueSolar MPPT Charge Controllers that have a VE.Direct communications port.

The new MPPT Control is mounted in the familiar BMV-700 series housing, maintaining a consistent and professional look to your panels and systems monitoring equipment.


Benefits & Features

• Supports all MPPT models with VE.Direct port, except the BlueSolar MPPT 70/15

• Includes cable with fuse for battery powered operation

• Supply voltage: 6.5-95V DC (battery powered), 5V (VE.Direct powered)

• Current draw, back light off: <4mA

• Operating temperature range: −20 to +50°C (0-120°F)

• Software version: all software versions ≥1.12

• Installation: flush mount

• Front: 63mm diameter

• Front bezel: 69mm x 69mm

• Body diameter: 52mm

• Body depth: 31mm

Click here for the Manual

VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in or are connected to a VE.Direct Bluetooth Smart Dongle.

​
