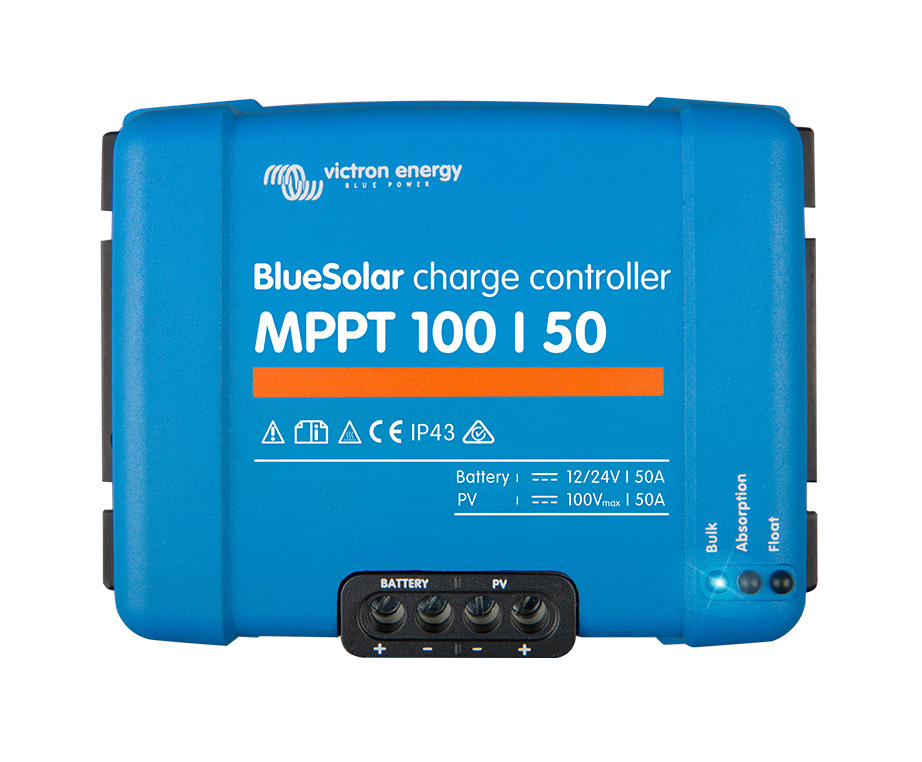

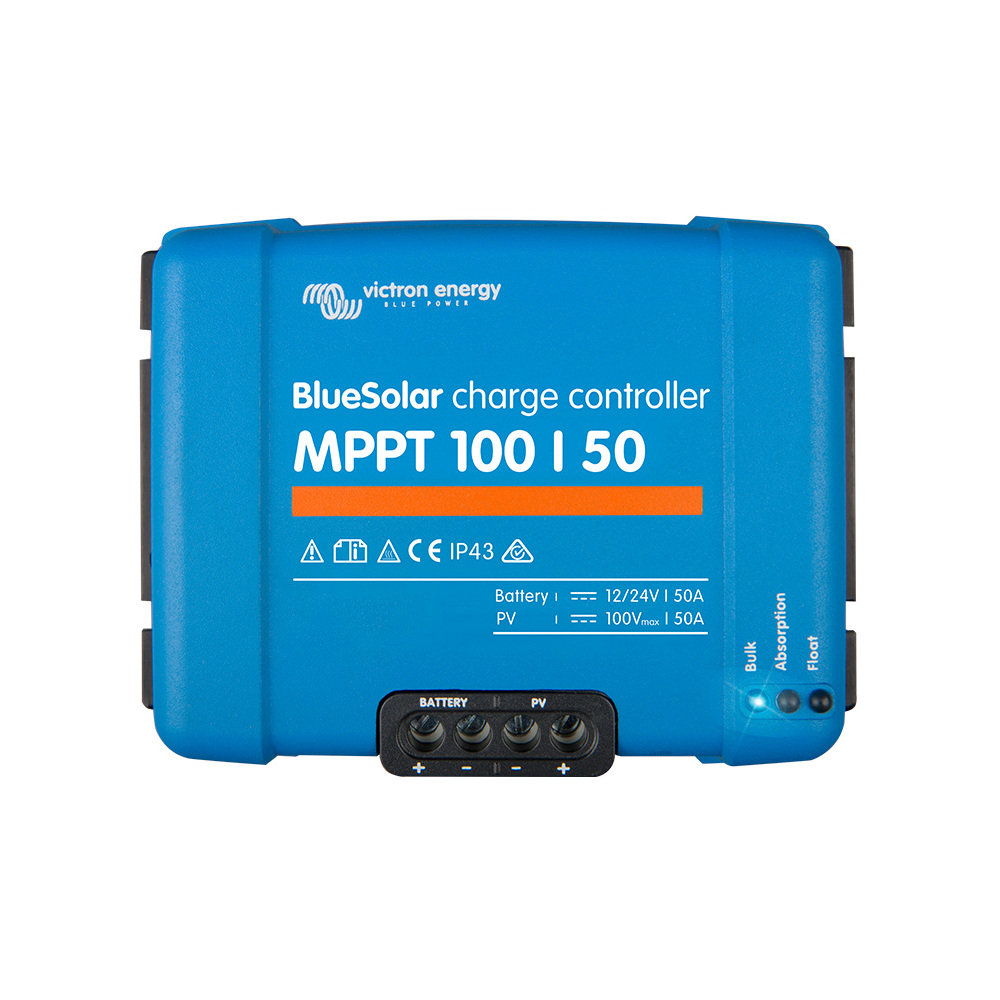

Victron BlueSolar MPPT Solar Controller 100V/50A

Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

In Stock - Auckland
This product is ready to ship from our Auckland Airport branch. Expect delivery in 1 - 4 business days.

Specifications

Battery voltage: 12/24V auto select
Rated charge current: 50A
Nominal PV power, 12V: 700W*
Nominal PV power, 24V: 1400W*
PV open circuit voltage (max): 100V
PV short circuit current (max): 60A**
Efficiency (max): 98%
Self-consumption: 12V: 30mA, 24V: 20mA
Charge voltage absorption (default setting): 14.4V/28.8V (adjustable)
Charge voltage float (default setting): 13.8V/27.6V (adjustable)
Charge algorithm: multi-stage adaptive
Temperature compensation: −16mV/°C resp., −32mV/°C
Safety: EN/IEC 62109-1, UL 1741, CSA C22.2

*If more PV power is connected, the controller will limit input power. PV voltage must exceed Vbat + 5V for the controller to start. Thereafter minimum PV voltage is Vbat + 1V.
**A PV array with a higher sort circuit current may damage the controller.

The Victron BlueSolar MPPT Solar Controller 100V/50A rises to the occasion even on cloudy days as the Maximum Power Point Tracking (MPPT) technology is designed to collect the most energy possible despite fluctuating light conditions.

Due to the ultra-fast MPPT technology in this charge controller, full charge is reached very quicky. It can be remotely controlled and monitored by being fitted with Bluetooth via the VE.Direct Bluetooth Smart Dongle.

Benefits & Features*

Ultra-fast Maximum Power Point Tracking (MPPT)
Improves energy harvest when light intensity is changing
Achieves full charge in shortest possible time
Maintains battery health and extends its life
Retrofit with Bluetooth by connecting the VE.Direct Bluetooth Smart Dongle**
Dimensions: 186mm(w) x 130mm(d) x 70mm(h)
Weight: 1.3kg

*For further specifications please click the "Features" tab
Click here for the Manual
Click here for the Datasheet

**VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in or are connected to a VE.Direct Bluetooth Smart Dongle.
