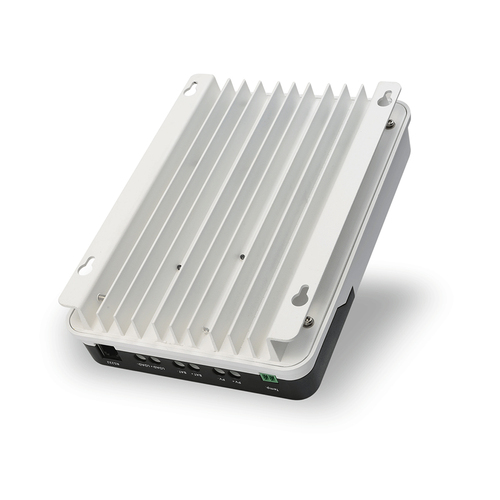

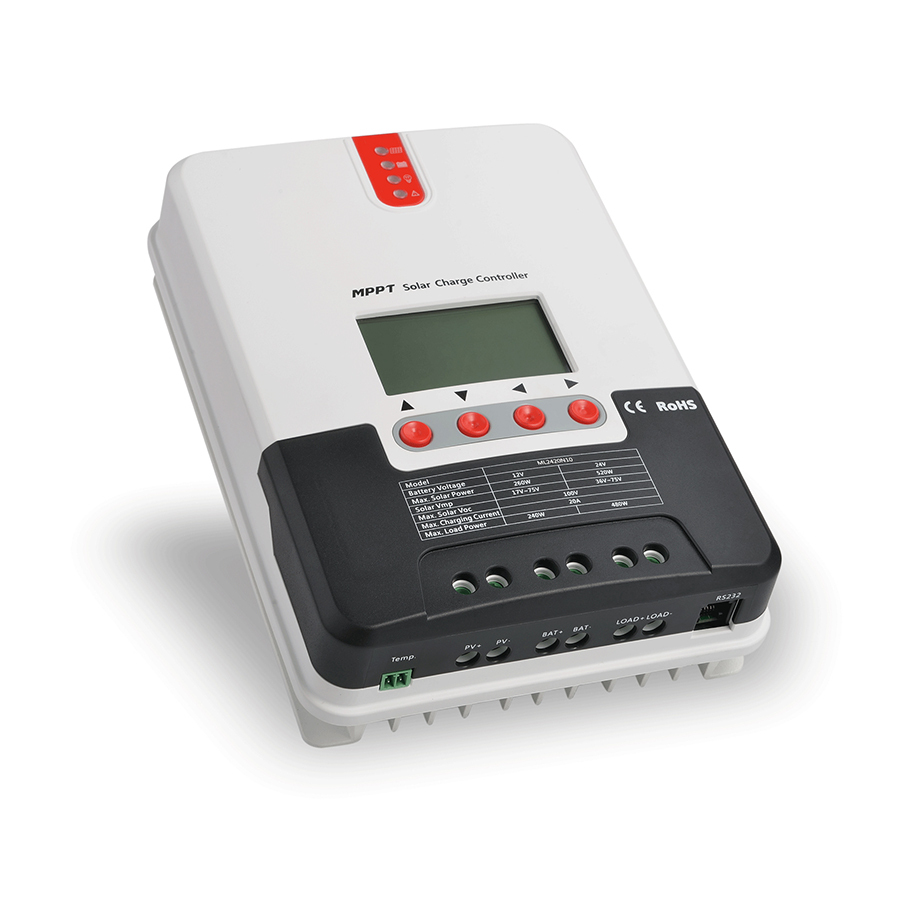

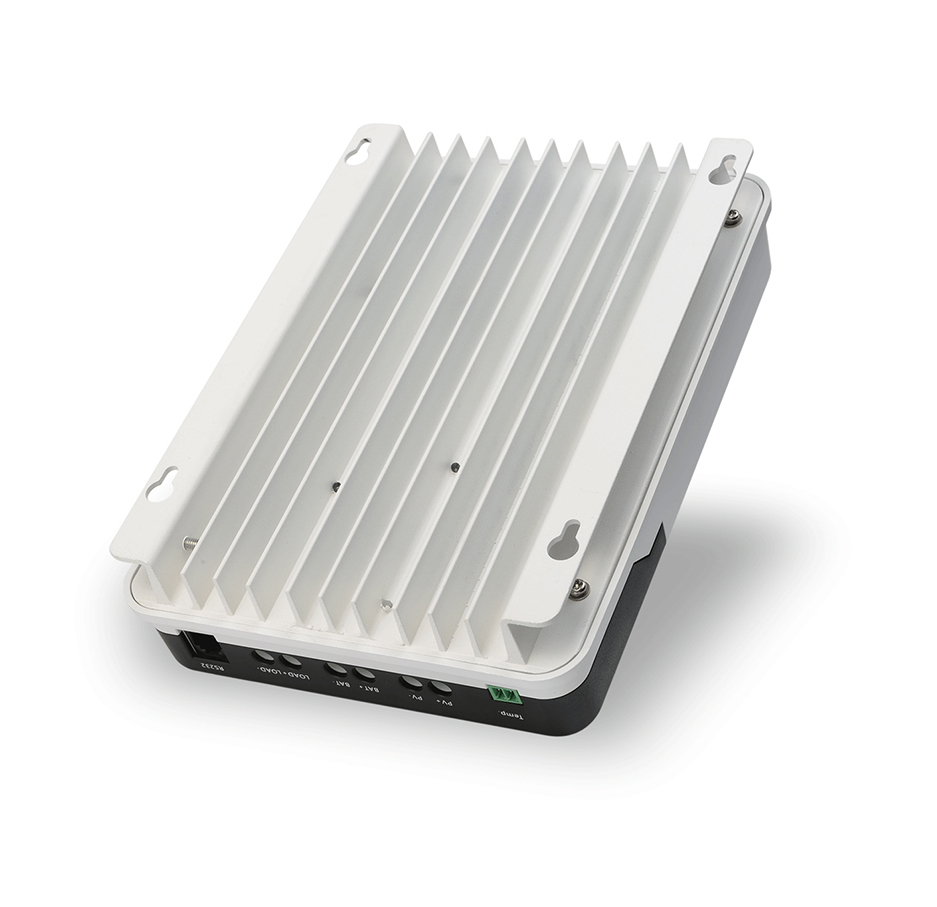

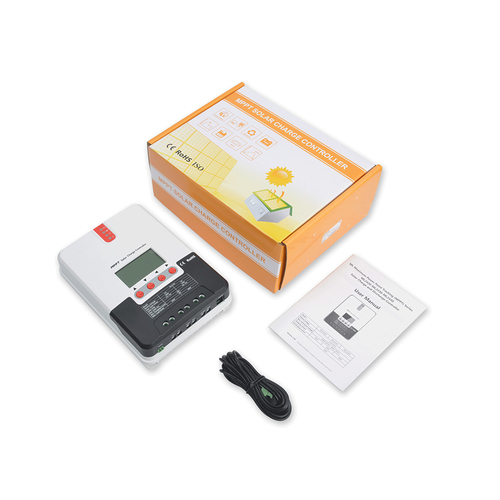

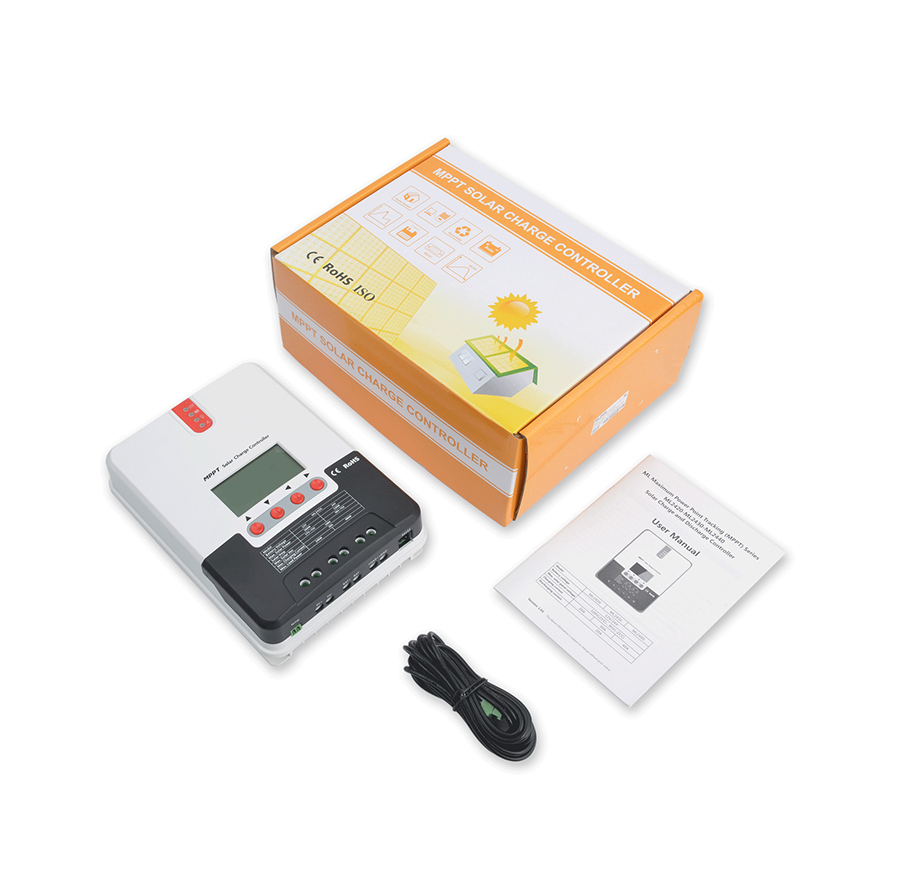

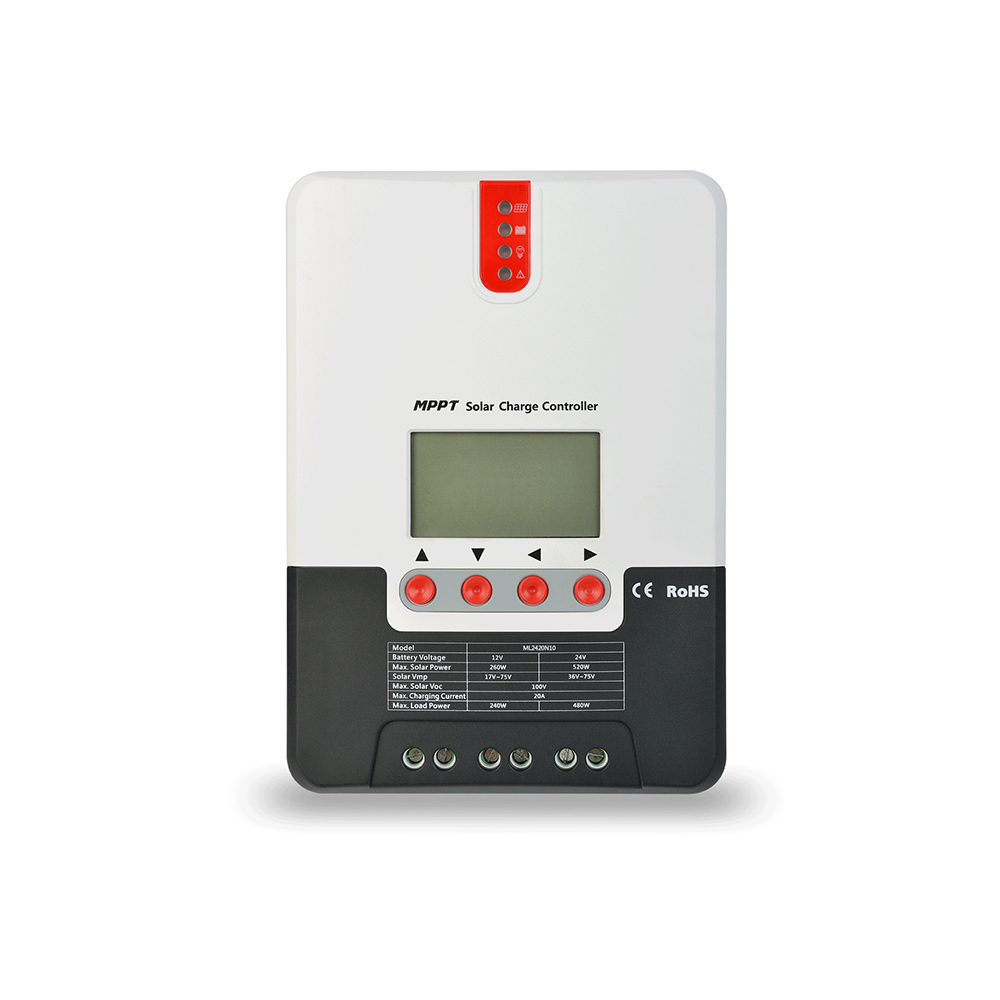

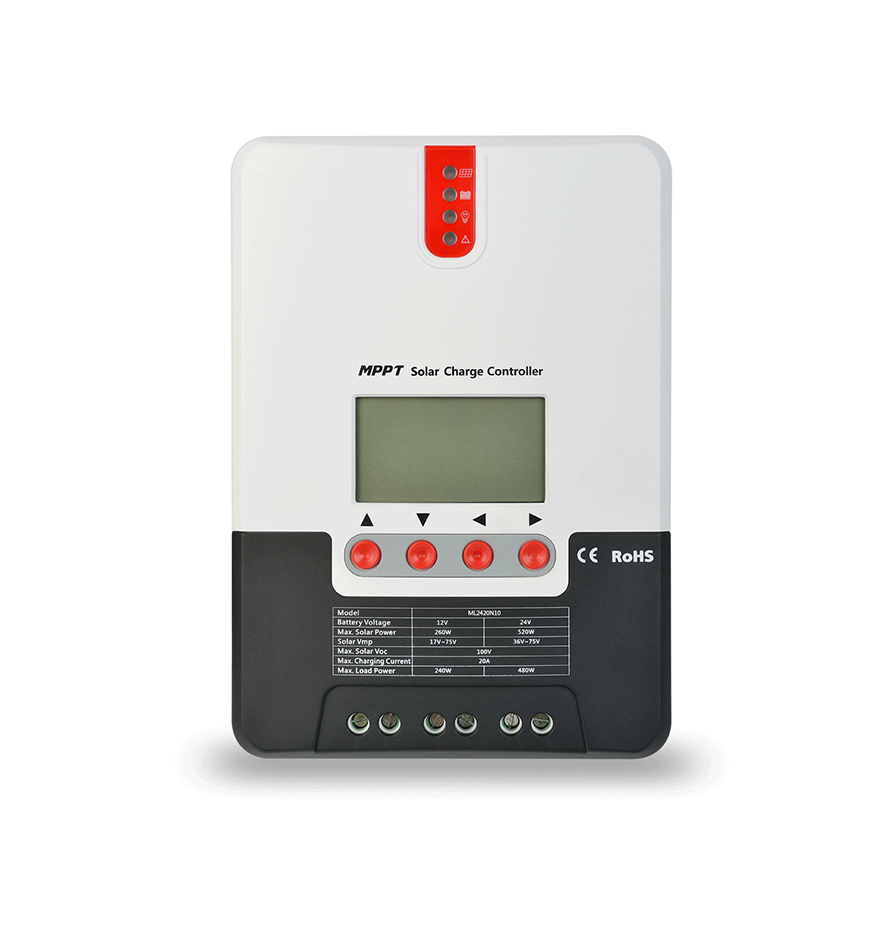

SRNE MPPT Solar Controller 12V/30A

Benefits & Features

• Common negative pole charge controller ML24V series for off-grid

• Automatic charging voltage regulation function

• MPPT tracking efficiency up to 99.9%

• Advanced digital power technology raises the circuit energy conversion efficiency to 98%

• Supports charging charging lithium batteries, gel batteries, sealed batteries, vented batteries, etc.

• Overheating protection mechanism

• Temperature compensation function

• Solar panel short circuit, battery open circuit and TVS lightning protection

• Features a limited current charging mode

• Can be connected with LCD screen or Bluetooth module

• System voltage: 12V/24V auto

• No-load loss: 0.7-1.2W

• Battery voltage: 9-35V

• Dimensions: 173mm(w) x 72.5mm(d) x 238mm(h)

• Weight: 2kg

Specifications

• Solar input voltage (max): 100V (25℃), 90V (−25℃)

• Power point voltage range: battery voltage +2V to 75V

• Rated charging current: 30A

• Rated load current: 20A

• Load capacity (max): 10,000uF

• Photovoltaic (max): 400W/12V

• System input power: 800W/24V

• Conversion efficiency: ≤98%

• MPPT tracking efficiency: >99%

• Temperature compensation factor: −3mv/℃/2V（default）

• Operating temperature: −35℃  to +45℃

• Protection degree: IP32

• Communication method: RS232

• Altitude: ≤3000m
