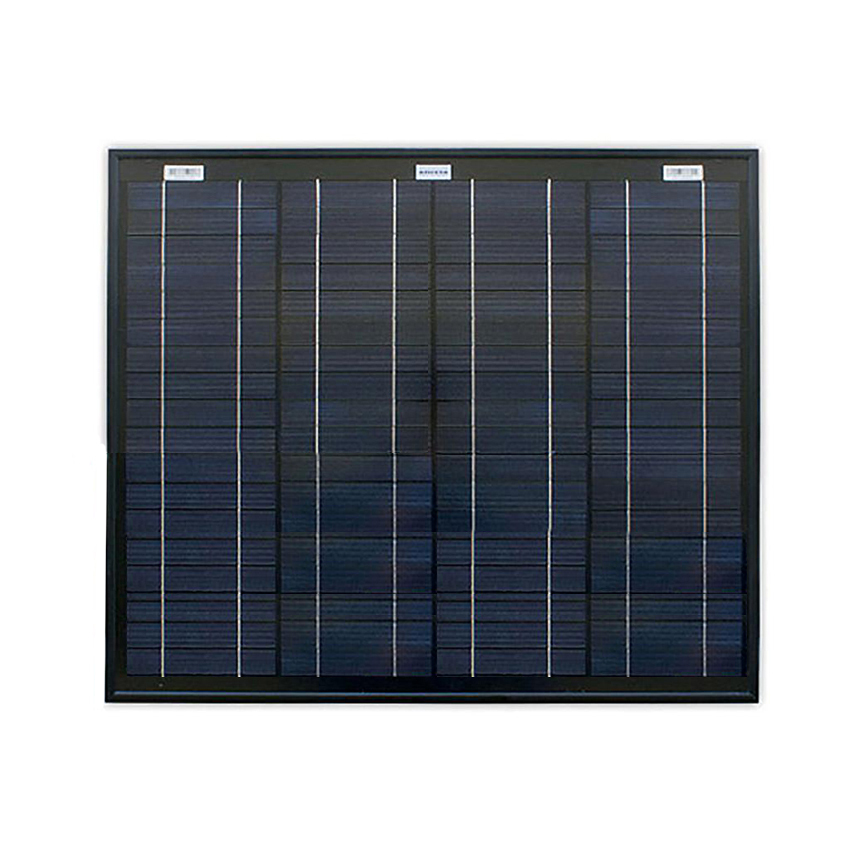

Enerdrive Solar Panel 24V/40W

The Enerdrive Solar Panel 24V/40W is a high-voltage monocrystalline solar panel that is a good example of the care that Enerdrive have put into creating their quality solar panels.

These solar panels are approximately 20+VDC open circuit and are suitable for 12V installations.

Benefits & Features

• Monocrystalline solar panel with black frame

• Typically around 20+VDC open circuit

• Suitable for 12V installations

• Includes MC4 compatible solar cable connectors

• Max power (Pm): 40W

• Power tolerance: 0%∼3%

• Max power voltage (Vm): 35.5V

• Max power current (Im): 1.13A

• Open circuit voltage (Voc): 43.1V

• Short circuit current (Isc): 1.85A

• System voltage: 1000VDC (max)

• Test conditions: 1000W/m², AM1.5, 25°C

• Dimensions: 670mm(w) x 35mm(d) x 567mm(h)

• Weight: 4.6kg

• 5 year warranty

Click here for the Datasheet
Click here for the Specifications
