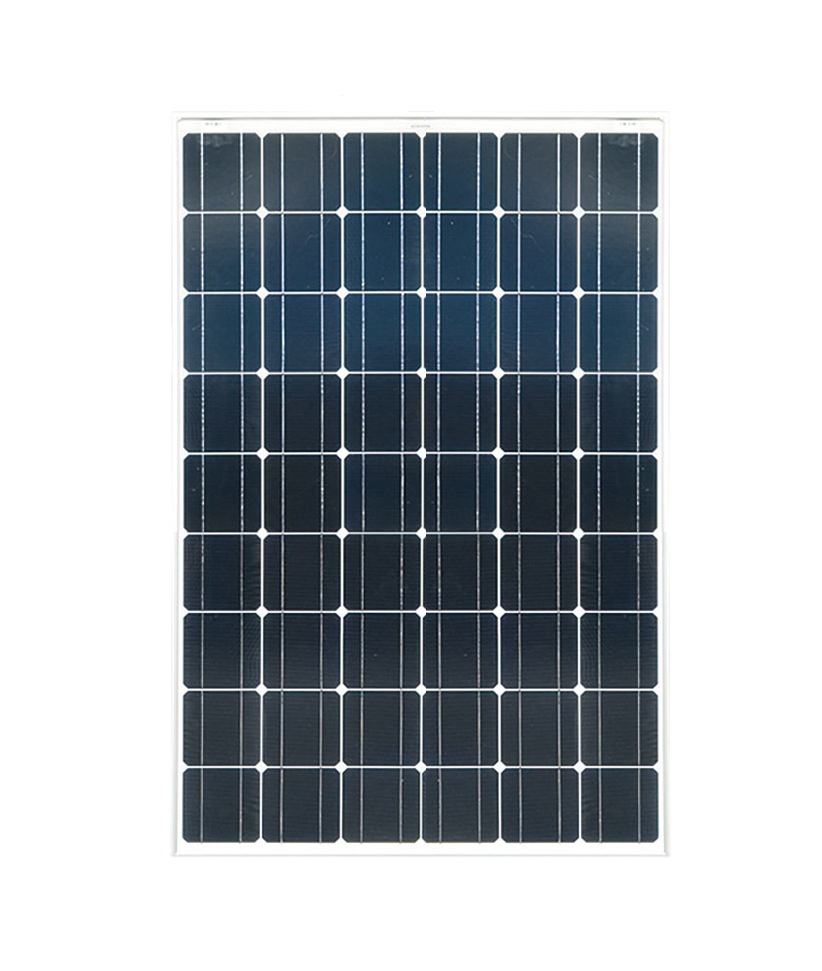

Enerdrive Solar Panel 12V/80W

The Enerdrive Solar Panel 12V/80W is a high-voltage monocrystalline solar panel that is a good example of the care that Enerdrive have put into creating their quality solar panels.

These solar panels are approximately 20+VDC open circuit and are suitable for 12V installations or 24V by series connections of the panels.

Benefits & Features

• Monocrystalline solar panel with black frame

• Typically around 20+VDC open circuit

• Suitable for 12V installations (or 24V by series connections of panels)

• Includes MC4 compatible solar cable connectors

• Max power (Pm): 80W

• Power tolerance: −1%∼ +3%

• Max power voltage (Vm): 17.5V

• Max power current (Im): 4.58A

• Open circuit voltage (Voc): 22.4V

• Short circuit current (Isc): 5.1A

• System voltage: 1000VDC (max)

• Test conditions: 1000W/m², AM1.5, 25°C

• Dimensions: 676mm(w) x 35mm(d) x 780mm(h)

• Weight: 7.9kg

• 5 year warranty

Click here for the Datasheet
Click here for the Specifications
