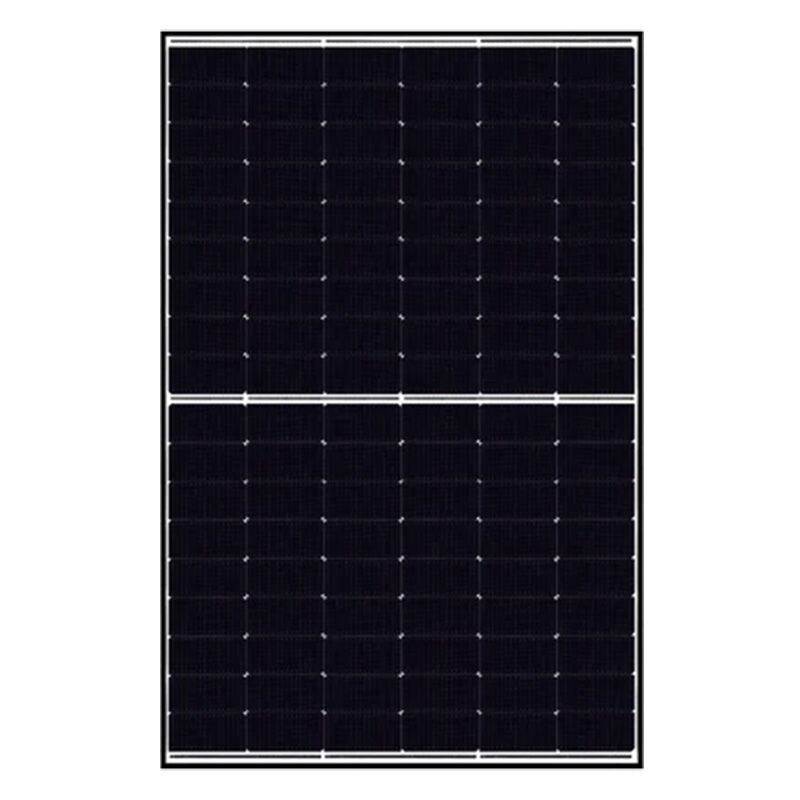

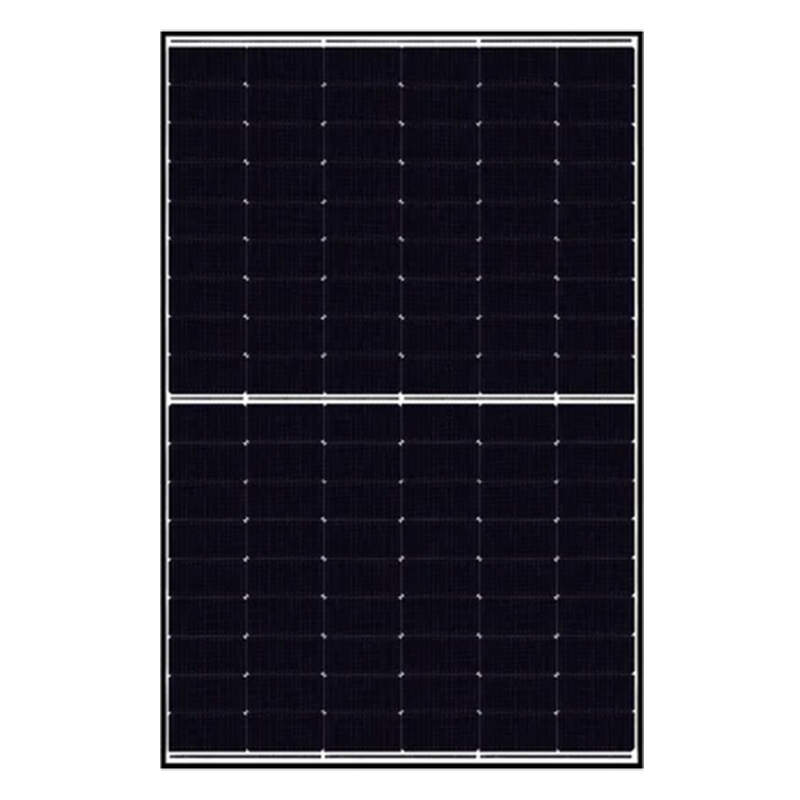

CanadianSolar TopCon PV Solar Panel with Black Frame 440W

Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

In stock with supplier
This product will be shipped from supplier. Expect delivery in 5 - 14 business days.

Benefits & Features

Power Output: 440W Maximum
Cell Type: TOPCon cells
Up to 22.5% Module Efficiency
1st year power degradation no more than 1%
No boron-oxygen LIF and anti-PID, less degradation
16BB cell technology, better light trapping and current collection
Low temperature coefficient (Pmax): -0.29%/℃, more energy in hot climate
High energy generation
Low BOS and LCOE
Minimise cell micro-crack impacts on module reliability
Wind loads up to 2,400 Pa, snow loads up to 5,400Pa
Material - panel: 3.2 mm tempered glass with antireflective coating
Material - frame: Anodized aluminium alloy
25-year product and 30-year power performance warranty

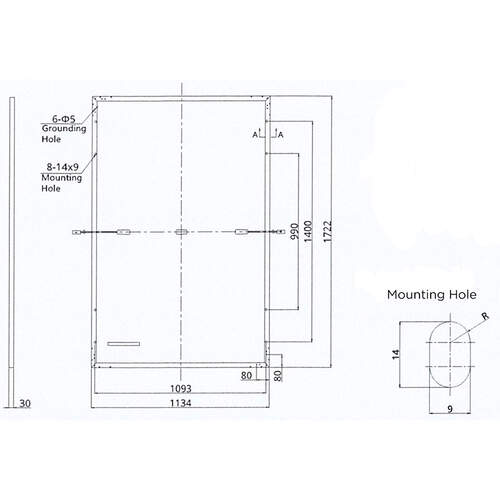

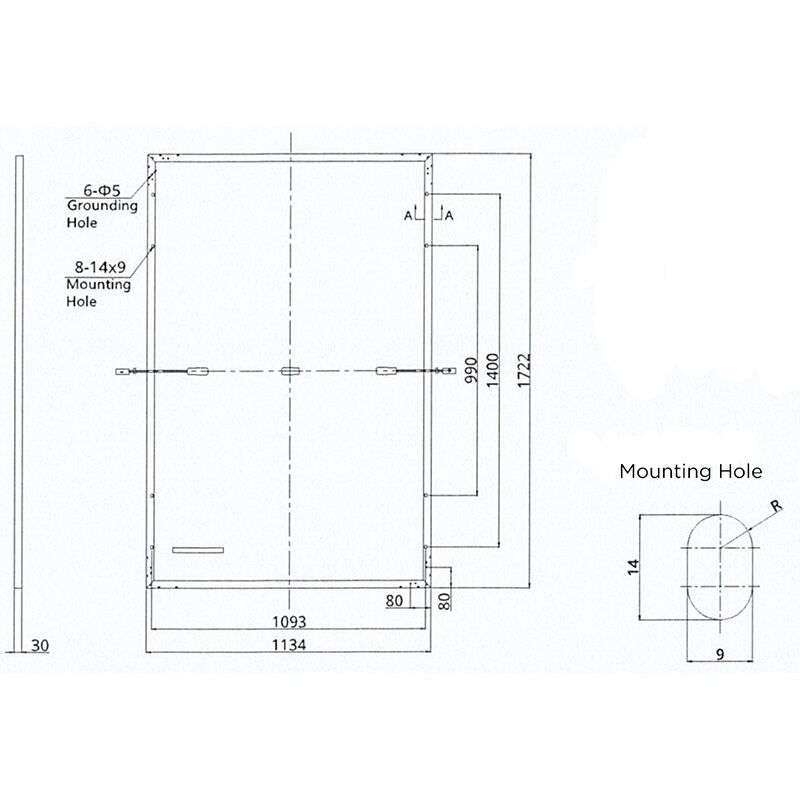

Dimensions: 1722(h) x 1134(w) x 30(d)mm
Weight: 21.3kg

Specifications

Nominal Max. Power (Pmax): 440W
Opt. Operating Voltage (Vmp): 32.4V
Opt. Operating Current(Imp): 13.59A
Open Circuit Voltage (Voe): 39.4V
Short Circuit Current (lsc): 14.01A
Module Efficiency: 22.5%
Operating Temperature: -40° C -+85°C
Max. System Voltage: 1500V (!EC/UL) or 1 000V (]EC/UL)
Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (!EC 61730)
Max. Series Fuse Rating: 25A
Protection Class: Class II
Power Tolerance: 0-+ 10 W
Nominal Max. Power(Pmax): 333W
Opt. Operating Voltage(Vmp): 30.6V
Opt. Operating Current(Imp): 10.87A
Open Circuit Voltage (Voe): 37.3V
Short Circuit Current (Isc): 11.30A
Temperature Coefficient (Pmax): -0.29 % I °C
Temperature Coefficient (Voe): -0.25 % I °C
Temperature Coefficient (lsc): 0.05 % I oc
Nominal Module Operating Temperature: 41 ± 3° C
J-Box: IP68, 3 bypass diodes
Cable: 4 mm2 (!EC), 12 AWG (UL)

With a massive 25-year warranty and a 30-year power performance warranty, the CanadianSolar TopCon PV Solar Panel with Black Frame 440W really is a top performing solar panel. Its 16BB cell technology also allows for better light trapping and current collection.

And with an impressive 22.5% efficiency, this advanced technology features N-type cells and TOPCon technology. Backed by a 25-year product warranty and a 30-year power performance warranty, these panels provide long-lasting reliability and peace of mind, ensuring that customers receive top-tier performance and value from their solar investments.

Built with durability in mind, the CanadianSolar TopCon PV Solar Panel can withstand wind loads up to 2,400 Pa and snow loads up to 5,400Pa.

It also boasts no more than 1% of power degradation in the first year of use due to no boron-oxygen LIF and anti-PID which results in less degradation. Giving you complete peace of mind that you have made a wise investment.

NOTE: For 240V Domestic & Household installations this product MUST be installed by a registered electrician, who can issue a Certificate of Compliance and Electrical Safety Certificate in compliance with SNZ PAS 6014:202 NZ Residential solar photovoltaic (PV) and battery storage systems guidelines. THIS DOES NOT APPLY TO MOTORHOMES, CARAVANS OR MARINE.

Specifications include: Power Output: 440W Maximum, Cell Type: TOPCon cells, Opt. Operating Voltage (Vmp): 32.4V, Opt. Operating Current(Imp): 13.59A, Open Circuit Voltage (Voe): 39.4V, Short Circuit Current (lsc): 14.01A, Dimensions: 1722(h) x 1134(w) x 30(d)mm, Weight: 21.3kg
For more Benefits & Features, please click the 'Features' tab
