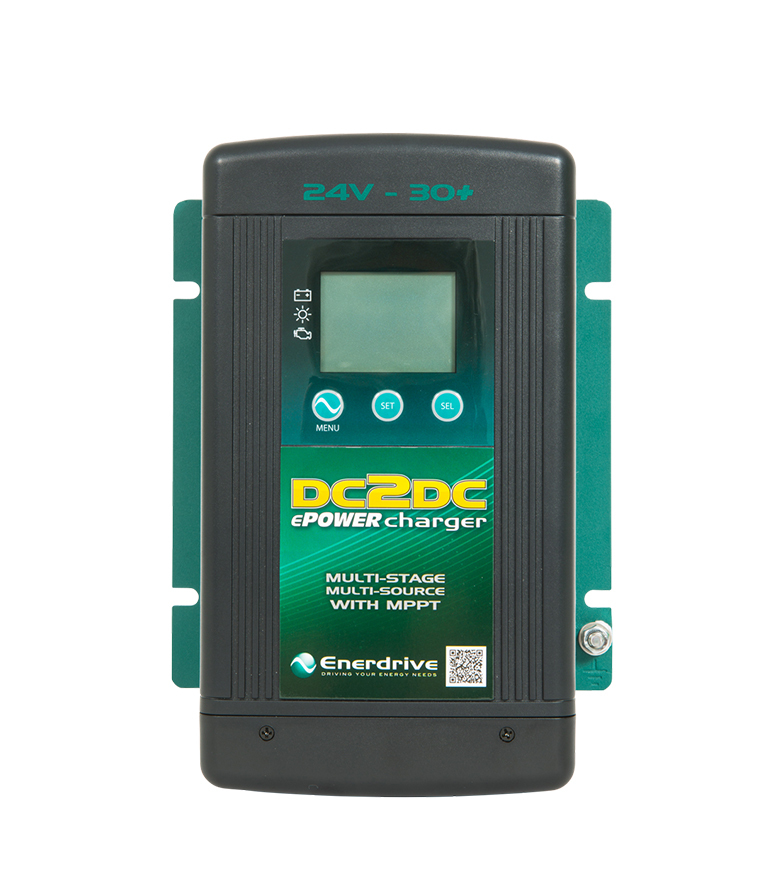

Enerdrive ePOWER DC/DC Charger with MPPT Controller 24V/30A

Benefits & Features*

• Automatic, set and forget charger

• Independent DC inputs x 2 for both engine and solar regulation

• Dedicated MPPT solar regulator

• Multistage charging process

• DC M6 screw terminals that will allow for large battery cable connection between all sources

• 30A output up to 40+°C with thermo controlled fan cooling

• Fully programmable LCD display shows which source is charging battery, charger status, voltage and amperage

• Temperature sensor included with charger for more accurate battery charging

• Output voltage: 24V nominal (17V min)

• Output current: 30A

• Output power: 865W

• Dimensions: 172mm(w) x 242mm(d) x 74mm(h)

• Weight: 1.85kg

• 5 year warranty

Specifications

• Selectable battery type: gel, AGM, flooded, lithium, program

• Charger voltage range: 27.6-31V

• Float voltage range: 26-27.6V

• Charger current (user selectable): 5/10/20/30A (default 30A)

• Equalise voltage (flooded battery): 31V

• Equalise charging current: 10% of bulk current setting

• Charging control: 2 stage/3 stage selectable (default 3 stage)

• DC output bank: single

• Current draw from CH1 when not operating: ≤50mA

• Battery temperature setting: low/normal/high (battery temperature sensor standard)

• Efficiency: 95%

• Input rating (CH2 - MPPT solar); input voltage: 14.5-45VOC

• Maximum solar input: ≤23V input, 500W (600W allowable); ≥37.5-45V input, 800W (1000W allowable)

• Input rating (CH3 - start/alternator); input voltage: 10.5-16V DC/21-32V DC
