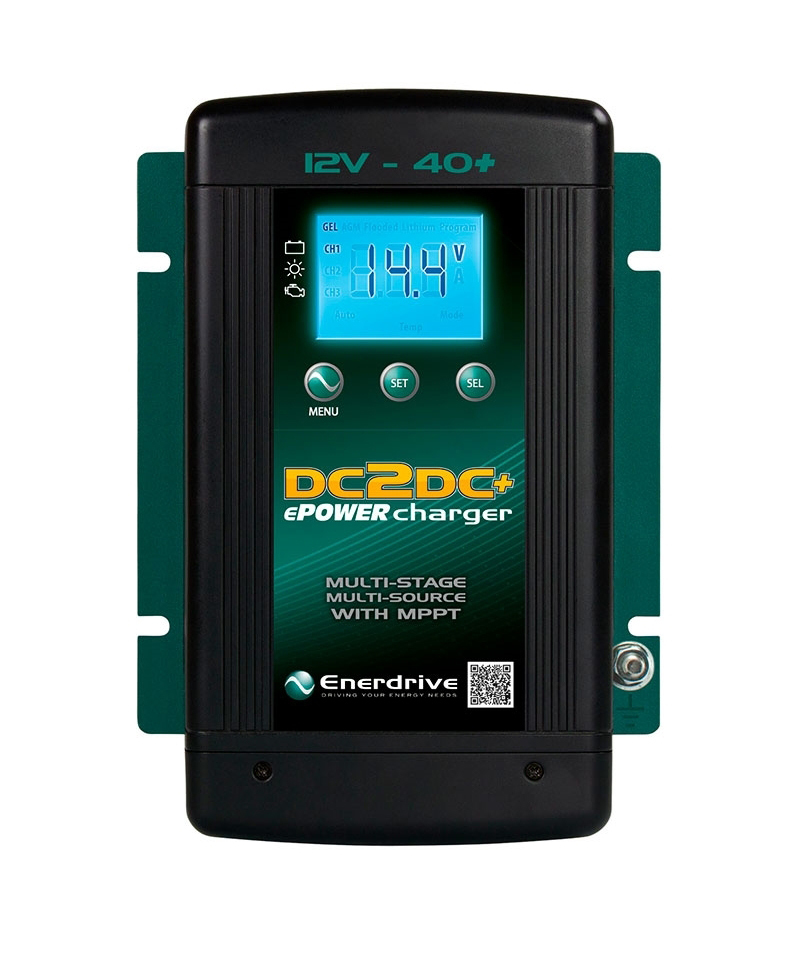

Enerdrive ePOWER DC/DC Charger with MPPT Controller 12V/40A

Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

In Stock - Auckland and Christchurch
This product is ready to ship from our Auckland and Christchurch branches. Expect delivery in 1 - 4 business days.

Specifications

Selectable battery type: gel, AGM, flooded, lithium, program
Charger voltage range: 13.8-15.5V
Float voltage range: 13-13.8V
Charger current (user selectable): 5/10/15/20/25/30/35/40/45/50A (default 40A)
Equalise voltage (flooded battery): 15.5V
Equalise charging current: 10% of bulk current setting
Charging control: 2 stage/3 stage selectable (default 3 stage)
DC output bank: single
Current draw from CH1 when not operating: ≤50mA
Battery temperature setting: low/normal/high (battery temperature sensor standard)
Efficiency: 95%
Input rating (CH2 - MPPT solar); input voltage: 14.5 - 45VOC
Maximum solar input: ≤23V input, 500W (600W allowable); ≥37.5V - 45V input, 800W (1000W allowable)
Input rating (CH3 - start/alternator); input voltage: 10.5-16V DC/21-32V DC

Choose the fully automatic multistage, multi-input Enerdrive ePOWER DC/DC Charger with MPPT Controller 12V/40A for a versatile battery charger that is great for motorhome, caravan or boat use as it can charge from an alternator linked to a battery or through solar power using the MPPT solar controller.

This set and forget charger features two automatically selected available inputs: the main/house battery is charged by the engine when you are on the move or solar panels are used when you are stationary. The smart charging technology ensures that the charger is permanently connected to your battery bank and output will be regulated so your battery bank's life is maintained.

Benefits & Features*

Automatic, set and forget charger
Independent DC inputs x 2 for both engine and solar regulation
Dedicated MPPT solar regulator
Multistage charging process
DC M6 screw terminals that will allow for large battery cable connection between all sources
40A+ output up to 40+°C with thermo controlled fan cooling
Fully programmable LCD display shows which source is charging battery, charger status, voltage and amperage
Temperature sensor included with charger for more accurate battery charging
Output voltage: 12V nominal (8V min)
Output current: 40~50A
Output power: 775W
Dimensions: 172mm(w) x 242mm(d) x 74mm(h)
Weight: 1.85kg
5 year warranty
