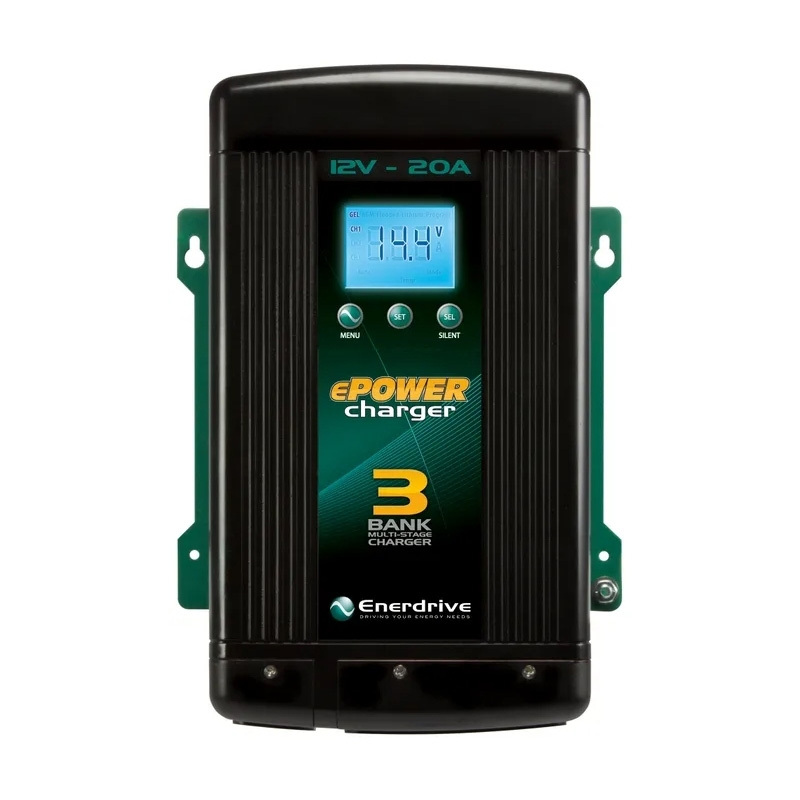

Enerdrive ePOWER Smart Charger 3-Output 12V/20A

Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

Benefits & Features*

Easy to use “set and select” menu along with scrolling charger status
Separate battery banks
Programmable battery banks
User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator)
Smart charging
Wide AC input range: Operates on both 110V / 60Hz and 240V / 50Hz.
LED display
Silent mode
Temperature sensor
Battery temperature sensor included with 3 meter cable
AC Input connection: IEC with supplied 1.2m power lead
DC Output connection: Heavy duty terminal (3 banks)
DC Output ground: Single heavy duty common ground stud
Dimensions: 206mm(w) x 295mm(l) x 86mm(h)
Weight: 2.4kg
Warranty: 5 Years

Specifications

Output Current: 20A
Output Voltage Range(Charging): 14.2 - 15.5V
AC Input Voltage: 90 - 265V
Frequency: 47 - 63 Hz
Charger Efficiency: >82%
Charging Control: Four Stage, Two Stage, Constant, Priority

*Click here for the User Manual

Full Specifications

CHARGER OUTPUT
Output Current (Maximum)	20A
OUTPUT VOLTAGE RANGE
Charge	14.2 – 15.5 V
Float	13.4 – 13.8 V
– Equalize	16.0 V
Charging Control	Four stages (Bulk/Absorption/Float/Maintenance)
	Two stages (Bulk/Absorption)
	Constant Power Supply (Program setting)
	Priority Battery Bank Charging
DC Output Bank	Three (1 fully independent, 2 common with diode isolation)
Selectable Battery Type	Gel, AGM, Flooded, Lithium, Program
Standby Current	< 2 mA
CHARGER INPUT
AC Input Voltage (Nominal)	90 to 265 VAC
AC Input Operating Range	207-265 Vac (2.0 A Max)90-125 Vac (3.8 A Max)
AC Input Frequency Range	47 – 63 Hz
Power Consumption	350W (Full Load)
Power Factor Correction	Yes
Charger Efficiency	> 82%
PROTECTION AND FEATURES
Reverse Polarity	Yes, (with user replaceable fuse/s)
Over Charge	Yes, unit shutdown
Over Temperature	Yes, unit de-rated and shutdown
Output Short Circuit	Yes, (with user replaceable fuse/s)
Cooling	Forced air ventilation (thermo controlled fan)
Temperature Setting	Hot, Normal, Cold (no sensor connected)
Battery Temp Sensor Port	RJ12 (standard battery temp. sensor supplied)
DISPLAY
LCD Display (with back light)	Charging status, Battery Voltage, Output Current & Fault Codes.
AC INPUT AND DC OUTPUT CONNECTION
AC Input Connection	IEC with Supplied 1.2M Power Lead
DC Output Connection	Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread
DC Output Ground	Single Heavy Duty Common Ground Stud
ENVIRONMENTAL AND OPERATING TEMPERATURE
Storage Range	-40° to 70° C
Operating Range	-20° to 60° C
Humidity	5-95%, relative humidity non-condensing
Ingress Protection	IP32 (Basic drip proof in vertical orientation)
BASE UNIT WEIGHT AND DIMENSIONS
Weight: (kg)	2.4
Dimension: (mm) L x W x H	295 x 206 x 86
Optional Accessories	Remote Digital Display / Enerdrive Part Number EN3REM
Regulatory Compliance	Complies with AS/NZS 60335.2.29 Including Australian deviations.

The Enerdrive ePOWER Smart Charger 3-Output 12V/20A is a fully automatic multistage 20A battery charger with the ability to charge 3 separate battery banks.

The isolated charging design where battery bank one is separate from battery bank two and three. You can now programme bank 1 with a different charge algorithm over banks 2 and 3.

The smart charging at its finest, the ePOWER 20A battery charger will regulate its output based on the loads connected to your battery banks.

And the convenient silent mode, disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
