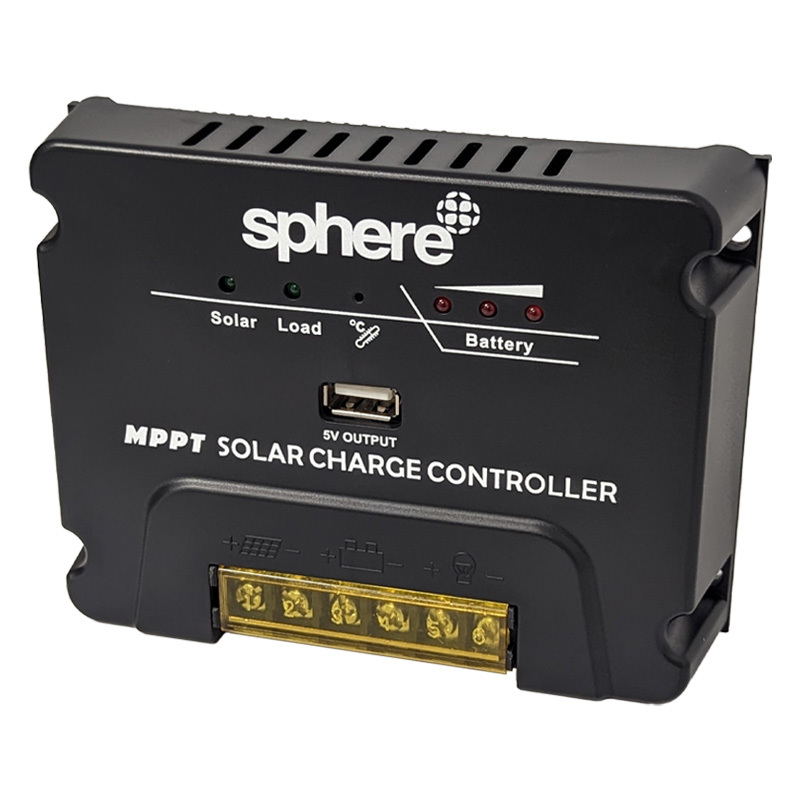

Sphere MPPT Solar Controller 12-24V/20A
PRICE
$ 71.99 NZD
or 4 payments of $18.00 with
Info
Benefits & Features
-
MPPT technology
-
Durable construction
-
Battery compatibility
-
Protection features
-
Low power consumption
-
Rated Charge Current: 20A
-
Rated Voltage: 12V/24V
-
MPPT Effciency: Max:99%
-
Over Load, Short Circuit Protection: ≥1 .5 rated current
-
No Load Current: ＜10mA
-
USB Output: 5V 1A
-
Working Temperature: -35℃~+55℃
-
Dimensions: 131mm(l) x 99.5mm(w) x 29.5mm(h)
-
Weight: 300g
The ultimate solution for optimal solar energy conversion, the Sphere MPPT Solar Controller 12-24V/20A has innovative MPPT technology allows for rapid tracking and capture of the maximum power point of multi-wave peaks, resulting in an impressive 94% energy conversion efficiency - higher than 75% of PWM solar controllers.
Constructed with tough ABS housing and upgraded aluminium heat sinks, this durable solar regulator is built to last. It's a great addition to any solar panel system and is compatible with a variety of lead acid deep cycle batteries and LiFePO4 batteries, thanks to its multi-stage properties that better support batteries.
MPPT Technology: Maximizes energy conversion efficiency up to 99% by tracking and capturing the maximum power point, significantly enhancing energy output.
Durable Construction: Built with ABS housing and upgraded aluminium heat sinks to ensure longevity and effective heat dissipation.
Battery Compatibility: Supports lead acid deep cycle and LiFePO4 batteries with multi-stage charging, ensuring optimal performance and battery protection.
Protection Features: Includes overload and short circuit protection, automatically protecting the system from damage.
Low Power Consumption: No-load current is less than 10mA, conserving power when not in use.
| Model # | https://www.coastrv.com.a |
| Barcode # | 202408018 |
| Brand | Sphere |
| Unit Of Measure | Ea |
| SKU | 202408018 |
