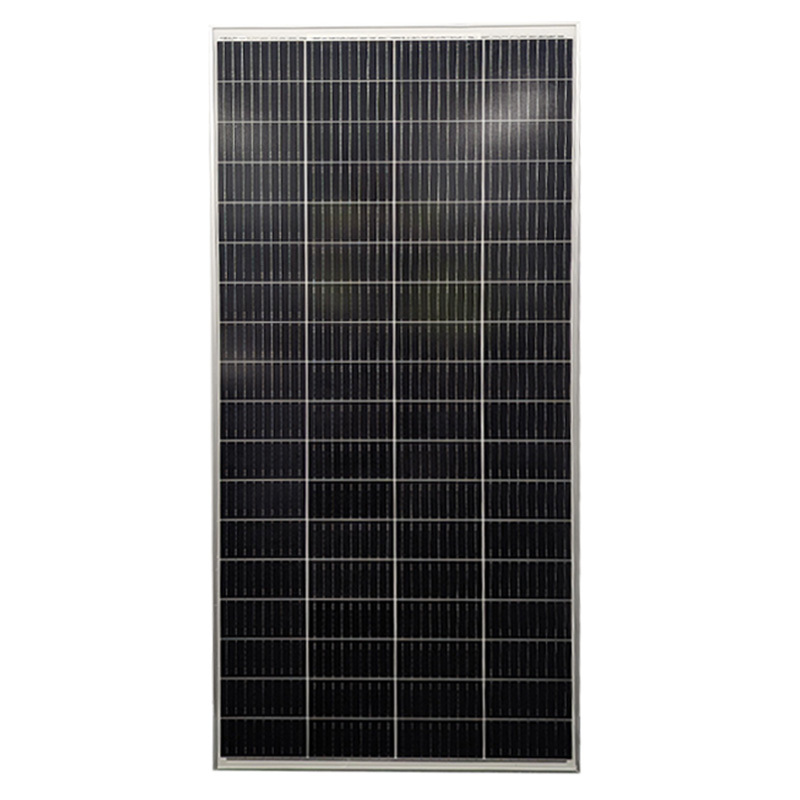

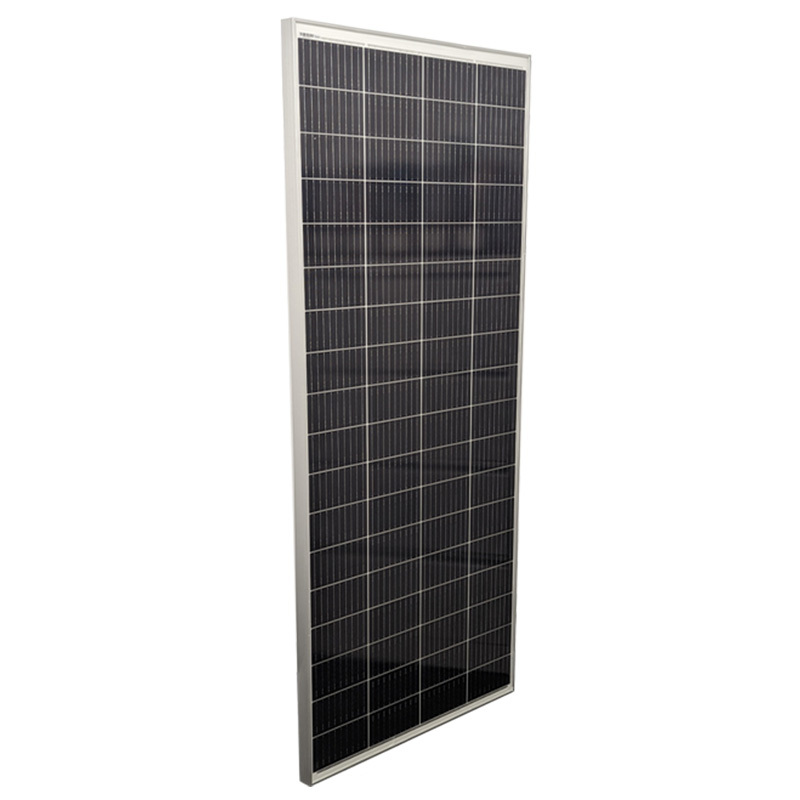

Sphere Twin Cell Solar Panel 200W Silver

Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

In Stock - Auckland and Christchurch
This product is ready to ship from our Christchurch branch expect delivery in 2 - 5 business days. Given the high demand over Easter & Anzac for Auckland shipping expect delivery 3 - 10 business days. Click & Collect orders are unavailable from our Auckland branch between Tuesday 22 April - Saturday 3 May. You can call our Hamilton and Palmerston Nth branches for up-to-date stock on hand.

Benefits & Features

Sphere Twin Cell Solar Technology for improved performance in partial shade
Improved cell efficiency enabling 200W from a 180W footprint
By-passed diodes to improve reliability and further minimize power drops caused by shade
An anodized aluminium frame to withstand rust with pre-drilled mounting holes for a versatile range of applications
Antireflective, high transparency tempered glass for durability
IP65-rated junction box provides complete protection against dust and water

Specifications
Electrical Performance

Standard Test Conditions: 1000W/M2,1.5AM,25
Peak Power Output (W): 200 W
Power Output Tolerance(%): 3%
Maximum Power Voltage (V): 20.6
Maximum Power Current (A): 9.71
Short Circuit Current(A): 9.85
Open Circuit Voltage(V): 24.1
Maximum System Voltage: 1000V/DC

Mechanical Performance

Junction Box Type: 0.9 m 4mm 2 solar cable fitted with MC 4 IP65
Number of Cells: 4 x 18 72 72pcs
Module Size: 670mm(w) x 1480mm(h) x 35/30/1.2mm(d)
Module Net Weight: 11kg

Temperature Coefficient

Working Temperature: -40 ~85°C
Power TK: -0.45%/°C
Open Circuit Voltage T: 0.33%/°C
Short Circuit Current T: 0.045%/°C
Test temperature: 25±2°C

Guarantee of power output

≦10 Years: ≧90%
≦25 Years: ≧80%
Material Warranty - 12 Months

The innovative Sphere Twin Cell Solar Panel utilises twin cell technology which improves performance and efficiency even when your solar panel is in partial shade.

Sphere Twin Cell Solar Panels are the best solution for tackling the common issue of partial shading that can drastically reduce the output of conventional solar panels. With their unique parallel design, each side of the panel functions independently, ensuring consistent power output even when there is partial shading.

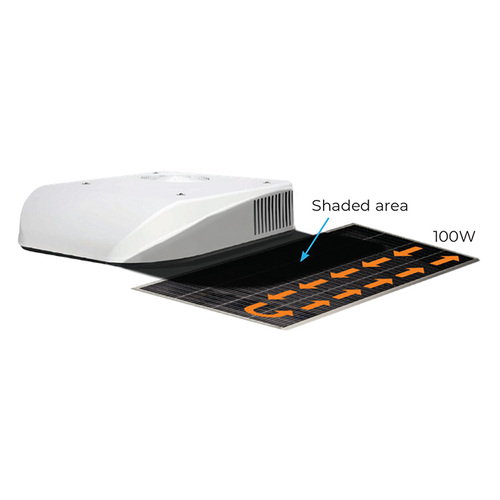

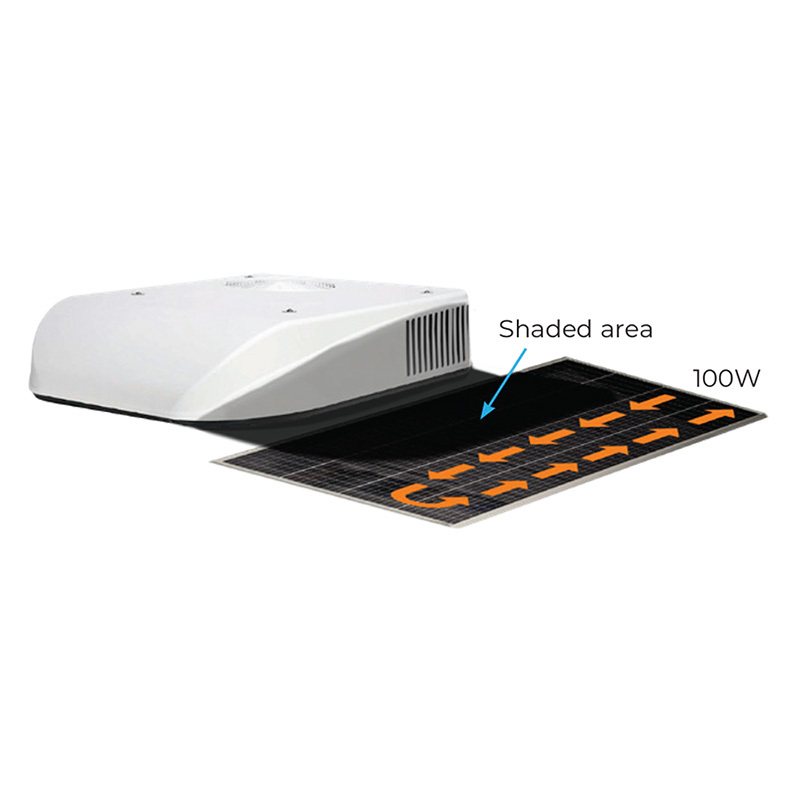

Partial shading caused by rooftop-mounted accessories such as air conditioners, roof vents and satellites can result in severe bottlenecks for conventional solar panels. When even a small section of a traditional panel is covered by shade, a blockage is created that drastically reduces overall output.

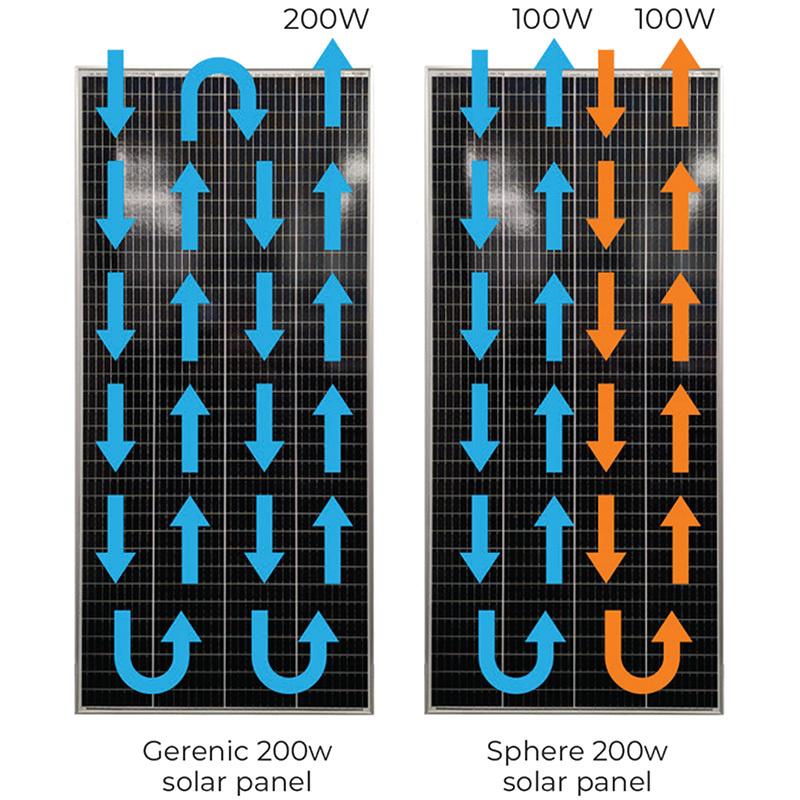

Sphere Twin Cell Technology helps reduce the impact of partial shading by allowing a single large solar panel to operate as if it were two smaller panels with isolated circuit paths. This unique parallel design allows each side of the panel to function independently from the other. When one half of a panel is covered by shade, the other will still perform at full capacity. Where partial shading will have already stopped traditional mono-crystalline panels from providing vital power, Sphere Solar Panels with Twin Cell Technology will keep on charging.
