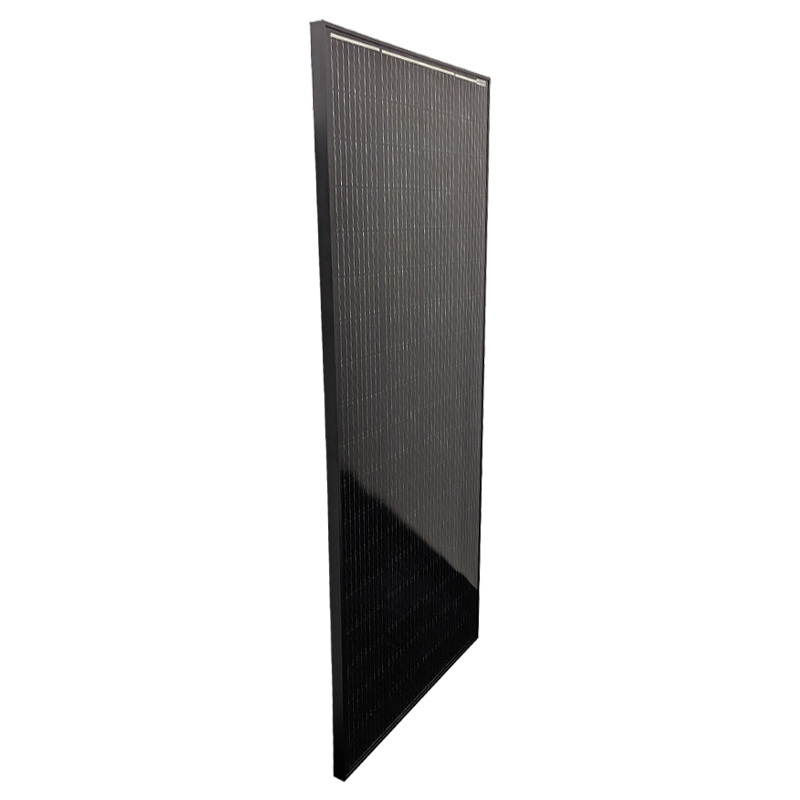

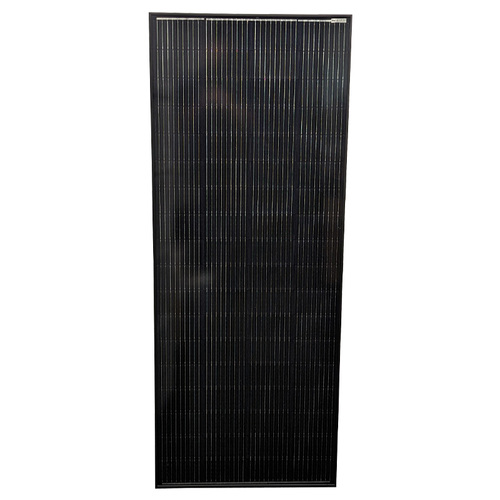

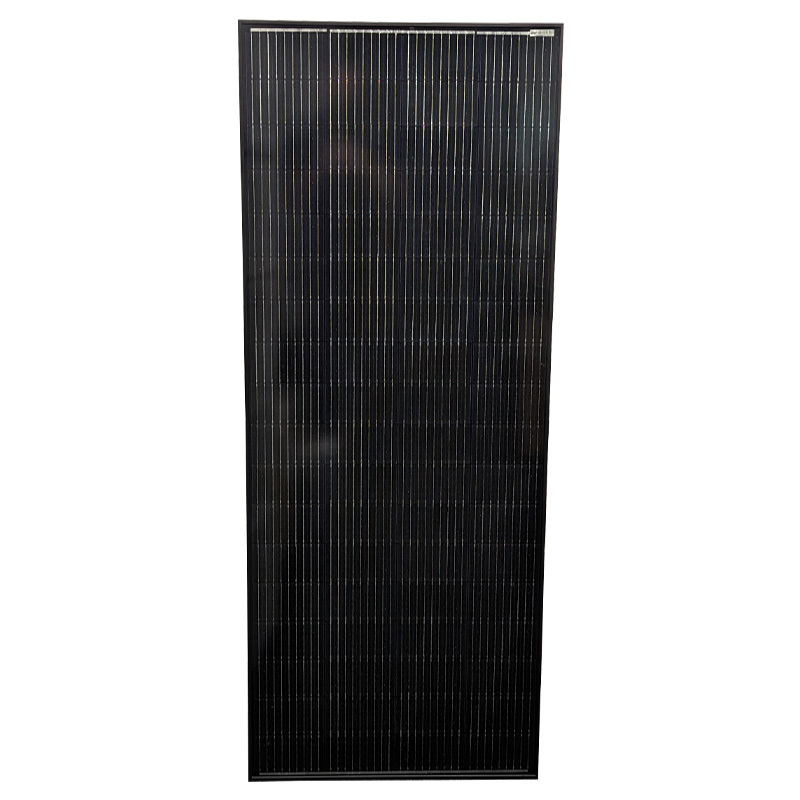

Sphere Twin Cell Solar Panel 200W Black

Benefits & Features

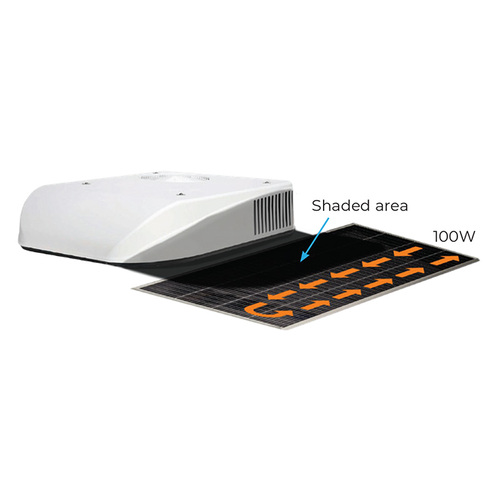

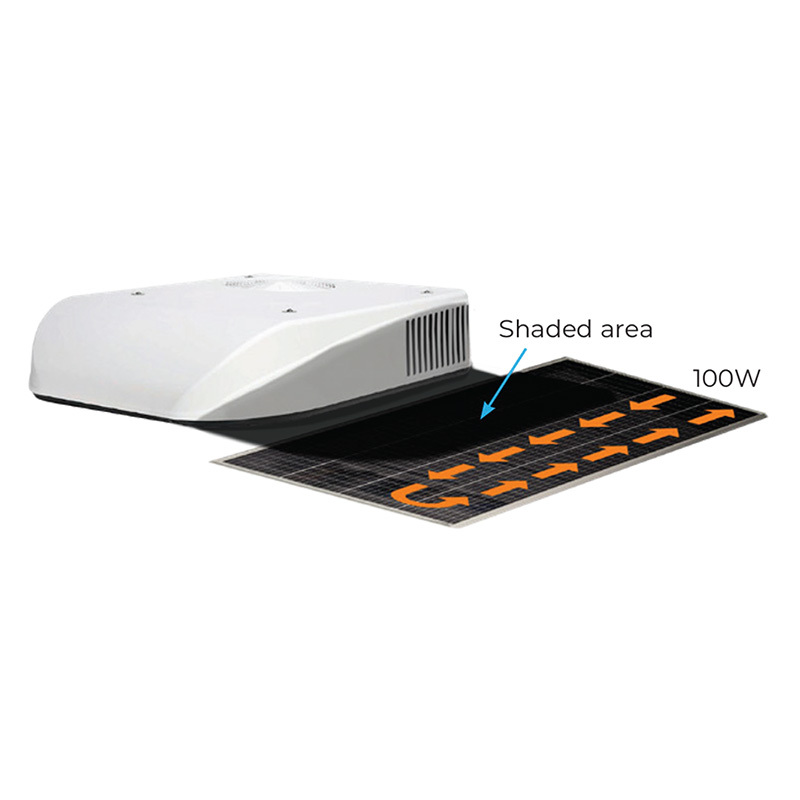

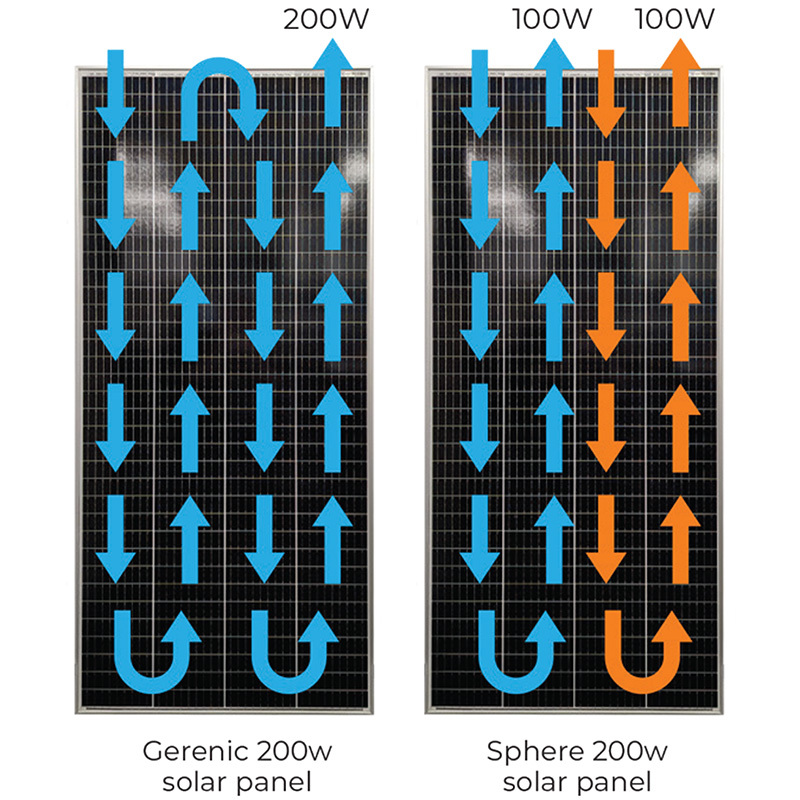

• Sphere Twin Cell Solar Technology for improved performance in partial shade

• Black frame and backing for a modern and stylish look

• Provides a sleek and elegant addition to any RV or caravan design

• By-passed diodes to improve reliability and further minimize power drops caused by shade

• Antireflective, high transparency tempered glass for durability

• IP65 rated junction box provides complete protection against dust and water

Specifications
Electrical Performance

• Standard Test Conditions: 1000W/M2,1.5AM,25

• Peak Power Output (W): 200 W

• Power Output Tolerance(%): 3%

• Maximum Power Voltage (V): 20.6

• Maximum Power Current (A): 9.71

• Short Circuit Current(A): 9.85

• Open Circuit Voltage(V): 24.1

• Maximum System Voltage: 1000V/DC

Mechanical Performance

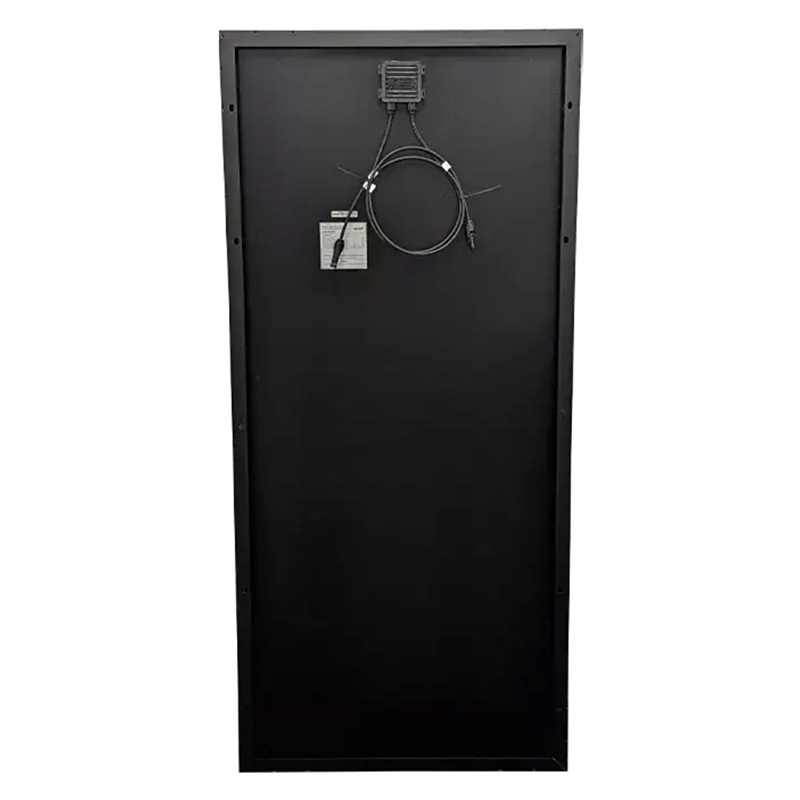

• Junction Box Type: 0.9 m 4mm 2 solar cable fitted with MC 4 IP65

• Number of Cells: 4 x 18 72 72pcs

• Module Size: 670mm(w) x 1480mm(h) x 35mm(d)

• Module Net Weight: 11kg

Temperature Coefficient

• Working Temperature: -40 ~85°C

• Power TK: -0.45%/°C

• Open Circuit Voltage T: 0.33%/°C

• Short Circuit Current T: 0.045%/°C

• Test temperature: 25±2°C

Guarantee of power output

• ≦10 Years: ≧90%

• ≦25 Years: ≧80%

• Material Warranty - 12 Months
