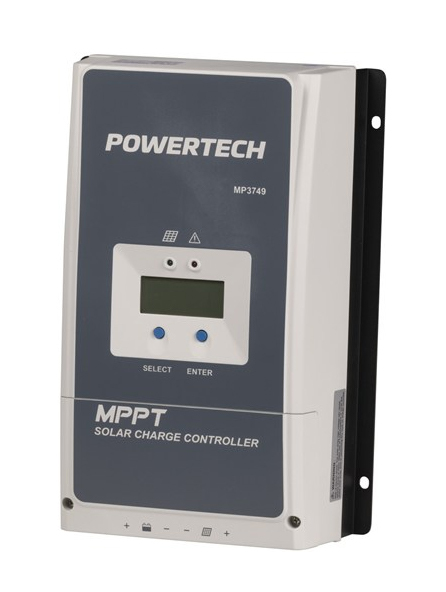

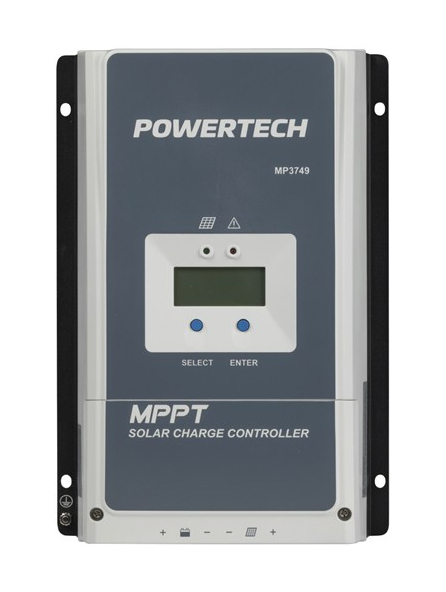

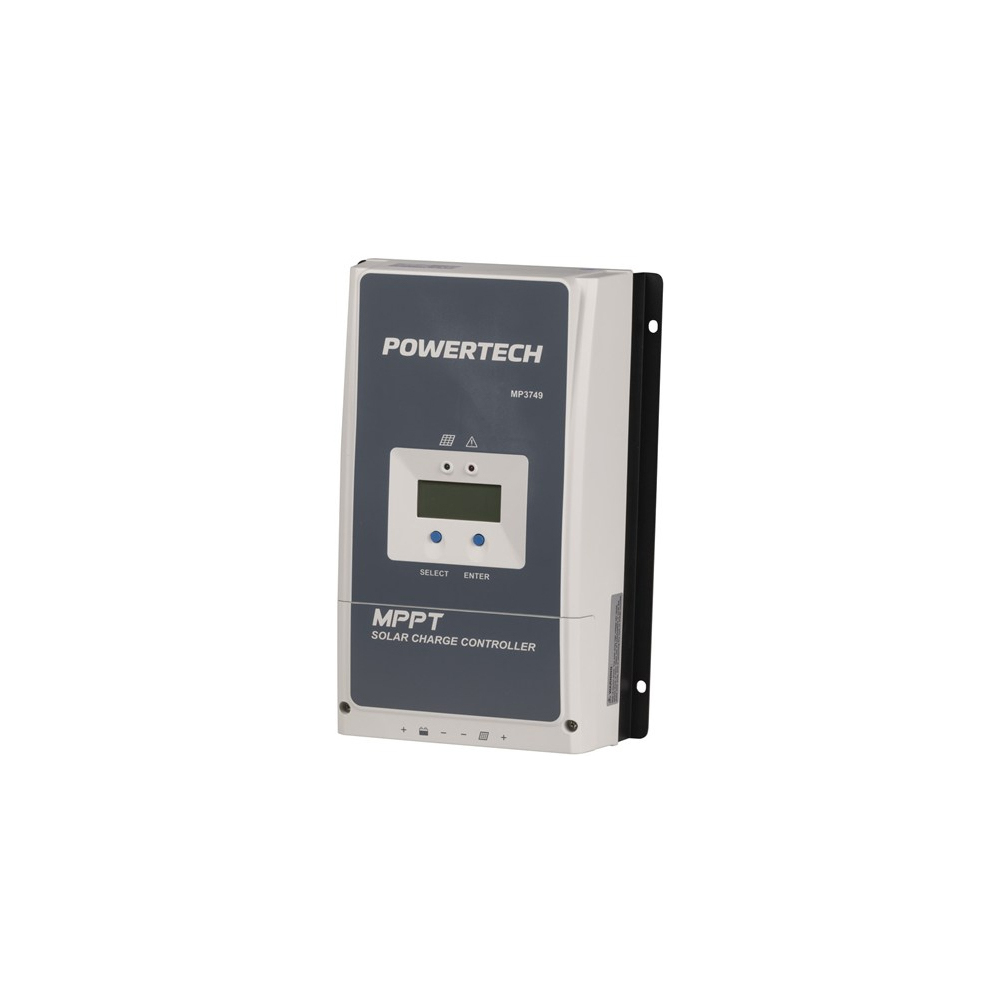

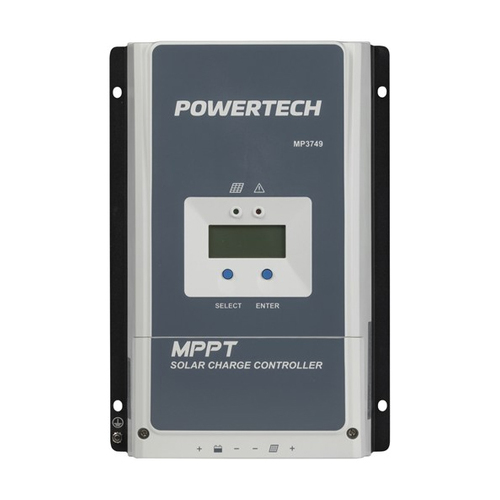

Powertech V2 MPPT Solar Controller Lithium/Lead Acid 12-24V/60A

Uses Maximum Power Point Tracking (MPPT) for maximum efficiency and charge rate. Able to charge lead-acid (sealed, gel or flooded) or lithium battery banks between 8V to 32V, and supports 12V solar arrays up to 750W or 24VDC arrays up to 1500W.

It features bulk, constant and float charge stages for rapid, efficient and safe battery charging, with feedback on charge status, current, voltages, etc. shown on the LCD screen.

Built into a durable case for permanent installation with heavy-duty screw terminals for cabling up to 6AWG.

Benefits & Features*

• Advanced MPPT control technology

• Real-time energy statistics function

• High tracking and conversion efficiency

• Supports Sealed, Gel or flooded lead acid and Lithium batteries

• 3-stage intelligent charging

• Multiple load work modes

• Extensive electronic protection

• Backlit LCD display

• RS485 communication

• Common negative grounding

• Charge Controller Technology: Maximum Power Point Tracking (MPPT)

• Max Solar Panel Array: 750W, 1500W

• Compatible Battery Bank Voltages 12 / 24VDC Selectable

• Input Voltage 16 - 100VDC

• Dimensions: 340mm(w) x 232mm(h) x 105.2mm(d)

• Weight : 3.5kg

*Click here for the manual
