Powertech V2 MPPT Solar Controller Lithium/Lead Acid 12-24V/30A

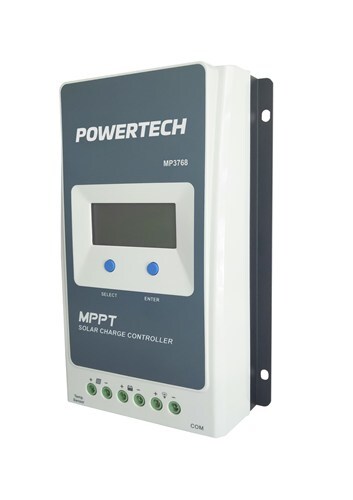

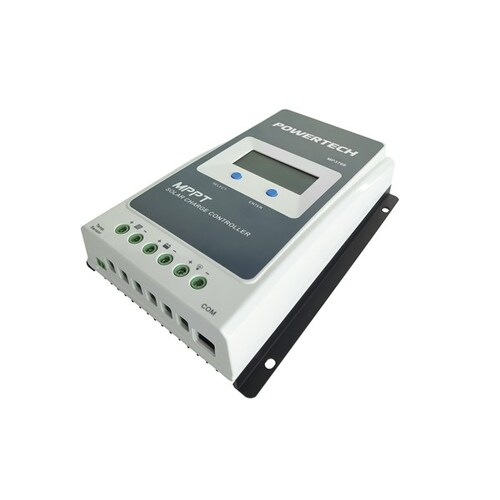

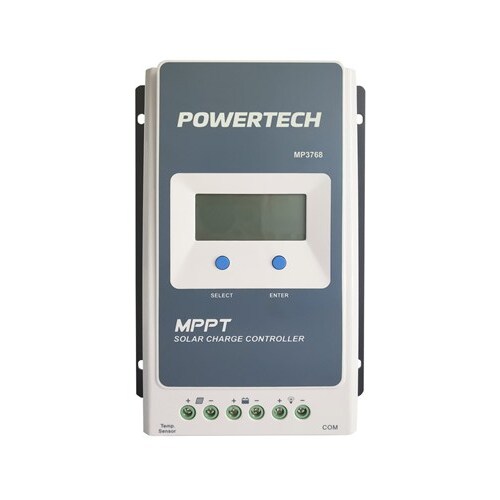

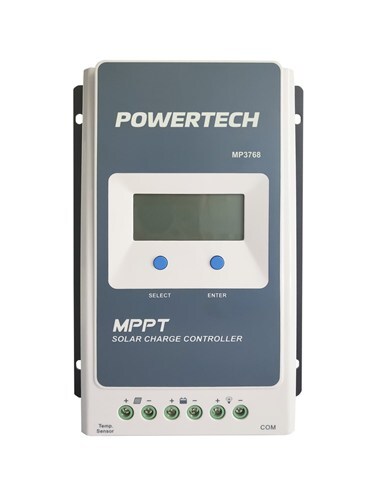

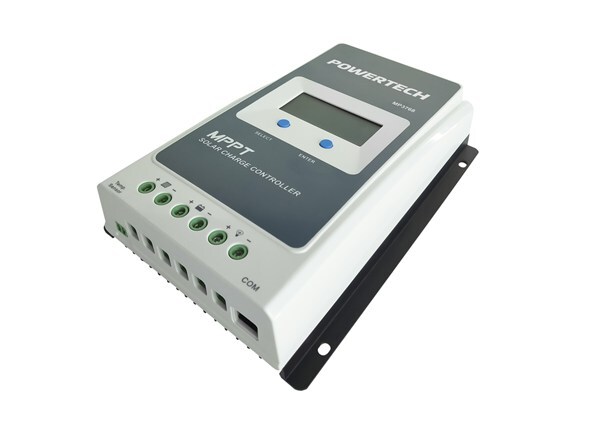

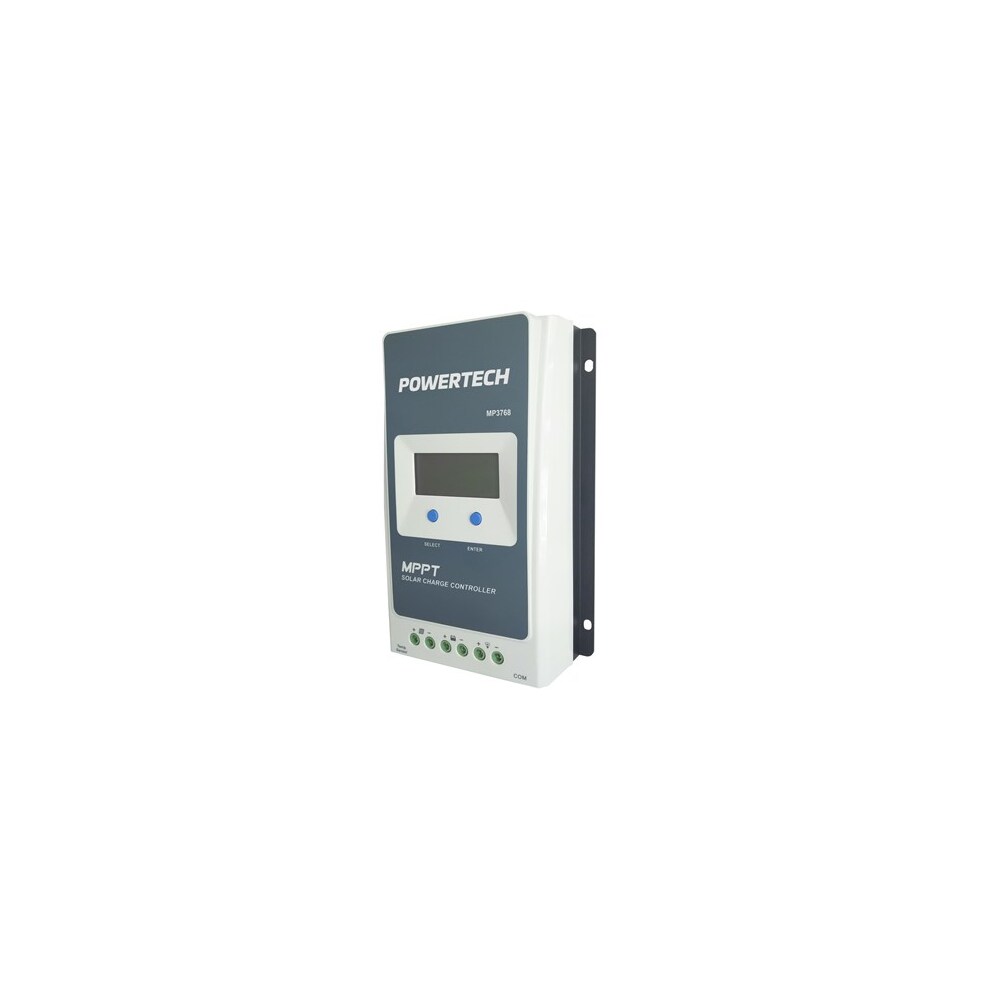

This intelligent compact charger uses Maximum Power Point Tracking (MPPT) for maximum efficiency and charge rate. It can charge 12V or 24V lead acid (sealed, gel, or flooded) or 12V lithium battery banks, and supports 12V solar arrays up to 390W or 24VDC arrays up to 780W.

It features three stage charging including constant voltage charging and diplays real-time feedback on battery voltage, load voltage, PV voltage, time, etc.

The fanless design is built into a durable case for permanent installation with heavy-duty screw terminals for cabling up to 6AWG. Safety features include over-voltage, low-voltage protection, reverse connection, short-circuit, over-current, and over-temperature protection.

Benefits & Features*

• Can be used on both lead acid & lithium batteries

• Intelligent and optimum MPPT charging algorithm

• 3-stage charging

• Displays real-time energy stats, operational and fault message

• Temperature sensor input for battery charging compensation

• Low-voltage disconnect/reconnect

• WiFi support (module sold separately)

• Charge Controller Technology: Maximum Power Point Tracking (MPPT)

• Max PV Open Circuit Voltage: 100V

• Max Charging Current: 30A

• Max Solar Panel Array: 390W, 780W

• Dimensions: 164mm(w) x 228mm(h) x 55mm(d)

• Weight : 1.26kg

*Click here for the manual
