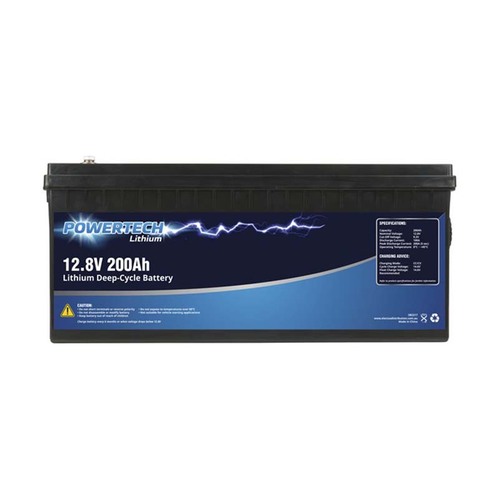

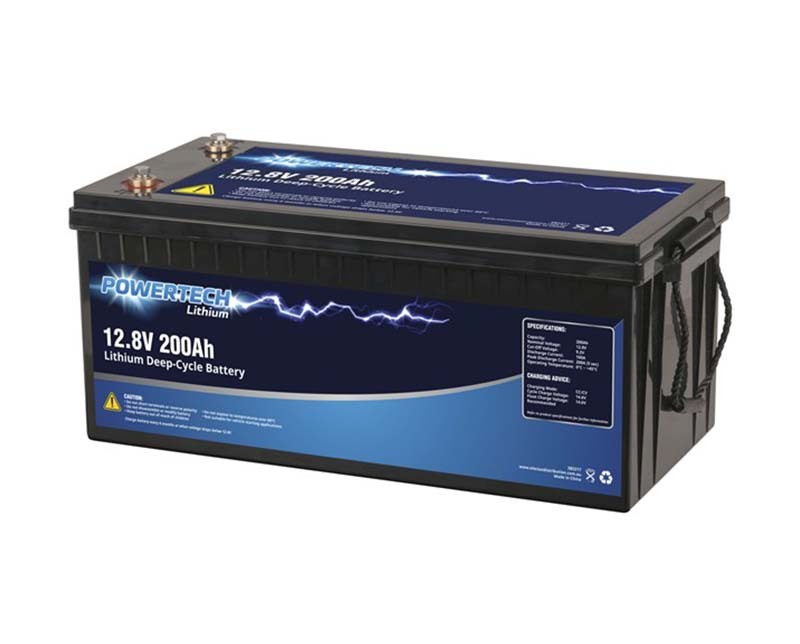

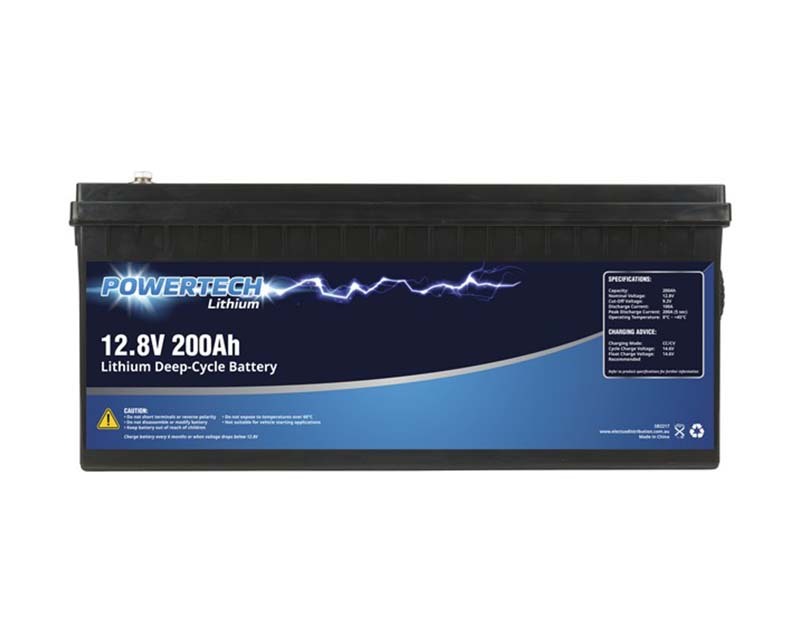

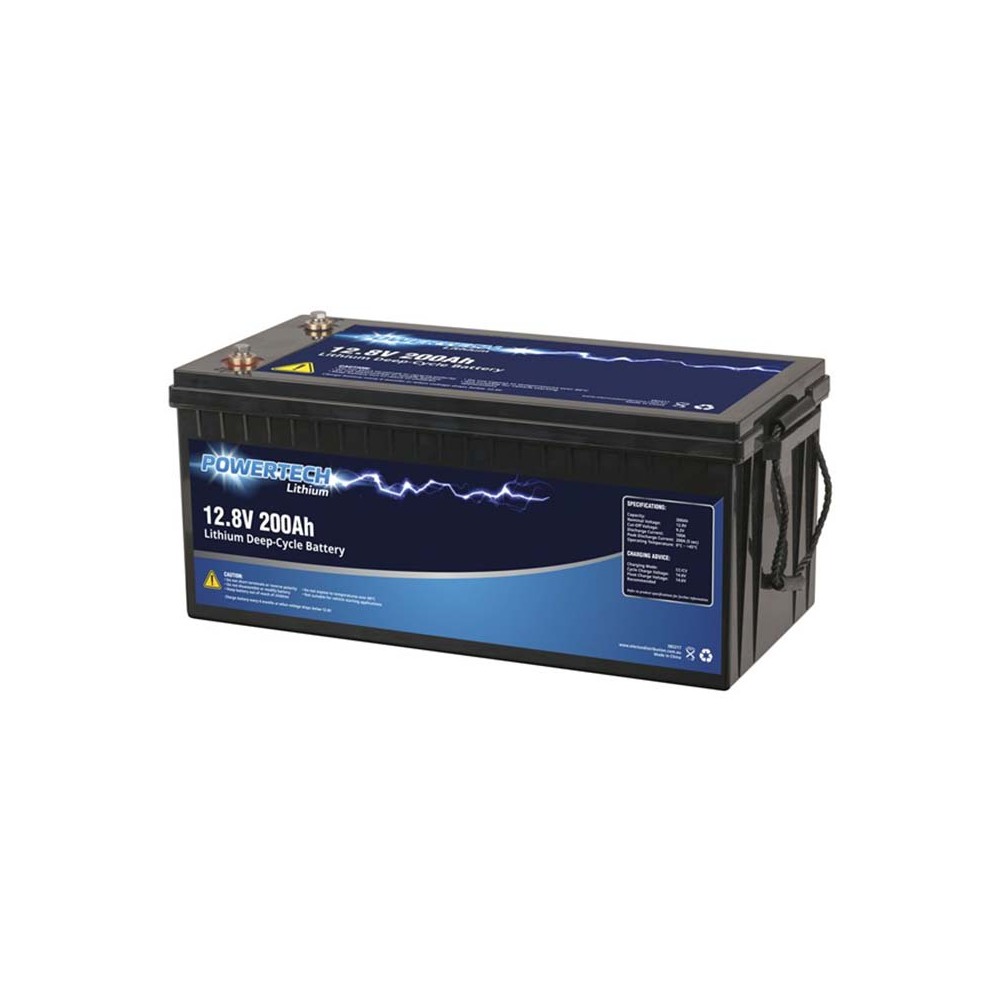

Powertech Lithium Battery 12.8V/200AH

The Powertech Lithium Battery is an advanced, lightweight and reliable solution. LiFePO4 batteries are lighter and have up to ten times the battery cycle life over lead acid batteries. LiFePO4 batteries are internally different to lead acid batteries due to the regular prismatic LiFePO4 cells.

Featuring internal battery management system (BMS), all cells are uniformly charged and discharged. With short circuit, over current, and reverse polarity protection, this battery is safer than a lead acid battery that is unprotected and can discharge rapidly under short circuit conditions, causing fire and damage. The internal BMS limits discharge and manages cut-off voltage to further protect the internal cells.

This 200Ah model can provide continuous current up to 100A, with peaks of up to 150A. It is perfect for portable power and an ideal replacement of similar capacity lead acid/AGM battery.

Benefits & Features

• LiFePO4 battery

• Weighs less than half of its lead acid counterpart

• Saving on weight can improve boat or vehicle performance

• Robust LiFePO4 cells

• Excellent life span

• Internal battery management system (BMS)

• Protection: Short circuit, over current and reverse polarity

• Dimensions: 240mm(w) x 220mm(h) x 520mm(l)

• Weight: 20kg

Specifications

• Service Life: 10yrs

• Cycle Life: 1500+ cycles

• Nominal Voltage: 12.8V

• Cut-Off Voltage: 9.2V approx.

• Charge Type: Constant Current / Constant Voltage

• Normal Current: 100A (150A 10s Max)

• Internal Cells: Prismatic LiFePO4

• Battery Watt Hour Rating (Required for Lithium Batteries): 2560.00Wh

• Battery Chemical Composition: Lithium Ferrous Phosphate (LiFePO4)

• Battery Peak Current: 100.00A

• Amp Hour Rating: 200.00Ah

• 20 Hour Capacity: 200.00Ah
