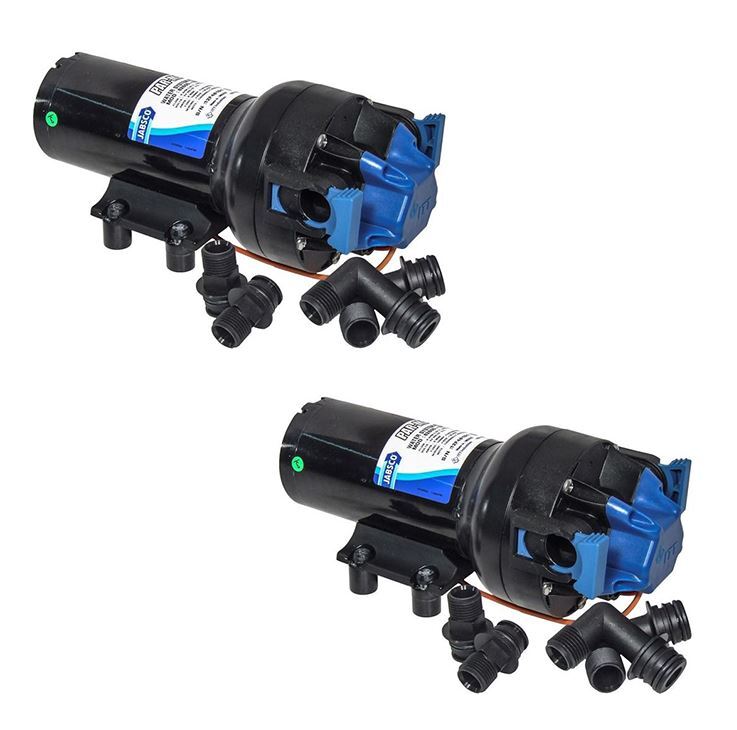

Jabsco Water Pressure System Pump 40 PSI/22 LPM

The Jabsco Water Pressure System Pump is a quiet operating pump designed for smooth flow and consistent pressure.

Designed with a multi-diaphragm and rubber mounts to reduce vibration. The pump is self-priming and has the ability to run dry without damage. There is a shut-off pressure of 40PSI and open flow of 22 LPM. Includes port fittings.

Benefits & Features

• Multi-diaphragm design

• Self-priming to 3m vertical lift and run dry ability

• Noise reducing rubber feet to minimise vibration

• Comes with snap-in ports for hose or Hep20 connectors

• ISO 8846 Marine (ignition protection)

• Connections: For 22mm (3/4”) bore hose or Hep20 push-fit connectors HD26B/22W

• Fuse Size: 20A (12V) , 10A (24V)

• Output: 22LPM (6 GPM) open flow

• Pressure Switch: Cuts in 25PSI (1.7bar) - Cuts out 40PSI (2.8bar)

• Dimensions: 270mm(l) x 129mm(w) x 111mm(h)

• Actual Weight: 4.3kg

• Voltage: Choose the Voltage from the dropdown menu
