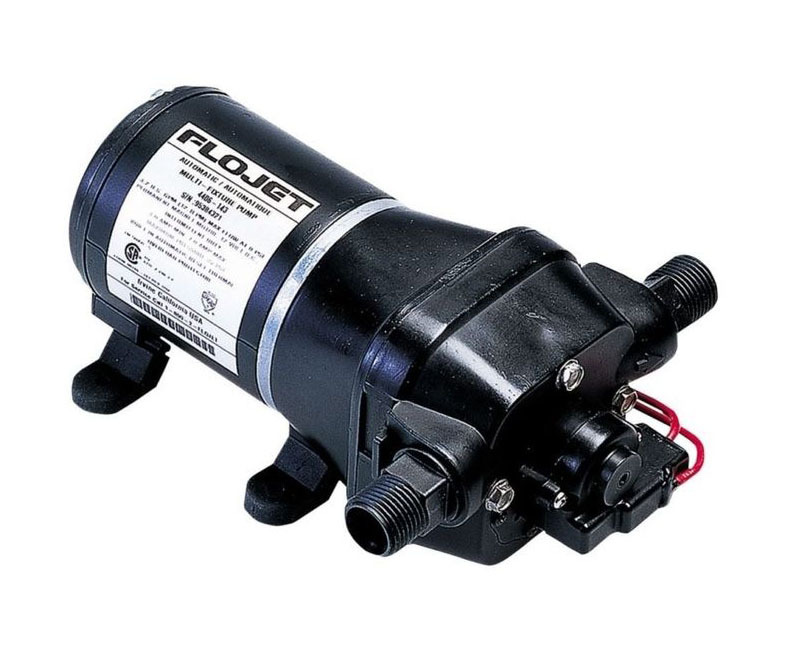

Flojet 4406 Series Quad Pump 12V - 35 PSI/12.5 LPM (22 PSI Cut In)

The 4406 Series Quad Pump 12V - 35 PSI/12.5 LPM (22 PSI Cut In) is a water pressure system that is ideal for supplying water for essential motorhome, caravan and boat amenities such as sinks, showers and toilets as it is energy efficient and has low vibration noise.

This quad pump produces a smooth water flow for up to four fixtures and has a pulsation eliminator that enables the pump to work independently without an accumulator tank. It features built-in thermal protection that protects the motor from overheating and will not be damaged if it runs dry.


Benefits & Features

• Automatic water system pump with internal bypass valve

• Self-priming up to 6ft suction lift

• Pump can run dry without damage

• Soft rubber mounts minimise vibration noise

• Smooth operation without accumulator tank

• Built-in bypass valve eliminates need for accumulator tank*

• 4 chamber diaphragm design

• Removable port to hose connectors

• 1/2″ male BSP threaded inlet and outlet connectors

• 1/2″ barbed straight and elbow connectors

• IAPMO and CSA listed

• Motor: permanent magnet, ball bearing

• Voltage: 12V DC

• Amp draw @ 10psi (0.7 bar): 3.9A

• Flow rate: 3.3 GPM (12.5 LPM)

• Pressure switch (max): 35 PSI (2.4 bar)

• Dimensions: 160mm(w) x 208mm(d) x 95mm(h)

• Weight: 1.8kg

*Do not install in a system with an accumulator tank as it will interfere with the internal bypass valve.


Click here for the Datasheet
