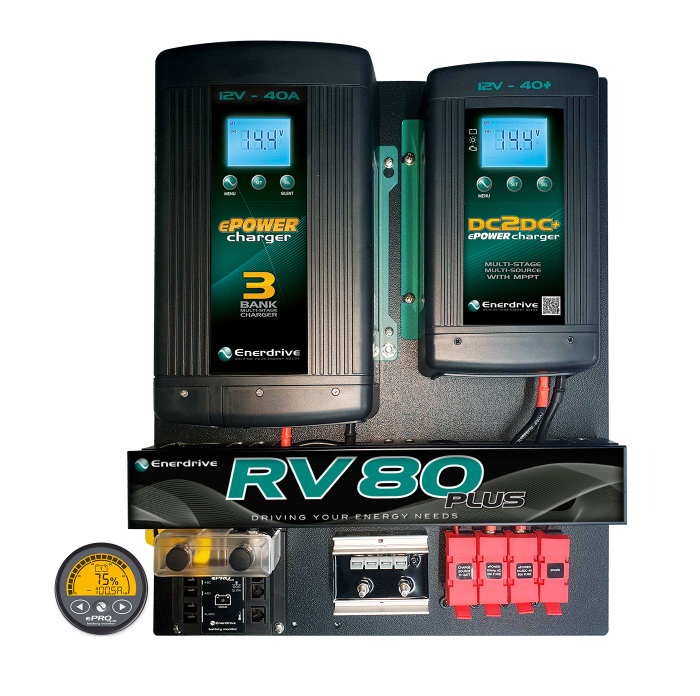

Enerdrive RV80 Plus RV Upgrade System

The Enerdrive RV80 Plus RV Upgrade System is a premium power solution ideal for a variety of applications including caravans, camper trailers, 4WD canopies, commercial work vehicles and more.

The kit features an AC 40A 230V charger, DC2DC 40+ charger, monitoring and low battery cutout. Items are mounted on a 12mm black plastic (water and rot resistant) board for easy mounting into the application. The system is designed for those with basic up to professional electrical knowledge looking to save time on installation. It is pre-wired by Enerdrive where possible for easier installation. Designed and constructed by Enerdrive, Enerdrive know the layout and wiring of your kit so any fault finding or any support needed Enerdrive has you covered.

Benefits & Features

• Suitable for lead acid batteries, AGM, Gel, lithium applications

• ePOWER AC 40Amp 230v charger

• ePOWER DC2DC 40+ charger (Vehicle/Solar)

• ePRO Plus 500A battery monitor with remote display, with audible and visual alarm

• ePOWER AC charger 50A output fuse connection

• ePOWER DC2DC 60A output fuse connection

• 50A load output fuse connection

• Low battery cutout (Programmed in ePRO Plus via Users Data Input)

• 12mm black plastic mounting board - water and rot resistant

• Dimensions: 480mm(l) x 400mm(w) x 100mm(d)

• 5 year warranty

Click here for the Electrical Drawing
