Enerdrive Complete Power System

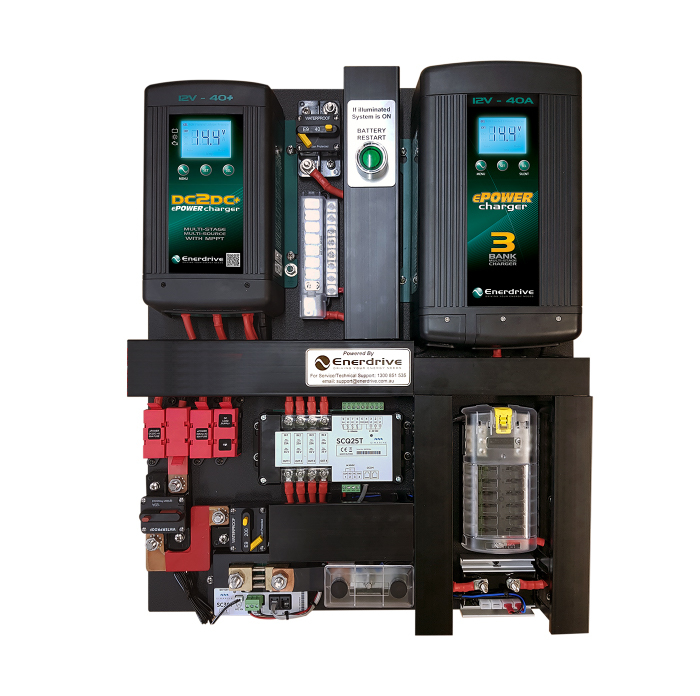

The Enerdrive Complete Power System is a DIY installation kit ideal for a variety of applications including caravans, camper trailers, 4WD canopies, commercial work vehicles and more.

The kit features AC and DC charging, monitoring, individual charge/load monitoring and low battery cutout. Items are mounted on a 12mm black plastic (water and rot resistant) board for easy mounting into the application. The system is designed for those with basic up to professional electrical knowledge looking to save time on installation. It is pre-wired by Enerdrive where possible for easier installation.

Designed and constructed by Enerdrive, Enerdrive know the layout and wiring of your kit so any fault finding or any support needed Enerdrive has you covered.

Benefits & Features

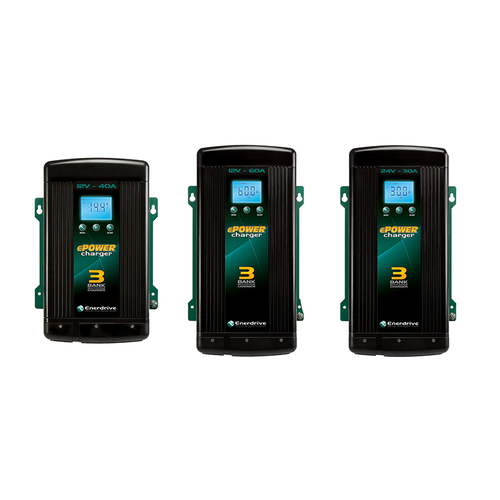

• ePOWER AC 40Amp 230v charger

• ePOWER DC2DC 40+ charger (Vehicle/Solar)

• Simarine pico LCD WIFI monitoring screen

• Simarine SC301 300A main battery shunt

• Simarine SCQ25T individual load/charge module

• 3 stud main negative bus bar

• 40A low battery cutout

• Main system circuit breaker 120A

• Inverter circuit breaker 200A

• Solar input positive circuit breaker 40A

• ePOWER DC2DC 60A output fuse connection

• ePOWER AC charger 50A output fuse connection

• 24hr critical load 4 circuit "Wedge" fuse block

• Main 12 circuit "Wedge" fuse block with negative bus and cover

• Battery restart switch (lithium batteries)

• 12mm black plastic mounting board - water and rot resistant

• Dimensions: 600mm(l) x 490mm(w) x 100mm(d)

• 5 year warranty

Click here for the Electrical Drawing
