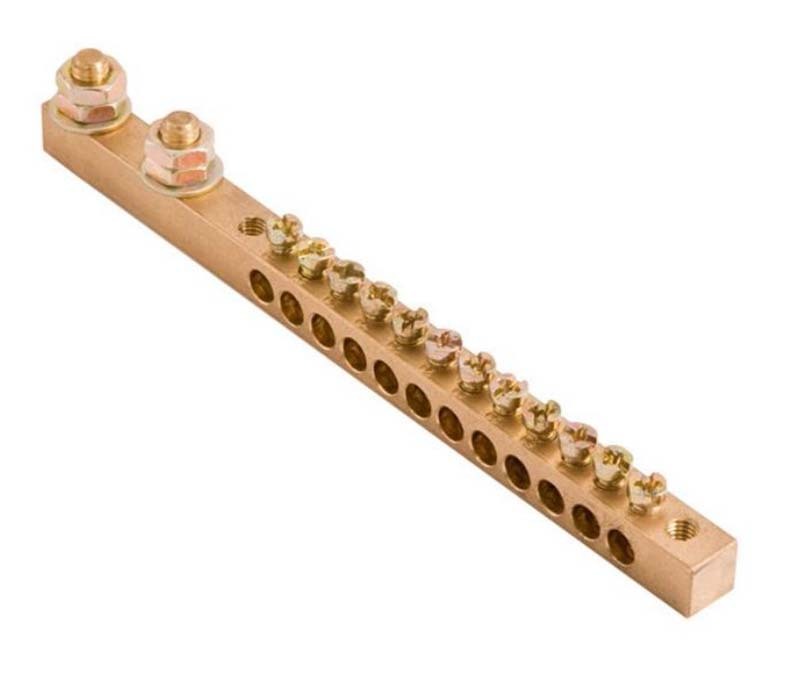

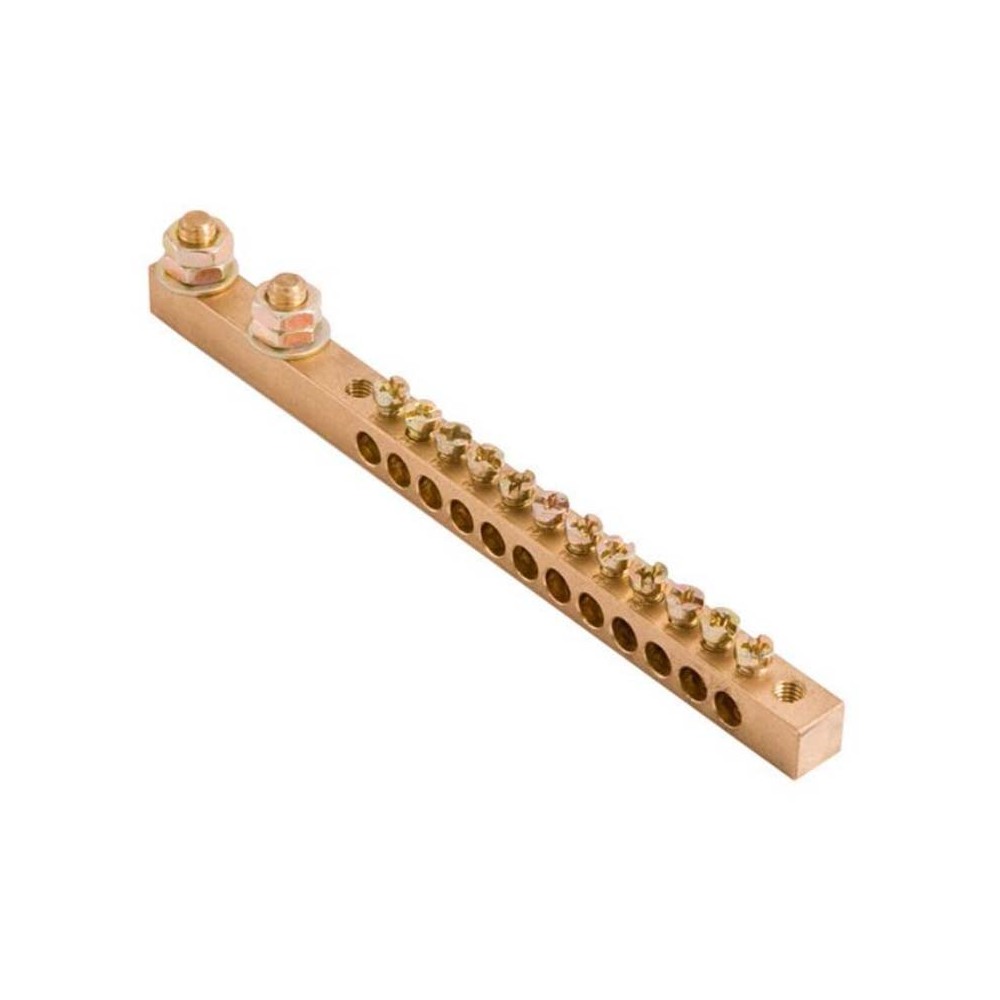

Earth and Neutral Bars Two Main Studs 6 Terminals

The Earth and Neutral Bars Two Main Studs is a switchboard electrical solution with two main M6 studs and a current rating of 63 amps. The terminals have one screw each and can fit 16mm² cable with chamfered opening for easy cable insertion.

Benefits & Features*

• Terminals fit 16mm² cable with chamfered opening for easy cable insertion

• Max Rating: 63A

• One screw per terminal

• Numbered terminals

• Two main M6 studs

• M5 mounting holes

• All edges chamfered

• RoHS compliant

• Number of Terminals: Choose the Number of Terminals from the dropdown menu

*Note: Specifications can change from time to time without notice. Cut-outs and construction should only be done with the products onsite.
