Earth and Neutral Bars One Main Studs 6 Terminals

PRICE
$ 13.40 NZD

or 4 payments of $3.35 with Info

WANT TO BECOME A RV PASS MEMBER? CLICK HERE TO REGISTER FOR FREE

Number of Terminals


Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

In stock with supplier
This product will be shipped from supplier. Expect delivery in 7 - 14 business days.

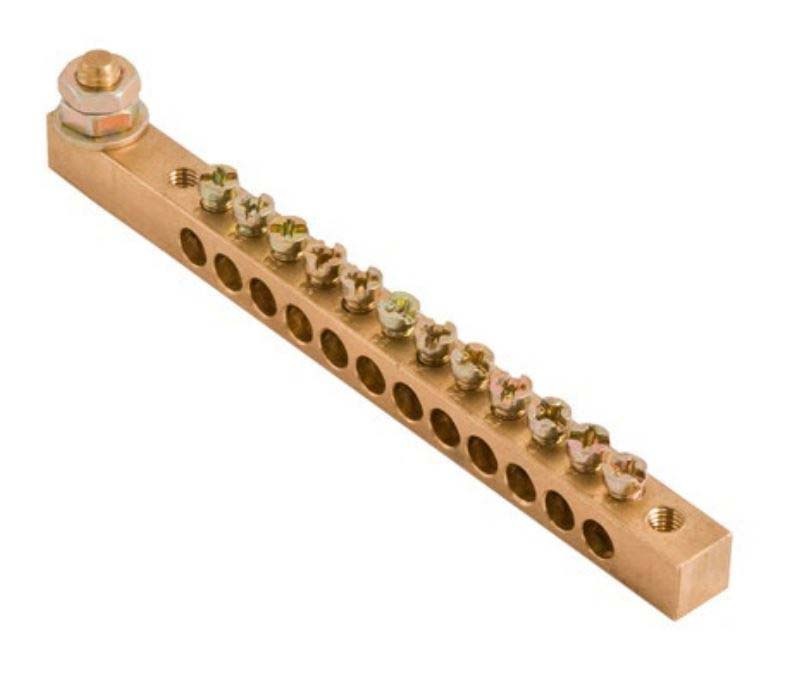

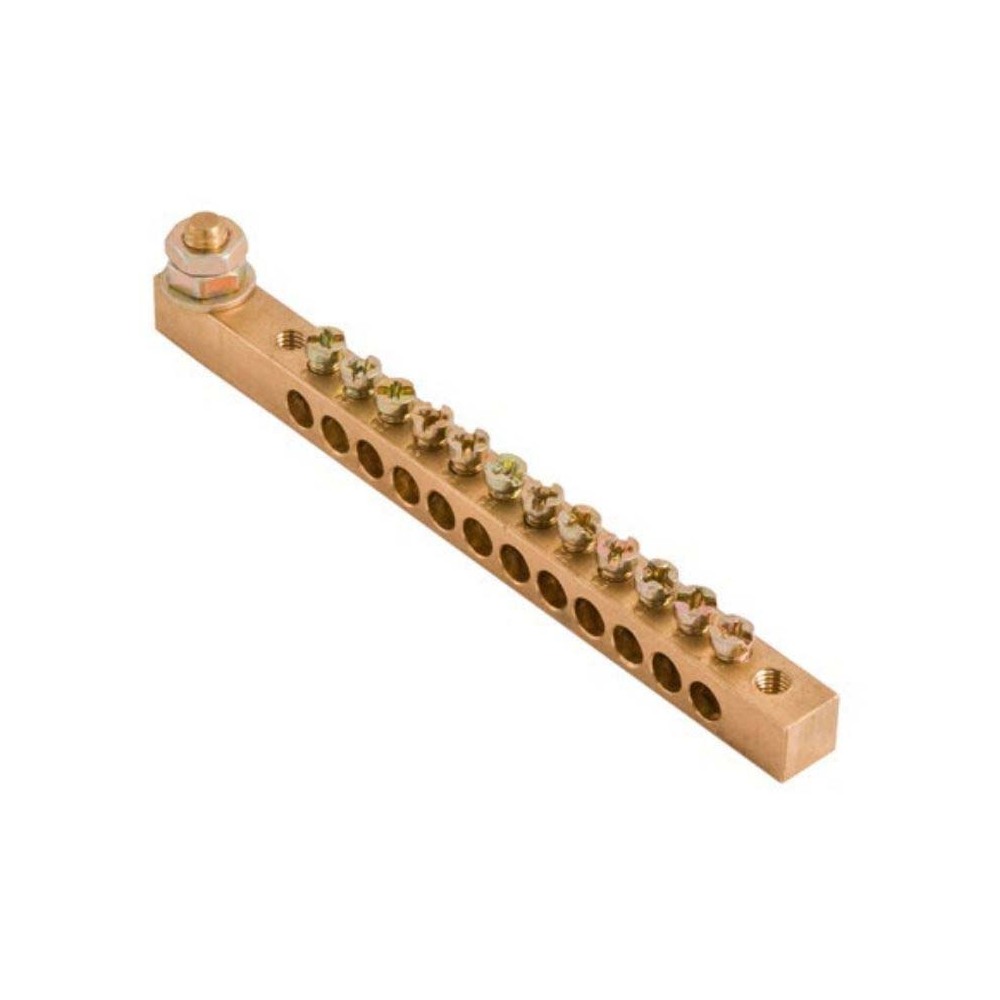

The Earth and Neutral Bars One Main Studs is a switchboard electrical solution with one main M6 stud and a current rating of 63 amps. The terminals have one screw each and can fit 16mm² cable with chamfered opening for easy cable insertion.


Benefits & Features*

  • Terminals fit 16mm² cable with chamfered opening for easy cable insertion

  • Max Rating: 63A

  • One screw per terminal

  • Numbered terminals

  • One main M6 stud

  • M5 mounting holes

  • All edges chamfered

  • RoHS compliant

  • Number of Terminals: Choose the Number of Terminals from the dropdown menu


*Note: Specifications can change from time to time without notice. Cut-outs and construction should only be done with the products onsite.



Barcode # 202109227
Brand Unbranded
SKU 202109227
