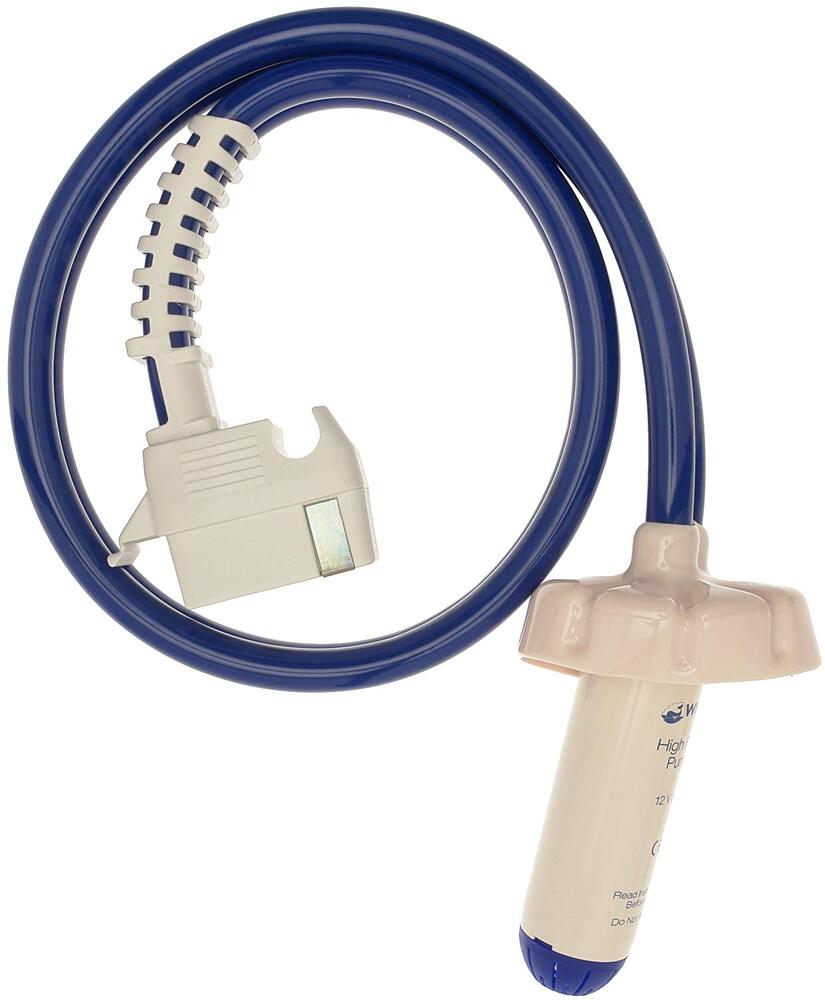

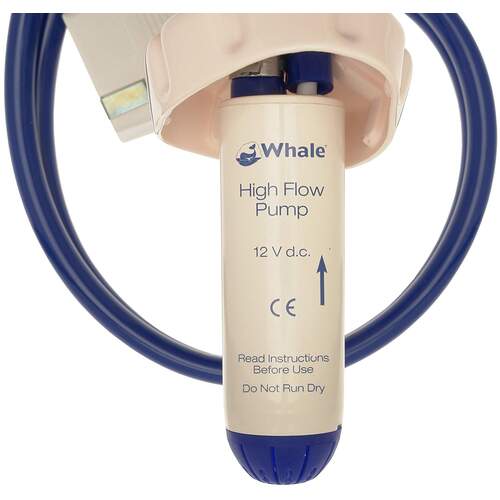

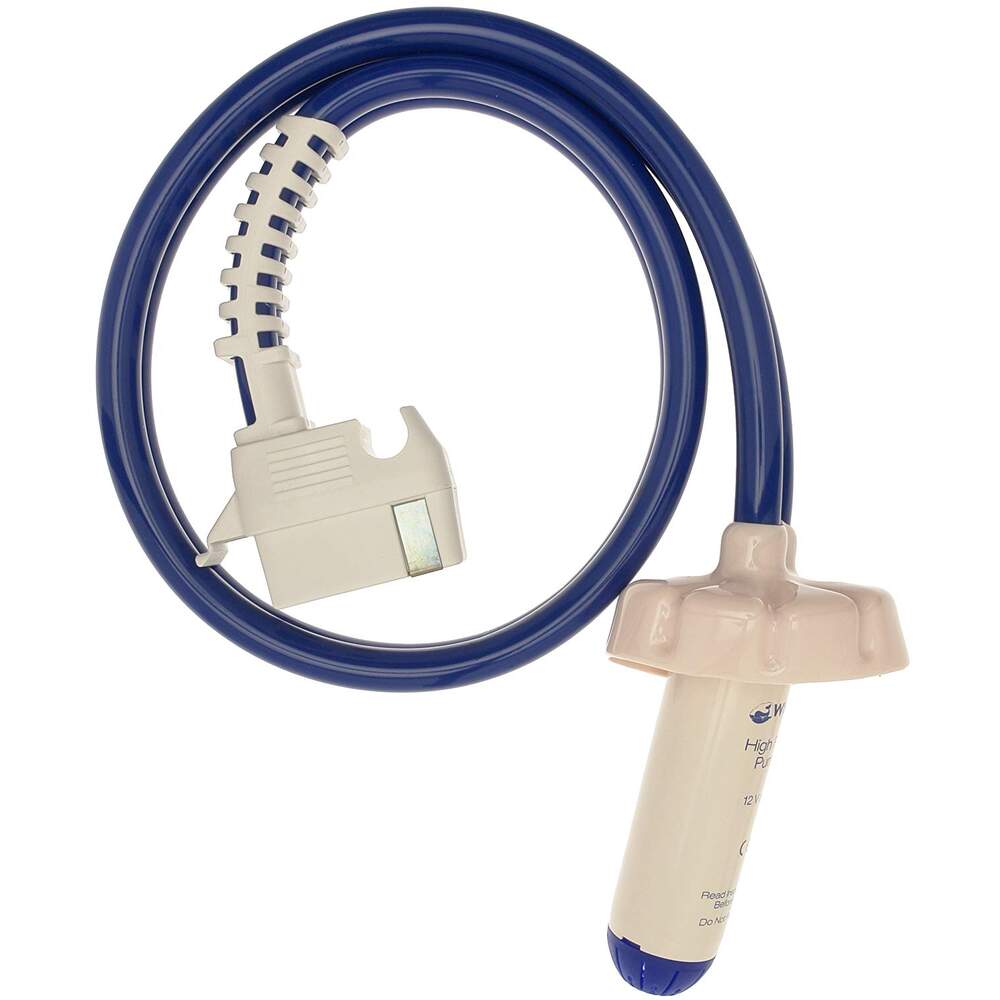

Whale Watermaster Submersible Pump Kit 12V

Benefits & Features

• Simplifies the connection between an outside water container into the caravan

• Top performance pump

• Suitable for microswitch or pressurised systems

• Choice of flow rate to suit either a simple one or two outlet system with two or more outlets including a shower

• Incorporates an anti air-locking pump

• Easily replaceable pump that can be removed and replaced if necessary

• Easy fit plug stays secure

To download the instruction manual click here

Specifications

• Voltage range: 9.5V d.c. to 14.5V d.c.

• Nominal Current: Operating 3.5 - 3.8 Amps

• Recommended Fuse Size: 5 Amp automotive

• Weight 0.5kg

• Materials

  • Pump Body: ABS Seals: Nitrile®

  • Strainer: Polypropylene

  • Impeller: Unfilled PP

  • Cable: PVC

  • Grease Seal: Nitrile®

  • Wire: PVC insulated copper

  • Hose: PVC

  • Plug: PBT

• Height - Flow Rate Per Minute / Current Draw

  • 0 m (0ft) - 15.8 ltrs / 3.8 amps

  • 1 m (3ft) - 14.8 ltrs / 3.7 amps

  • 3 m (9ft) - 12.8 ltrs / 3.5 amps

• Operating Temperature Range 3ºC to 40ºC

• Storage Temperature Range -30ºC to 60ºC
