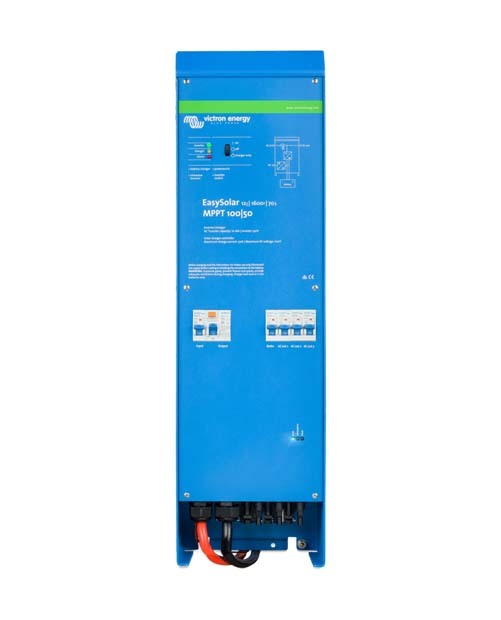

Victron Easy Solar Inverter Charger and Solar Controller 12V/1600VA

Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

In stock with supplier
This product will be shipped from supplier. Expect delivery in 7 - 14 business days.

Specifications

EasySolar 12/1600/70 Inverter/Charger
PowerControl / PowerAssist: Yes
Transfer Switch: 16A

Inverter

Input Voltage Range: 9.5 – 17V
‘Heavy Duty’ Output AC 0:
Output AC1, 2, 3: Output voltage: 230VAC ± 2% Frequency: 50Hz ± 0,1% (1)
Cont. Output Power at 25 °C (3): 1600VA / 1300W
Cont. Output Power at 40 °CL 1200W
Peak Power: 3000W
Maximum Efficiency: 92%
Zero-load Power: 8W
Zero-load Power in Search Mode: 2W

Charger

AC Input Input Voltage Range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Charge Voltage 'Absorption': 14.4 / 28.8V
Charge Voltage 'Float': 13.8 / 27.6V
Storage Mode: 13.2 / 26.4V
Charge Current House Battery (4): 70A
Battery Temperature Sensor: Yes
Programmable Relay (5): yes
Protection (2): a - g

Solar Charge Controller

Maximum Battery Current: 50A
Maximum PV Power, 6a,b): 700W
Maximum PV Open Circuit Voltage: 100V
Maximum Efficiency: 98%
Self-consumption: 10Ma
Charge Voltage 'Absorption', Default Setting: 14.4V
Charge Voltage 'Float', Default Setting: 13.8V
Charge Algorithm: Multi-stage adaptive
Temperature Compensation: -16mV / °C resp. -32mV / °C
Protection: a – g

The Victron Energy EasySolar is an excellent off the grid solar power solution integrating an MPPT solar charge controller, an inverter/charger and AC distribution all in one compact aluminium enclosure. The MPPT solar charge controller has outstanding conversion efficiency, an internal temperature sensor and adaptive three step charging. The Multiplus Compact is a true sine wave inverter and sophisticated battery charger with adaptive charge technology and a high-speed AC transfer switch.

Both the solar charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset. It is easy to install with minimum wiring. Up to three strings of PV panels can be connected with three sets of MC4 (PV-ST01) PV connectors.

Benefits & Features

All-in-one solar power solution
Solar charge controller: BlueSolar MPPT 100V / 50A
Inverter/charger: MultiPlus Compact 12V / 1600VA /70A
AC distribution: RCD (30mA/16A) and four AC outputs
PowerAssist technology protects the utility or generator supply from being overloaded
Unique solar application software
Protection: IP21
Battery-Connection: Battery cables of 1.5 meter
Three sets of MC4 (PV-ST01) PV connectors
230V AC-connection: G-ST18i connector
Weight: 11.7 kg
Dimensions: 745mm(h) x 214mm(w) x 110mm(d)
