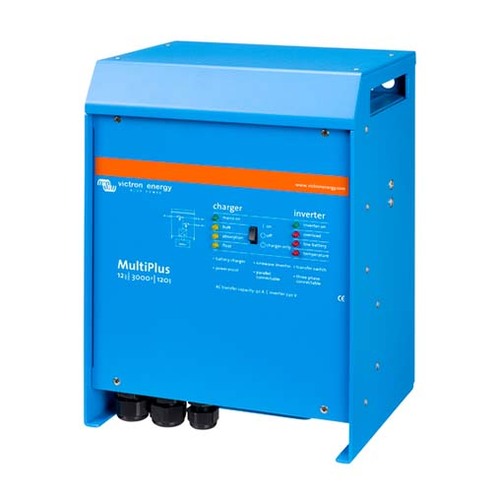

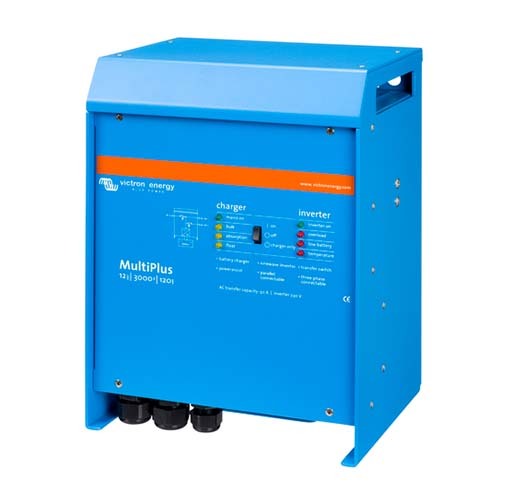

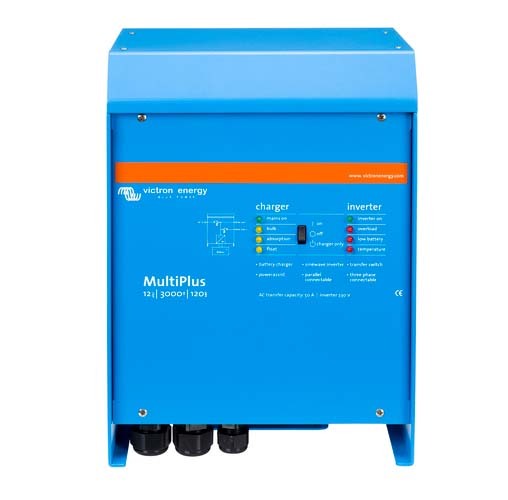

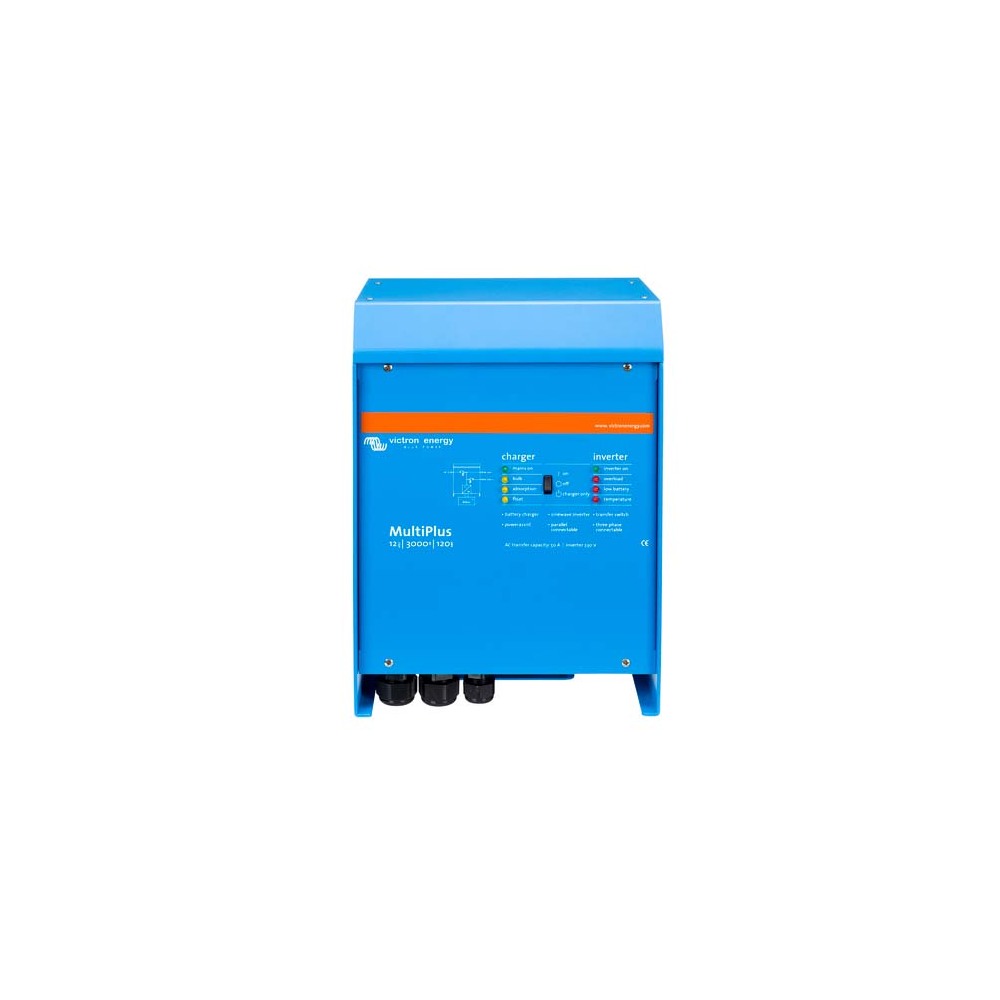

Victron Multiplus Inverter/Charger 12V/3000W/120-16A
Specifications
Multiplus 12/3000/120-16 230V
-
Power Control / Power Assist: Yes
-
AC Input: Input Voltage Range: 187-265 VAC , Input Frequency: 45-65Hz
-
Maximum Feed Through Current: 16 /50
-
Minimum AC Supply Current Capacity for PowerAssist (A): 2.3 / 5.3
Inverter
-
Input Voltage Range (V DC): 9.5 -17
-
Output (1): Output Voltage: 230 VAC ± 2% , Frequency: 50Hz ± 0,1%
-
Cont. Output Power at 25°C / 77°F (VA) (3): 3000
-
Cont. Output Power at 25°C / 77°F (W): 2400
-
Cont. Output Power at 40°C / 104°F (W): 220
-
Cont. Output Power at 65°C / 150°F (W): 1700
-
Peak Power (W): 6000
-
Maximum Efficiency (%): 93
-
Zero-load Power (W): 20
-
Zero-load Power in AES Mode (W): 15
-
Zero-load Power in Search Mode (W): 8
Charger
-
AC Input: Input Voltage Range: 187-265 VAC , Input Frequency: 45-65Hz , Power Factor: 1
-
Charge Voltage ‘Absorption’ (V DC): 14.4
-
Charge Voltage ‘Float’ (V DC): 13.8
-
Storage Mode (V DC): 13.2
-
Charge Current House Battery (A) (4): 120
-
Charge Current Starter Battery (A): 4 (12V and 24V models only)
-
Battery Temperature Sensor: Yes
General
-
Auxiliary Output: Max. 16A Switches off when no external AC source available
-
Programmable Relay (5): Yes
-
Protection (2): a –g
-
Common Characteristics: Operating temp: -40 to +60°C (-40 - 150°F) (fan assisted cooling) Humidity (non-condensing): max 95%
Enclosure
-
Material and Colour: Aluminium (Blue RAL 5012)
-
Protection: IP20, pollution degree 2, OVC3
-
Battery Connection: M8 bolts (2 plus and 2 minus connections)
-
230V AC –connections: Screw Terminals 13mm² (6 AWG)
-
Weight: 19kg
The Victron Multiplus Inverter/Charger 12V/3000W/120-16A is a multifunctional unit combining a powerful true sine wave inverter, an adaptive battery charger and a high-speed AC transfer switch in a single compact enclosure.
It features PowerAssist technology to prevent an overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
If a grid failure occurs or the shore or generator power is disconnected, there will be quick automatic activation of the inverter so electronics can continue to operate without disruption. Together with a GX device (e.g. Cerbo GX) the Multiplus and system or systems' can easily be monitored and controlled locally (LAN) or remotely via the free VRM app.
Benefits & Features*
-
Pure sine wave inverter
-
Hybrid PowerAssist technology
-
Uninterrupted AC power (UPS function)
-
Virtually unlimited power thanks to parallel operation
-
Remote monitoring and control via VRM app and free VRM portal website
-
Two AC outputs
-
Three phase capability
-
Split phase options
-
Power control dealing with limited generator, shore side and grid power
-
Four stage adaptive charger and dual bank battery charging
-
Voltage: 12V
-
3000W
-
120-16A
-
Weight: 19kg
-
Dimensions: 362mm(h) x 358mm(w) x 218mm(d)
-
Model: PMP122300001
*For further specifications please click the "Features" tab
Click here for the Multiplus Inverter Charger Manual
Click here for the Connecting Other Lithium Systems to Multis and Quattros Manual
Click here for the Diagram
Available for both iOS and Android devices
