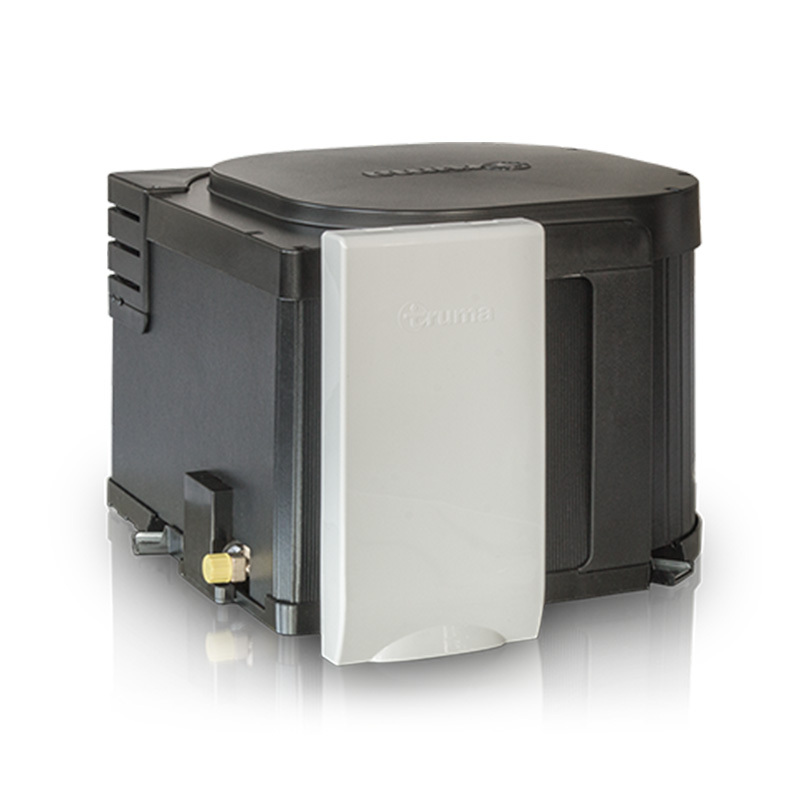

Truma UltraRapid Hot Water System 14L with Install Kit - Gas/240V

Showering, dishwashing, washing your hands - the Truma UltraRapid Hot Water System HWS provides a reliable supply of hot water in leisure vehicles.

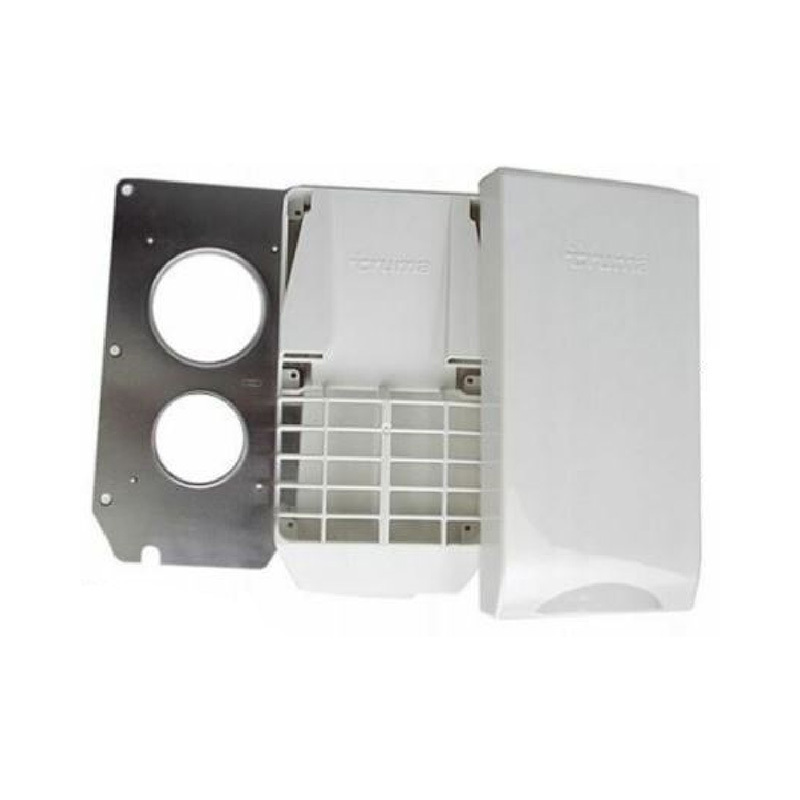

Truma has taken the development of the well-tried Boiler further and adapted it to the continuously increasing demands of the standards. This Truma UltraRapid HWS impresses with increased heating power, and compact dimensions. The design features a cream cowl.

Benefits & Features**

• Insulation prevents heat loss

• High pressure resistance of the Truma gas water heater (all submersible and pressure pumps up to 2.8 bar can be used)

• Safety ensured with electronic control components and overpressure valve

• Stainless steel container

• Low gas consumption with high efficiency

• Option to use on gas only, 240V or mixed mode

• Very compact, requires little installation space

• All fittings included are JG push-in connections for easier and faster installation

• Warranty: 2 years

• Heating Up Time: Mixed 28 min, Electrical 40 min, Gas 45 min approx

• Weight: 7.2 kg

• Contents: 14 Litres

Specifications

• Energy sources: LPG

• Power supply: 230v

• Output of electric heating element: 1415W

• Gas output: 1200 W

• Power consumption (at 230V): 5.7/5.9A

• Water capacity: 14 litres

• Heating time from approx. 20°C to approx. 65°C:

          approx. 45 min. (gas mode)

          approx. 40 min. (electric mode)

          approx. 28 min. (mixed mode)

• Gas consumption: 96g/h

• Weight empty: approx. 8.1kg

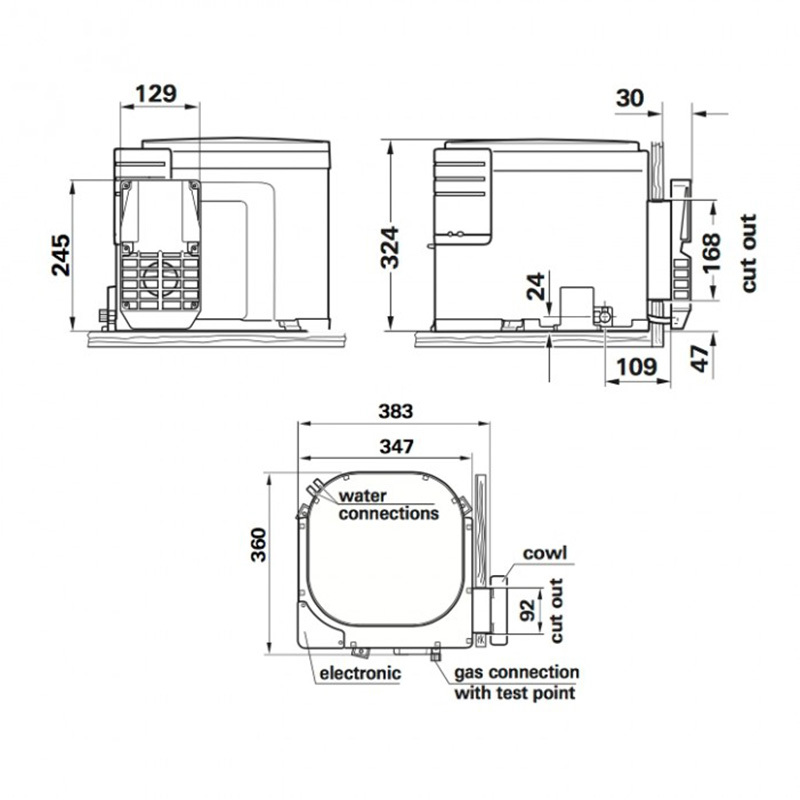

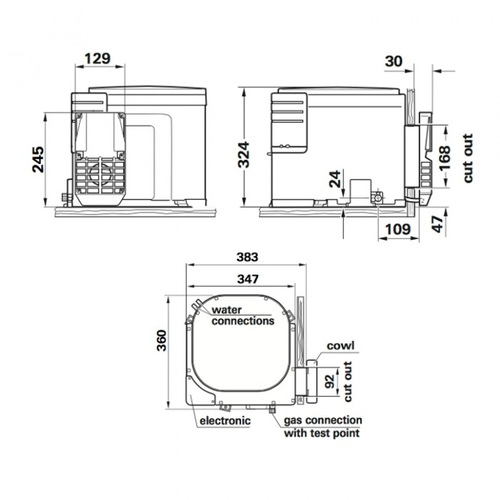

• Dimensions: 360mm(l) x 383mm(w) x 324mm(h)

• Power consumption (at 12V):

          Ignition: 0.16A

          Heating: 0.12A

          Stand-by: 0.05A

• Temperature limit: 70°C

• Pump pressure: max. 40psi

*Pressure reducer is already part of the kit

**Click here for the User Manual

NOTE: The installation and service must be done by a certified gas fitter please refer to the instruction manual.
