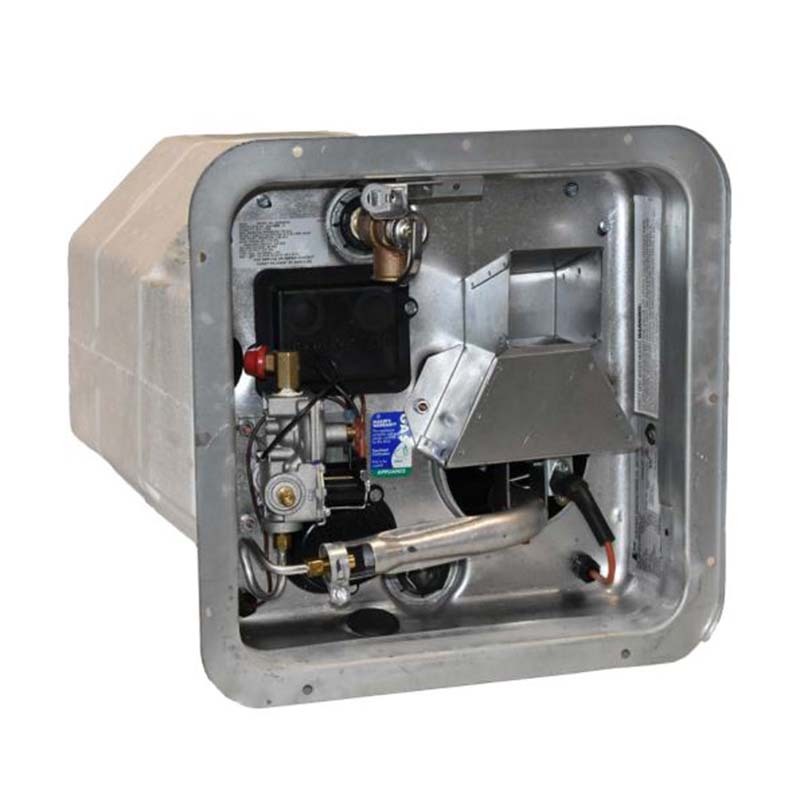

Suburban Hot Water System 20.3L LPG/240V with12V Ignition

The Suburban SW6DERA Hot Water System is an excellent way to get reliable hot water for your RV.

The pressure tested water heater tank has a 20.3L capacity and is made with high tensile steel and a porcelain lining so it can withstand hot water. With a quick recovery, the system has more hot water and less cool water cycles. The water heater can run on gas or electric and includes an anode rod to absorb corrosive action. With an automatic design, the water heater has a 12V direct spark ignition with a remote switch so you can control the heater by staying inside your RV.

Benefits & Features

• Designed for RVs

• Porcelain-lined steel tank

• Anode rod to absorb corrosive action

• Fast recovery for more hot water and less cool water cycles

• Copolymer insulation jacket moulded to fit the tank

• Easy to Install, Operate, Maintain: Limit switch, reset button, on/off electric element rocker switch, electric heat element, combination drain plug/anode rod placed in a housing behind the removable outer door.

• Complaint With: WaterMark certification Regulatory Compliance Mark (RCM), Australia and New Zealand Gas Safety Certification

• Type of Heating Medium: Universal gas/240V

• Supply: 12V ignition/240V element

• Element Rating: 1440W – 6A

• Max Working Pressure: 700kPa

• Hourly Gas Consumption: 8.7mj/hr

• Test Point Pressure: 2.64kPa

• Jet Orifice Size: 0.84mm

• Recovery: 40L/hr 45 ° C rise

• Capacity: 20.3L

• Dimensions: 320mm(w) x 320mm(h) x 500mm(d)

Click here for the Datasheet

NOTE: The installation and service must be done by a certified gas fitter please refer to the instruction manual.
