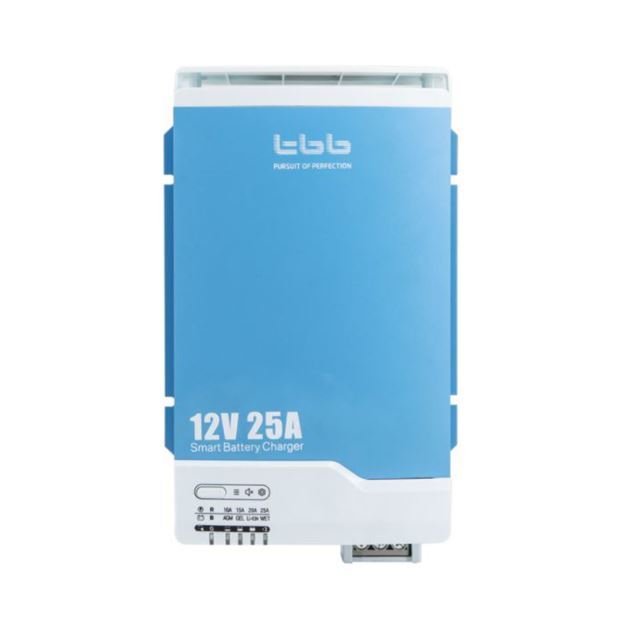

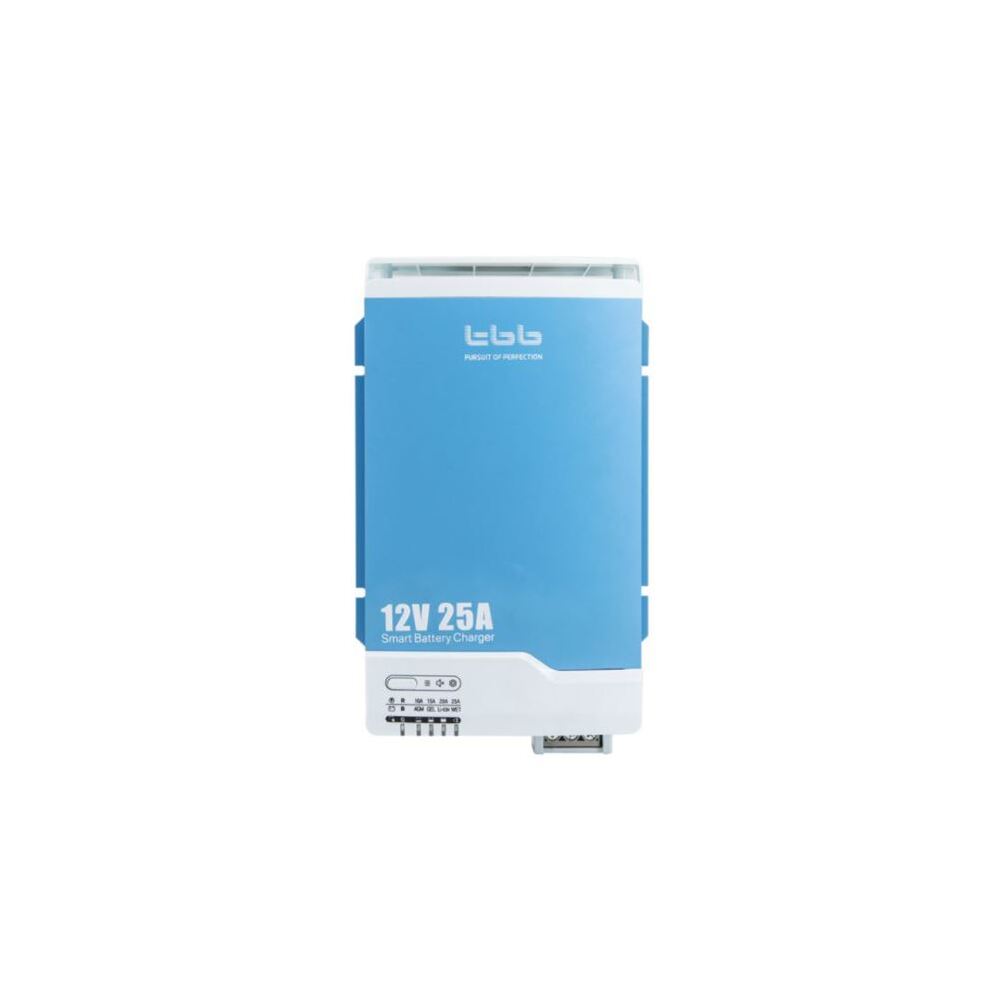

Trident Mains Charger with Temp Sensor 12V 25A

Get an effective charge with the Trident Mains Charger, a compact design ideal for mobile and marine situations. With a compact construction, the charger can be installed/stored into tight spaces.

Built with six stage charging system to provide complete, safe and rapid battery charging. The mains charger has multi separate DC positive terminals for simultaneously charging multi batteries. The charger features AC to DC isolation, surge protector, important safety components and battery management features to extend the life of your battery. With an adaptive charging algorithm, the charger is compatible with Flooded, AGM, GEL and with the correct settings Lithium can be used.

Benefits & Features

• Automatic Multi-stage Charging Curve: Max 6 steps charging curve

• Simultaneous Multi-battery Bank Charging: With multiple isolated outputs, including slave charger for starter battery.*

• For Flooded, AGM and GEL battery types and Lithium with the correct settings

• Inbuilt Timer: Switches from absorption to floating stage based on the timer set value or the current drop to the nominal level

• Dip Switches: Charge mode, battery type and to support R/C or R/D

• Isolated Design: Output banks have an isolation circuit to prevent the current flow between banks and the flow backwards from battery to battery charger

• Automatically works as power supply or charger

• Built-in safety

• Automatic recycle charging and automatic temperature compensation charging

• Active PFC with smaller and higher efficiency, max 92%

• Programmable with monitor

• Maximum Current: 25A

• Voltage: 12V

• Weight: 1.6kg

• Dimensions: 249mm x 165mm x 74mm

*Note: The multi outputs are not independently voltage regulated therefore you should avoid systems with mixed types of batteries.

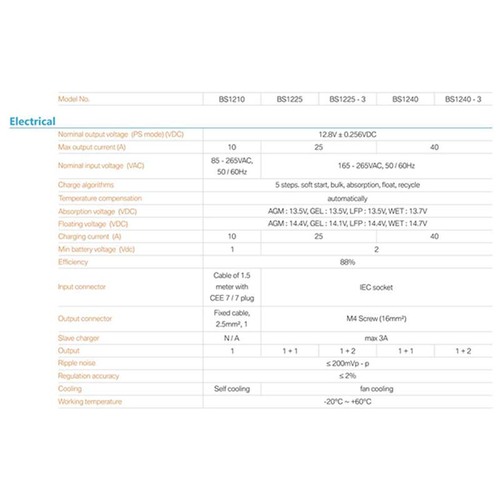

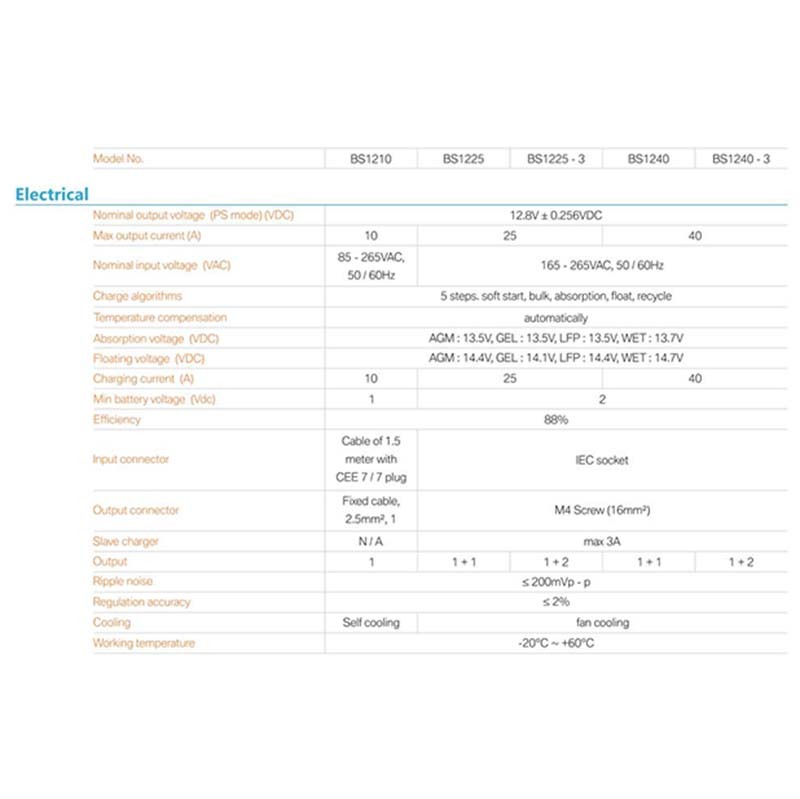

Click here for the Datasheet

Click here for the Manual
