Rule Multi Port Shower Sump Pump System 12V

The Rule Multi Port Shower Sump Pump System is a compact shower drain system with excellent pumping performance.

The system integrates a Rule submersible pump, threaded port fittings and float switch. The straight or 90º elbow fitting with an integral non-return valve can prevent back flow. The pump, strainer and cover can easily be removed for cleaning and servicing.

Benefits & Features

• Powerful pump to cope with incoming grey water

• Sealed polycarbonate lid

• Tough impact resistant material with gasket to prevent water splash

• Submersible pump controlled by a Rule-a-Matic float switch

• Removable lid, pump, filter and float switch

• Integral non-return valve

• Easy to install

• Back Flow Prevention: Reduces the amount of water that can siphon back to shower box

• Connections: For 19mm (3/4"), 25mm (1") or 29mm (1 1/8") bore hose on inlet and outlet. Straight and 90º elbow fittings.

• Fuse Size: 5A (12V), 4A (24V)

• Output: 50LPM (11GPM). Max recommended discharge head 2.5m

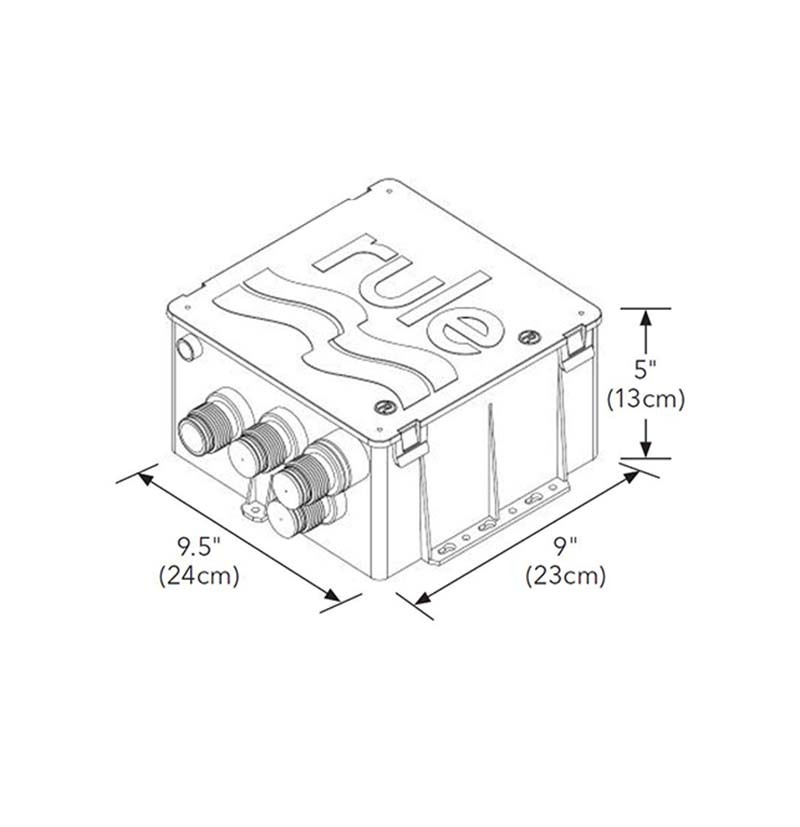

• Dimensions: 230mm x 240mm x 130mm

• Weight: 1.58kg

• Voltage: Choose the Voltage from the dropdown menu

Click here for the Manual
