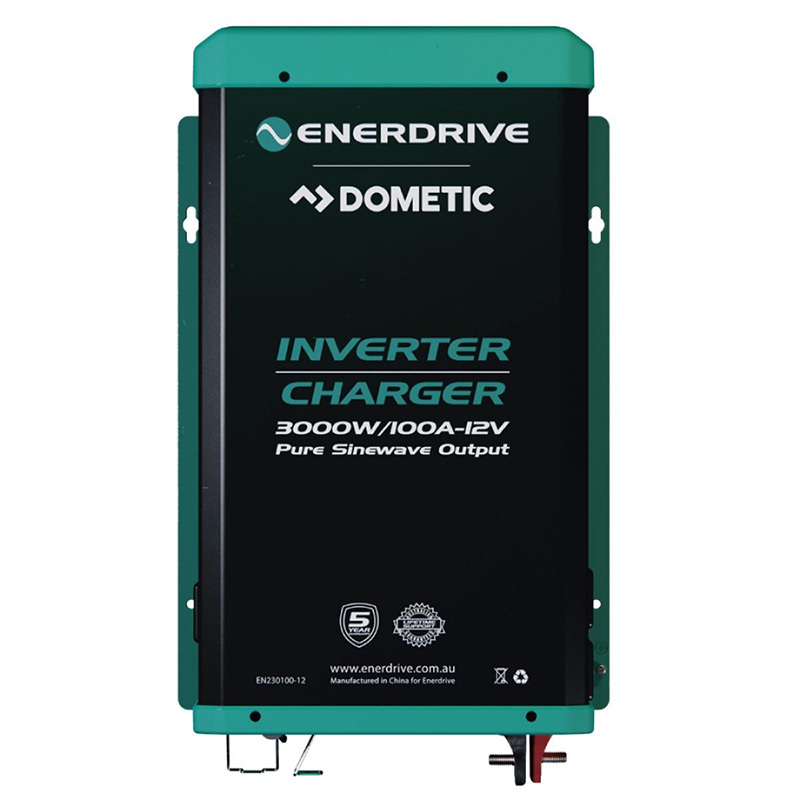

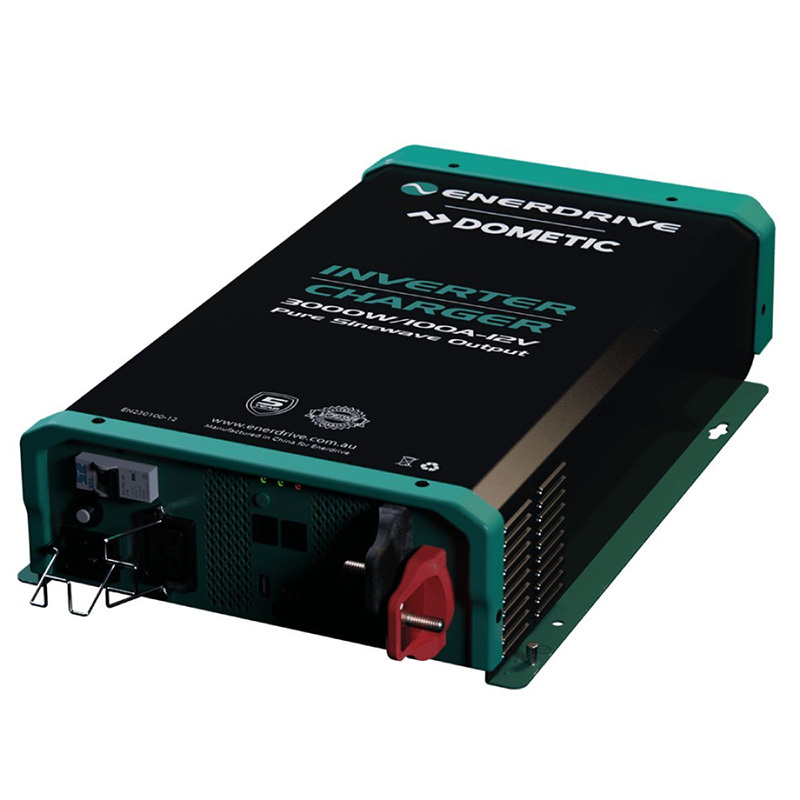

Enerdrive Inverter Charger 3000W/100A-12V

Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

In stock with supplier
This product will be shipped from supplier. Expect delivery in 7 - 14 business days.

Benefits & Features*

Seamless 16A AC Internal Transfer Switch
AC RCD/Safety Switch with test button
Remote Control Display Panel
Regulated Pure Sine Wave Output
Quiet Operation
Compact Size for Easy Installation
Variable settings offered for Gel, Flooded, AGM, and Lithium battery compatibility.
Multi-stage charging ensures batteries are charged to their manufacturer’s recommendations.
Lightweight compact design
Built-in load sense to minimize battery drain
Includes Remote Controls
Dimensions: 307mm(w) x 533mm(h) x 108mm(d)
Weight: 10.4kg
5 Year Warranty

*Click here for User Manual

Specifications

AC Output Power: 3000W
AC Output Current: 13.0A
AC Output Voltage: 230VAC
AC Output Waveform: True Sinewave (<5% THD)
Nominal DC Input Voltage: 12.5Vdc
DC Input Voltage operating range: 10.5 – 16.5 VDC
Under Voltage Alarm: 11.0 / 12.5 VDC
Under Voltage Shutdown: 10.5 / 12.0 VDC
Over Voltage Shutdown: 16.5 VDC
AC Transfer Switch

Transfer Time: <30ms

Transfer Relay Rating: 16A

AC Input socket IEC-C20: 16A Heavy Duty Connector

AC Output socket IEC-C19: 16A Heavy Duty Connector

Safety and Environmental

Conformance: LVD: EN/IEC 62040-1, IEC 61558-2-16

Agency Markings: CE

Operating Temperature: 0°C to 40°C

Storage Temperature: -20°C to 60°C

With a state of the art, easy to use design, the Enerdrive Inverter Charger 3000W/100A-12V is a product that will offer you True Sinewave AC power for your RV, Marine, 4WD and remote power needs, whilst also recharging your battery automatically when 240V AC is available.

The Sinewave Inverter-Charger can run multiple 240V AC-powered appliances when you need AC power off-grid. The multi-stage battery charger offers charging profiles for multiple different types of batteries. The built-in transfer switch will automatically switch between 240V mains supply when available and battery power when 240V mains is not available.

Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.

The 12V 3000W/100A Inverter-Charger is suitable for appliances that use up to 3000W of power for operation, such as induction cooktops, microwaves, coffee machines and more.
