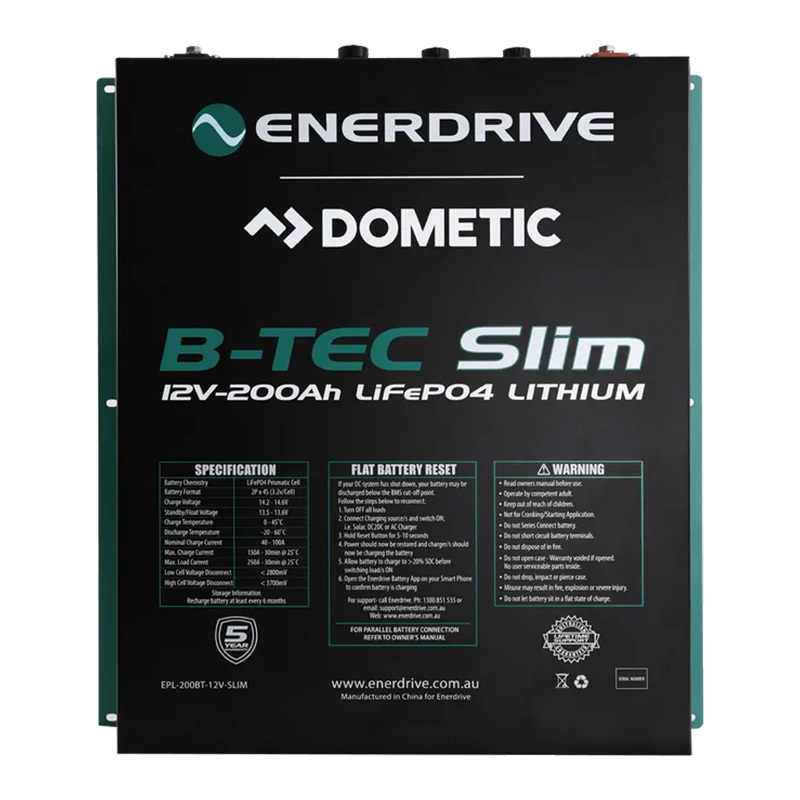

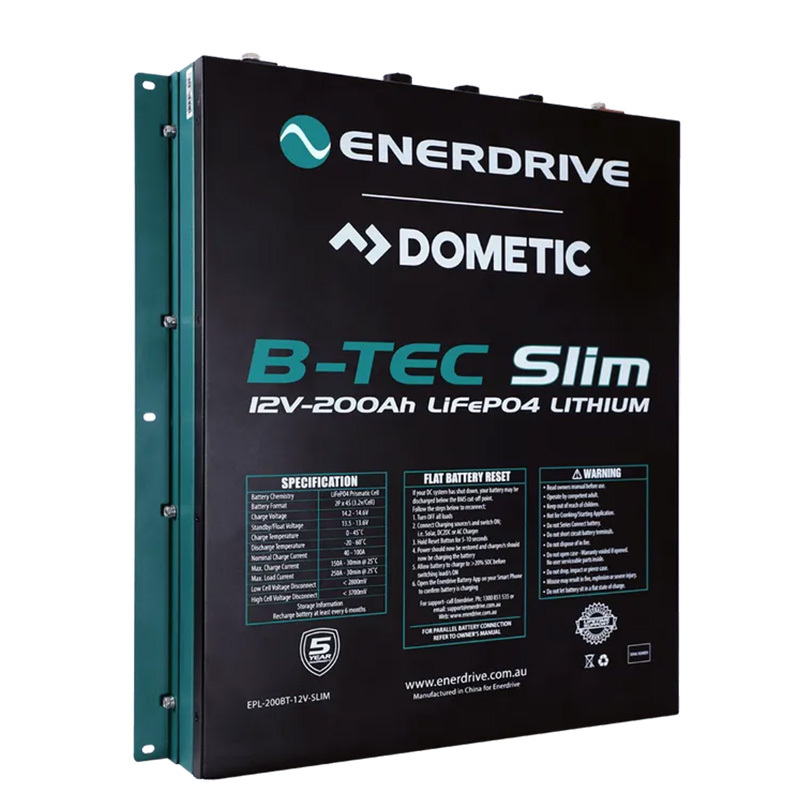

Enerdrive B-Tec Slimline Lithium Battery 200AH/12V

Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

Benefits & Features

Up to 4x longer life than comparable lead acid batteries
More usable capacity & greater efficiency
Smart phone monitoring system
Battery management system
Lithium v AGM Capacities;

100Ah Lithium = 160Ah AGM

125Ah Lithium = 200Ah AGM

200Ah Lithium = 320Ah AGM

300Ah Lithium = 480Ah AGM

Case Construction: Powder Coated Zinc Plate
Dimensions: 530mm(l) x 83mm(d) x 600mm(h)
Weight: Approx. 30kg

WARNING: Please note B-TEC batteries must not be installed:

In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
Inside compartments dedicated to carrying gas.

NOTE: This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.

Specifications

Nominal Voltage: 12.8V
Nominal Capacity: 200Ah
Cycle Life (DOD – 80% under controlled conditions): ≥ 2000 Cycles

Standard Charge Specification (Lithium profile charger required)

Battery Charge Temperature: 0 ̴ 45°C
Normal Charge Voltage CV/CC*: 14.20 ̴ 14.60V
Standby (Float) Voltage: 13.50 ̴ 13.80V
Maximum Charge Current: 150A @ 25°C for 30mins
Recommended Charge Current for Maximum Life: 60A-120A

Standard Discharge Specification

Battery Discharge Temperature: -20 ̴ 60°C
Battery Output Voltage Range: 11.00 ̴ 14.60V
Maximum Discharge Current: 250A@25°C ± 5°C for 30mins
Pulse Discharge Current: 450A for 1.0s
Discharge Cut-off Voltage: ≤11.20V

Circuit Protection: The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.

Over-Charge Protection

Over-charge Protection Per Cell: 3.90V ± 0.03V
Over-charge Release Per Cell: 3.60V ± 0.05V
Over-charge Release Method: Discharge below release voltage

Over-Discharge Protection

Over-discharge Protection Per Cell: 2.80V ± 0.05V
Over-discharge Release Per Cell: 3.20V ± 0.05V
Over-discharge Release Method: Apply Charge/Voltage ≥12.8V

Over Current Protection

Discharge Over Current: 280A for 25s – 400A for 3.5s
Protection Reset Time: 5s Auto Release
Over Current Release Method: Disconnect Load

Over Temperature Protection

Battery Discharge Over Temperature:

Protection to 65°C ± 5°C

Release at 50°C ± 5°C

Battery Charge Over Temperature:

Protection to 55°C ± 5°C

Release at 45°C ± 5°C

Short Circuit Protection: Auto release after 5s

Storage Information

Temperature & Humidity Range:

≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH

≥ 30 days -10°C ̴ 45°C, 5 ̴ 75% RH

Self-discharge Rate: ≤ 3% Per Month

This Enerdrive B-Tec Slimline Lithium Battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

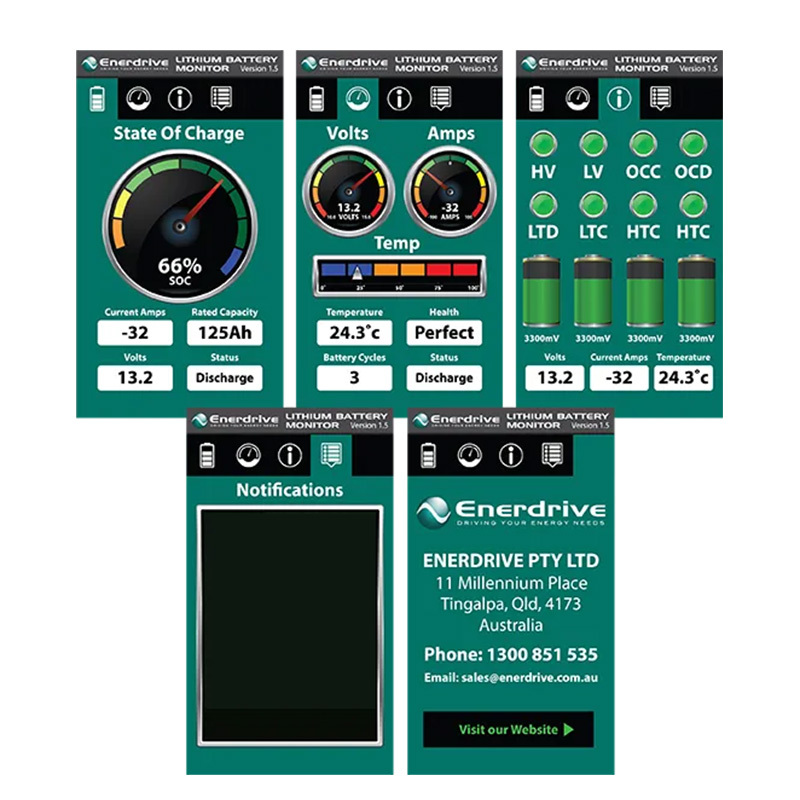

It also incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information; Battery Capacity, Battery Voltage, Battery Current (Amps), Battery State of Charge (SOC), Battery State of Health (SOH), Battery Status, Individual Cell Voltage, Battery Temperature, Battery Cycles, Battery Alarms, and Battery Event Information

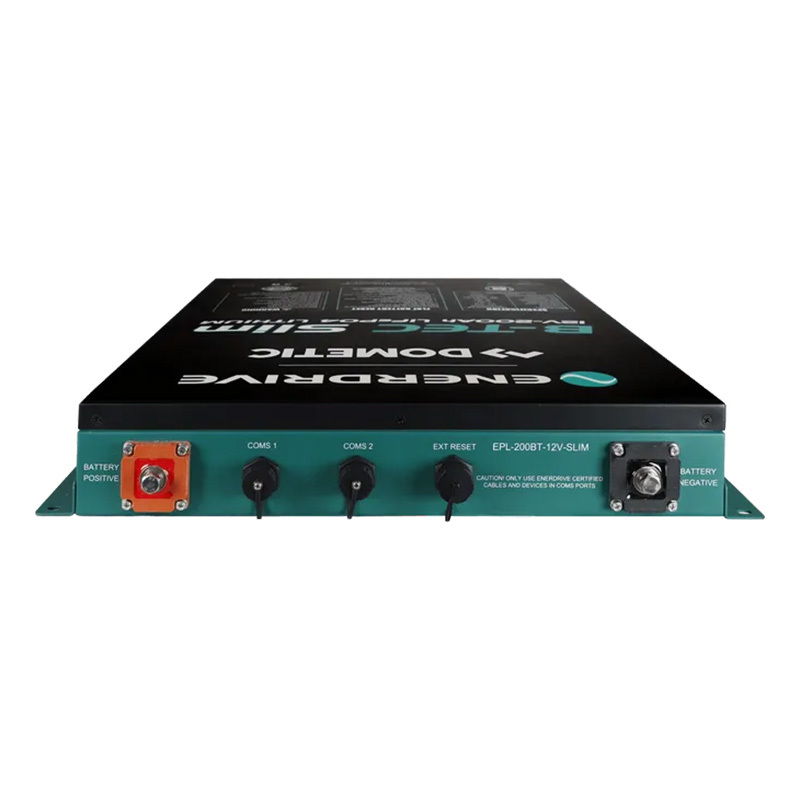

Extremely practical and compact, all connection points for the battery are at one end including all Comms Ports and Reset Port.

Reset button is not included on the battery itself, we have opted for a button that can be remotely mounted elsewhere in the install. This allows for a much easier restart process for customers and also keeps the battery more water tight with less chance of water ingress.

Comms Ports are both RJ45 remote ports with CAN output. Both are reserved for future integration and functionality.

Water resistant metal casing meeting IP52 rating and all external bolts and fittings are blind so limits the chance for water to travel from external to internal. Rubber style seals between all metal framing. Frames overlap as well to help avoid water ingress.

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC Slimline battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

WARNING: Please note B-TEC batteries must not be installed:

In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
Inside compartments dedicated to carrying gas.
