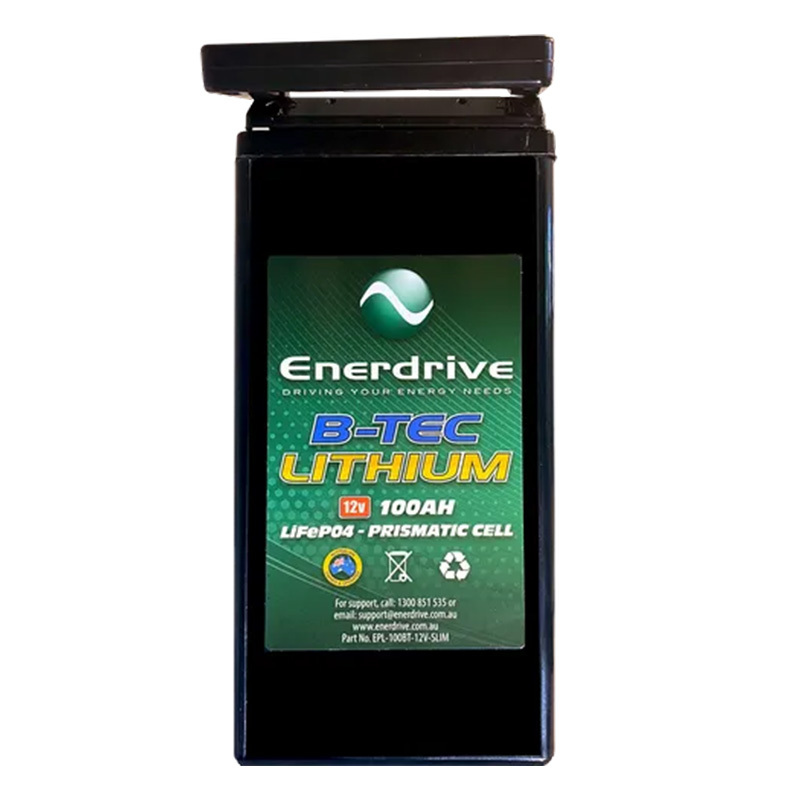

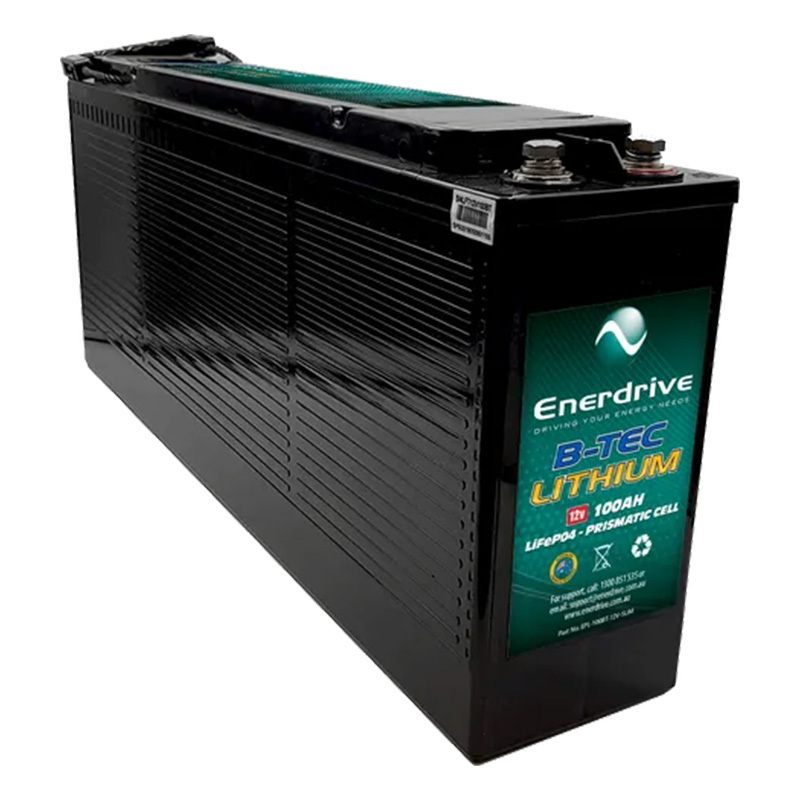

Enerdrive B-Tec Slimline Lithium Battery 100AH/12V

Benefits & Features*

• Up to 4x longer life than comparable lead acid batteries

• More usable capacity & greater efficiency

• Lightweight

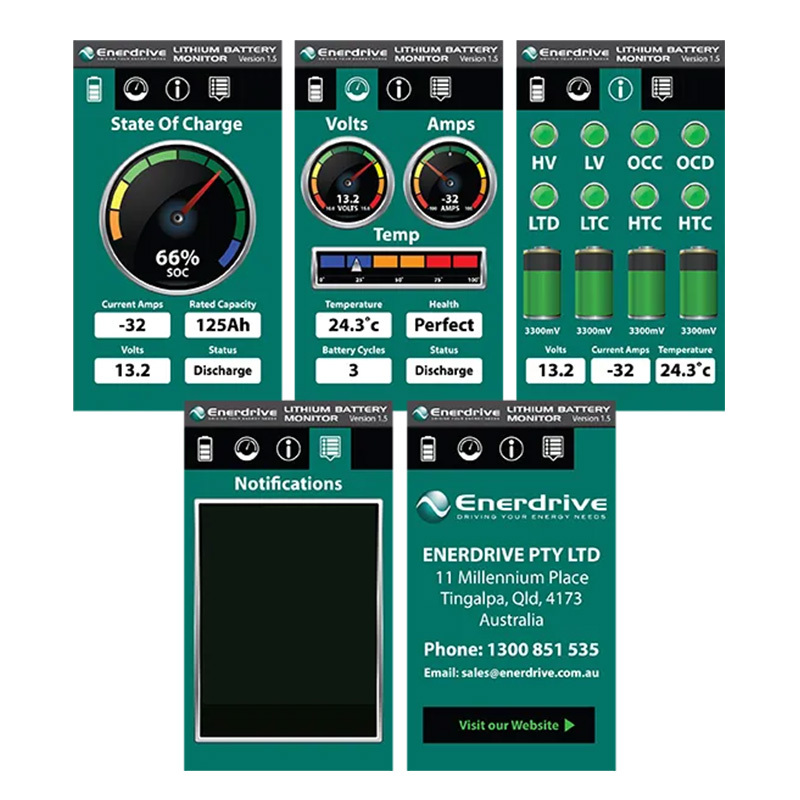

• Smart phone monitoring system

• Battery management system

• Lithium v AGM Capacities;

           100Ah Lithium = 160Ah AGM

           125Ah Lithium = 200Ah AGM

           200Ah Lithium = 320Ah AGM

           300Ah Lithium = 480Ah AGM

• Case Construction: Hi Impact ABS Plastic

• Dimensions: 109mm(w) x 551mm(l) x 239mm(h)

• Weight: Approx. 12.5kg

*Click here for User Manual

WARNING: Please note B-TEC batteries must not be installed:
In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
Inside compartments dedicated to carrying gas.

NOTE: This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.

Specifications

• Nominal Voltage: 12.8V

• Nominal Capacity: 100Ah

• Cycle Life (DOD – 80% under controlled conditions): ≥ 2000 Cycles

Standard Charge Specification (Lithium profile charger required)

• Battery Charge Temperature: 0 ̴ 45°C

• Normal Charge Voltage CV/CC*: 14.20 ̴ 14.60V

• Standby (Float) Voltage: 13.50 ̴ 13.80V

• Maximum Charge Current: 80A @ 25°C for 30mins

• Recommended Charge Current for Maximum Life: 20A-50A

Standard Discharge Specification

• Battery Discharge Temperature: -20 ̴ 60°C

• Battery Output Voltage Range: 11.00 ̴ 14.60V

• Maximum Discharge Current: 100A@25°C ± 5°C for 30mins

• Pulse Discharge Current: 250A for 1.0s

• Discharge Cut-off Voltage: ≤11.20V

Circuit Protection: The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.

Over-Charge Protection

• Over-charge Protection Per Cell: 3.90V ± 0.03V

• Over-charge Release Per Cell: 3.60V ± 0.05V

• Over-charge Release Method: Discharge below release voltage

Over-Discharge Protection

• Over-discharge Protection Per Cell: 2.80V ± 0.05V

• Over-discharge Release Per Cell: 3.20V ± 0.05V

• Over-discharge Release Method: Apply Charge/Voltage ≥12.8V

Over Current Protection

• Discharge Over Current: 110A for 30s – 250A for 3s

• Protection Reset Time: 5s Auto Release

• Over Current Release Method: Disconnect Load

Over Temperature Protection

• Battery Discharge Over Temperature:

           Protection to 65°C ± 5°C

           Release at 50°C ± 5°C

• Battery Charge Over Temperature:

           Protection to 55°C ± 5°C

           Release at 45°C ± 5°C

• Short Circuit Protection: Auto release after 5s

Storage Information

• Temperature & Humidity Range:

           ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH

           ≥ 30 days -10°C ̴ 45°C, 5 ̴ 75% RH

• Self-discharge Rate:    ≤ 3% Per Month
