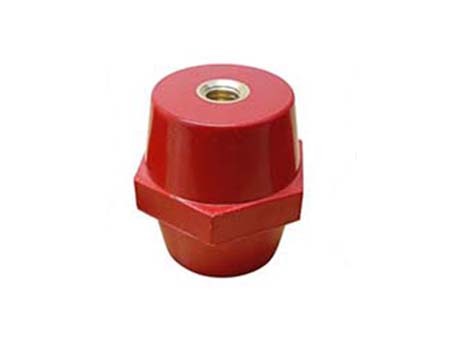

Electrical Stand Off Insulator M10 50mm x 46mm

The Electrical Stand Off Insulator M10 is an electrical component made with glass reinforced polyester and brass insert. The insulators are strong and resistant to corrosion, chemicals and oil.

Benefits & Features

• Glass reinforced polyester and brass insert moulded in

• Octagon shape for easy installation

• High dielectric strength

• Arc quenching and tracking

• Wear and corrosion resistant

• High quality finish and appearance

• High mechanical strength and dimensional stability

• Chemical and oil resistant

• Standards: EN60660:2000

• Operating Temperature: -40°C to 140°C

• Thread: M10

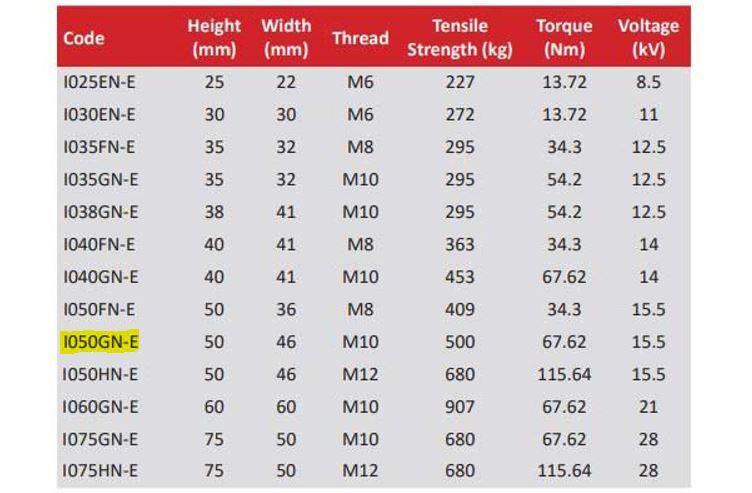

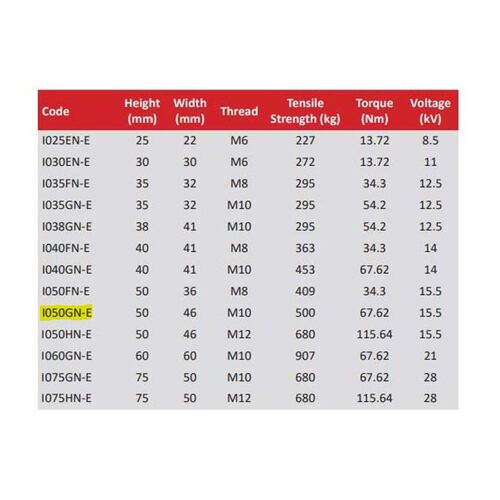

• Stand Off Insulator Variant: Choose the Torque, Tensile Strength, Voltage and Dimensions from the dropdown menu
