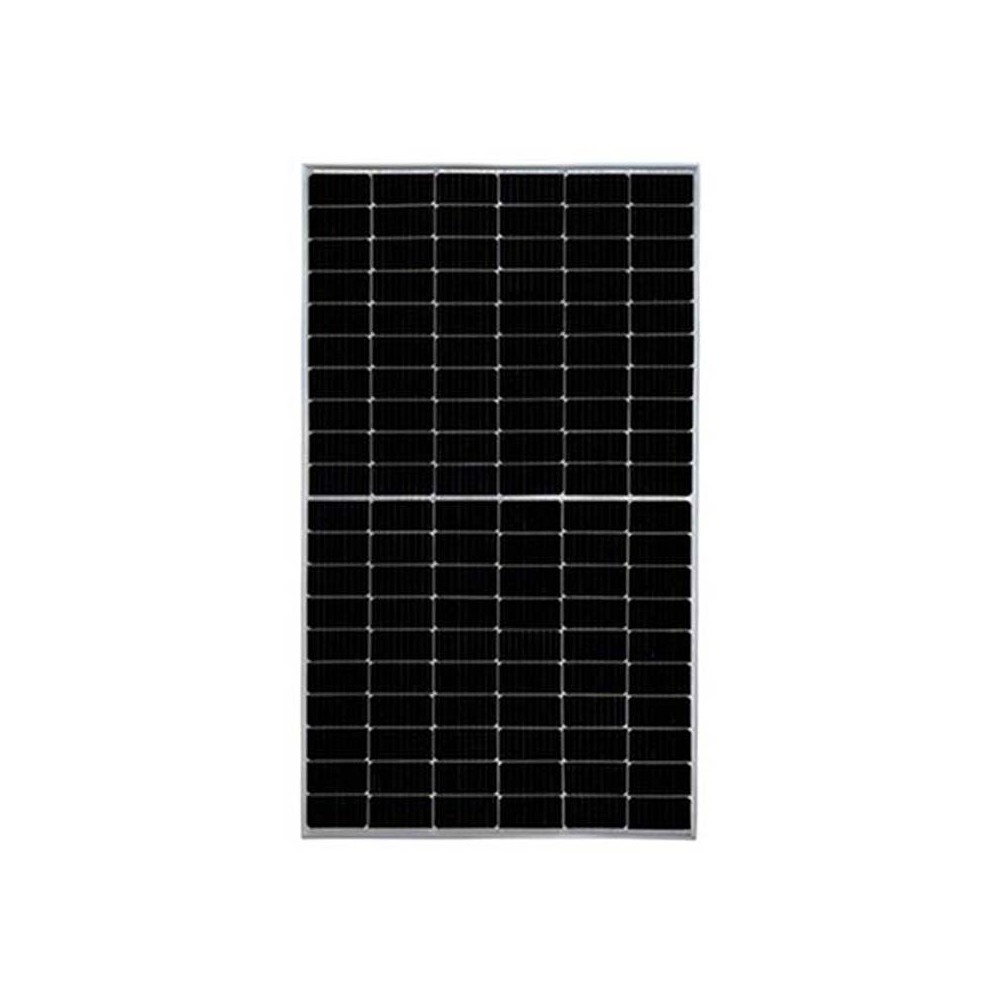

AA Solar Mono PERC Photovoltaic Solar Panel 340W

PRICE
$ 400.00 NZD

or 4 payments of $100.00 with Info

WANT TO BECOME A RV PASS MEMBER? CLICK HERE TO REGISTER FOR FREE


Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

Currently Out of Stock

Specifications

  • Maximum Power (PMAX): 330W

  • Open-Circuit Voltage (VOC): 41.08V

  • Short-Circuit Current (ISC): 10.30A

  • Maximum Power Voltage (VMP): 34.24V

  • Maximum Power Current (IMP): 9.64A

  • Maximum System Voltage: 1000V DC

  • Operating Temperature: -40°C to +85°C

  • Cable: 4mm²

  • 2x 400mm cables with MC4

Effectively power your off-grid application with the renewable energy of the AA Solar Mono PERC Photovoltaic Solar Panel 340W.

Built with PERC technology and half-cut cells, the solar panel can continue to perform well in lower light conditions and operate efficiently with lower resistance and reduced power loss. The panel also has mechanical warranties. Regularly wash the panel with washing up liquid and water to clean and help reduce power loss caused by dirt and dust. For greater performance, use the solar panel with the correct solar charge controller. AA Solar suggest using a MPPT solar charge controller as they are more efficient than PWM.


Benefits & Features*

  • Monocrystalline silicon cells

  • High-efficiency Passivated Emitter and Rear Contact (PERC) technology

  • Excellent performance under low light conditions

  • Strong aluminium alloy frame

  • Good temperature coefficient enables higher output in high-temperature regions

  • Certified for salt/ammonia and corrosion resistance

  • Half-cut: Module consist of smaller cells to lower resistance and reduce power loss

  • Higher fill factor: Better yield

  • 1.5%– 2.5% power increase

  • Lower string current and lower Nominal Operating Cell Temperature (NMOT)

  • Dimensions: 1684mm(h) x 1002mm(w) x 35mm(d)

  • Weight: 19kg

  • Warranty: 25 Years Warranty for 80% of Output, 10 Years Warranty for 90% of Output, 10 Years Limited Mechanical Warranty


*For further specifications please click the “Features” tab

Click here for the Datasheet



Barcode # 202202024
Brand AA Solar
Unit Of Measure ea
SKU 202202024
