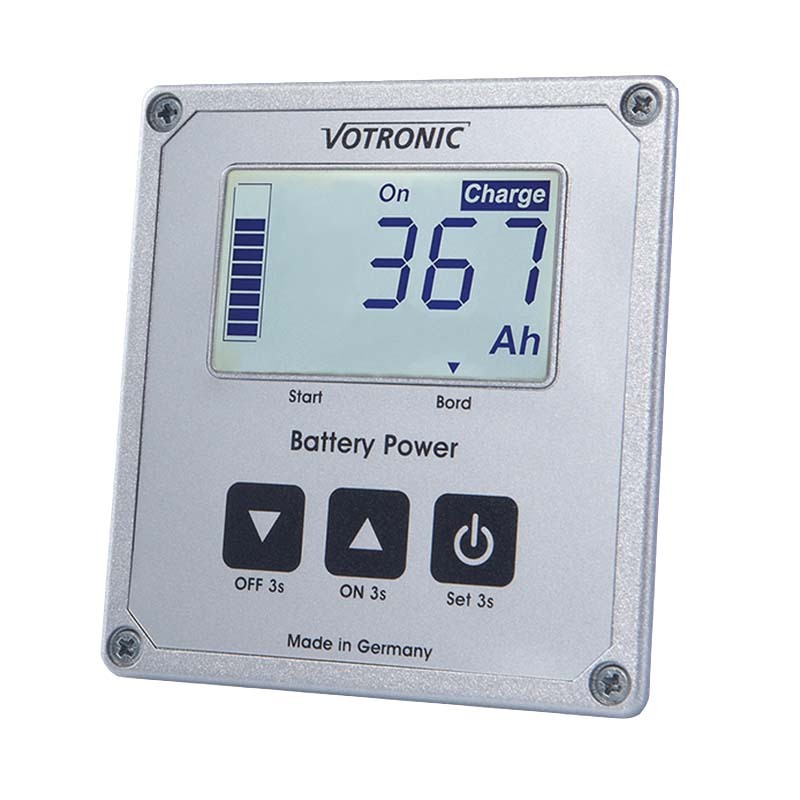

Votronic LCD Battery Computer with Smart Shunt 200A

Be in the know with your battery thanks to the Votronic Battery Computer, a battery gauge designed to provide you with information regarding your battery’s current data.

The battery computer is compatible with AGM, lead acid, lithium and gel batteries with a voltage of 12V and 24V. The device detects information associated with the battery, providing the charging and discharging currents of battery bank. Utilising the display, the battery computer indicates the status of the battery. Results are displayed with an accurate read using Ampere-hours (Ah), percentage and clear level bar.

Benefits & Features

• Bright display with white illumination

• Indication of the battery‘s charging state adjustable

• Residual capacity in Ah and percentage, Charging/discharging current, Voltage for 2nd battery

• Programmable terminal with main switch function

• Including precision measuring resistor

• For 12V and 24V lead-acid, gel, AGM, LiFePO4 batteries

• For Inverters Up To: 2400W-12V and 4800W-24V

• Optional: Bluetooth Connector S-BC

• Nominal Battery Voltage: 12V / 24V

• Shunt: 200A

• Minimum Battery Capacity: 50Ah

• Display Dimensions: 80mm(h) x 85mm(w) x 24mm(d)

• Assembly Dimensions: 66mm(h) x 72mm(w) x 22mm(d)

• Shunt Dimensions: 32mm(h) x 135mm(w) x 44mm(d)

• Weight Display/Smart-Shunt: 55g/240g

• Conforms With: CE, E-Test (EMV/Automotive Regulations)

• Contents: Display unit, measuring shunt 200A, connection cable of 5m length, ground strap, fastening screws, manual, drilling jig

• Warranty: 3 Years
