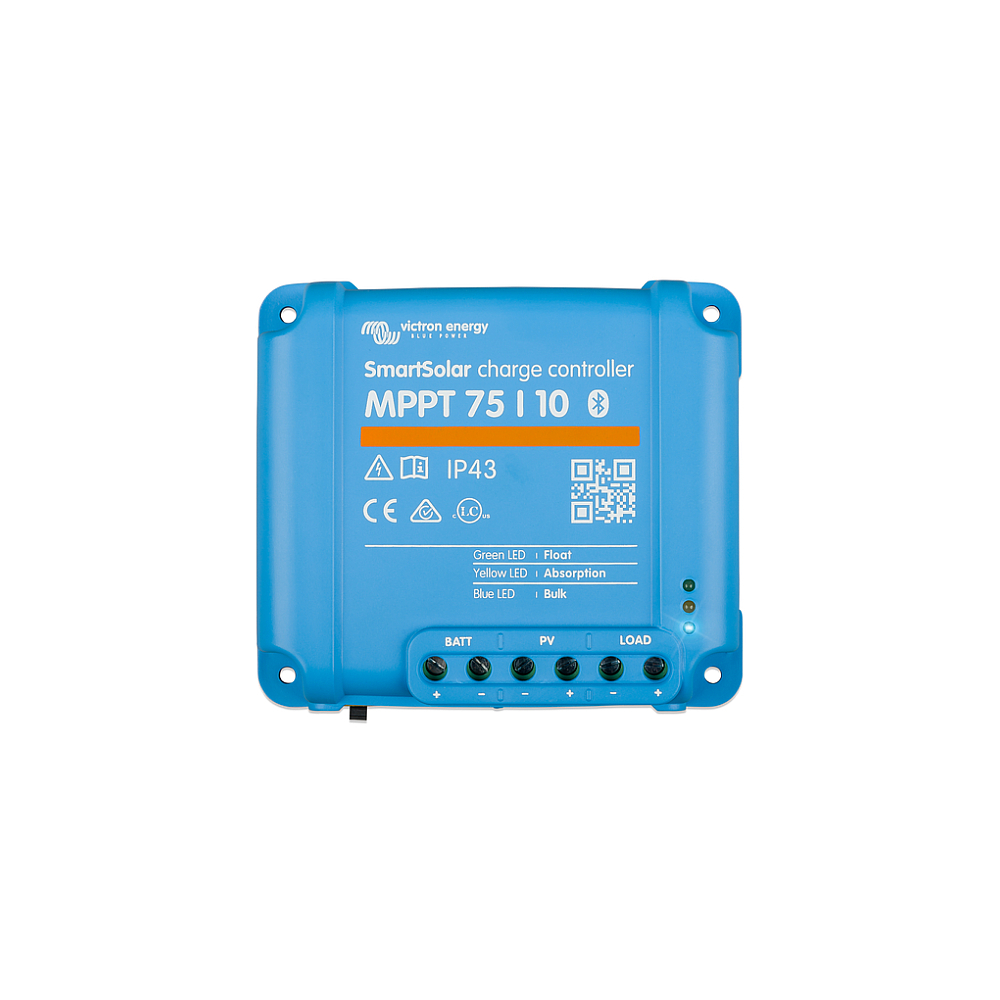

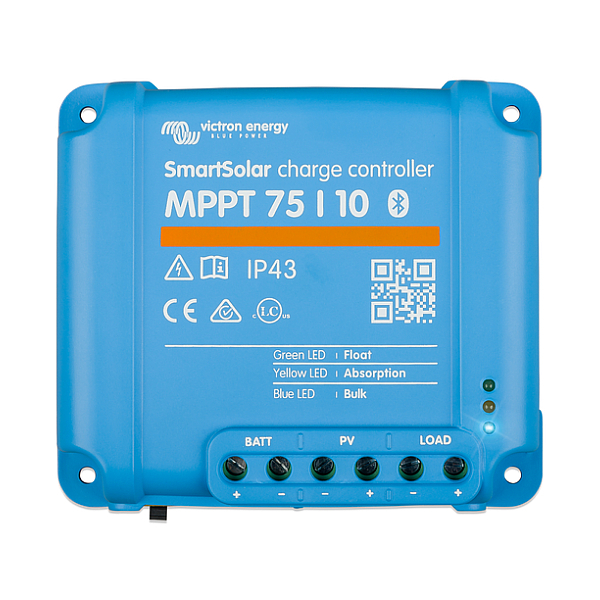

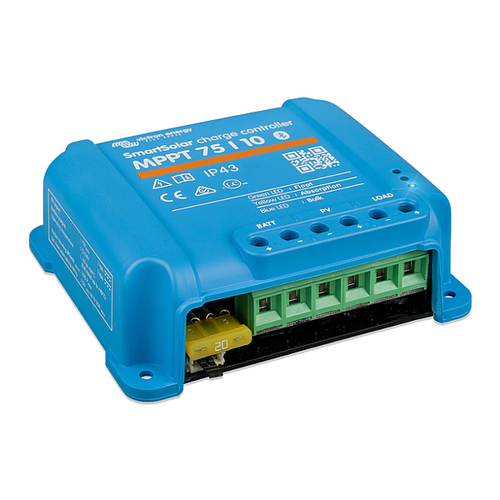

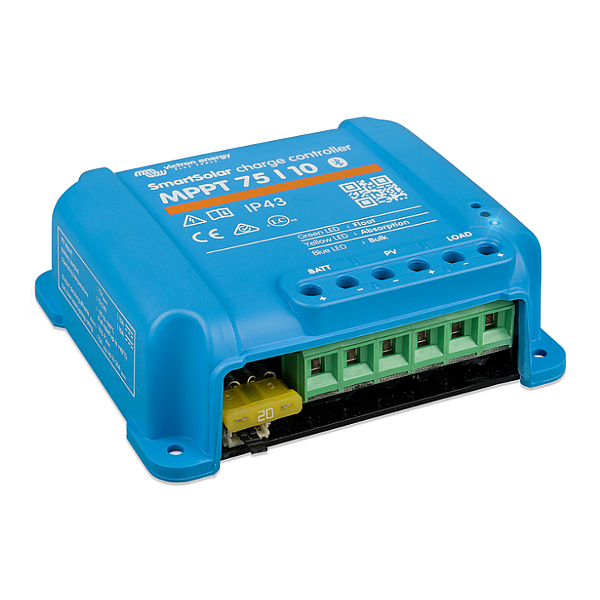

Victron SmartSolar MPPT Solar Controller 75V/10A

A solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health which will extend its life.

When selecting a charge controller, the max open circuit voltage of the panels must not exceed the rated voltage of the charge controller. Charge Current can be Exceeded the Controller will Current limit to its max rated current.

Benefits & Features*

• Ultra-fast Maximum Power Point Tracking (MPPT)

• Advanced Maximum Power Point Detection in case of partial shading conditions

• Outstanding conversion efficiency

• Natural convection cooling (except for the 150/70 and 150/85 CAN-bus models)

• Automatic battery voltage recognition

• Flexible charge algorithm

• Over temperature protection and power derating when temperature is high

• Built-in Bluetooth

• Day/night timing and light dimming on the low power models with a load output

• Maximum Battery Current: 15A

• Automatic Load Disconnect: Yes, maximum load 15A

• Maximum PV Open Circuit Voltage: 75V

• Peak Efficiency: 98%

• Continuous Load Current: 15A

• Dimensions: 100mm(h) x 113mm(w) x 40mm(d)

• Weight: 0.5kg

Available for both iOS and Android devices

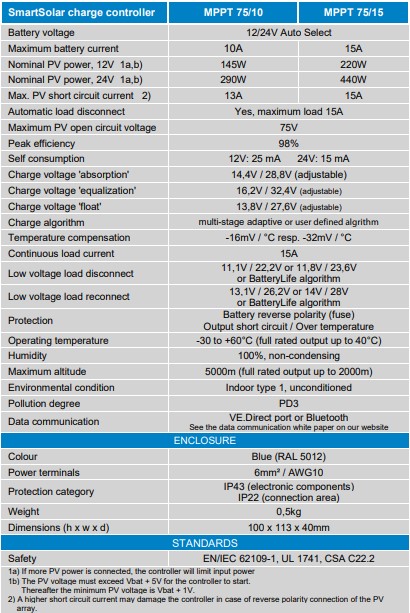

*For further specifications please click the “Features” tab

**Click Here for the Manual
