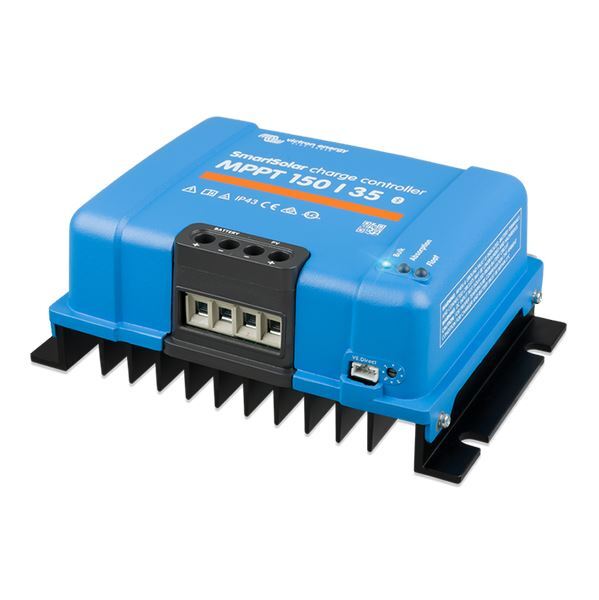

Victron SmartSolar MPPT Solar Controller 150V/35A

Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

In stock with supplier
This product will be shipped from supplier. Expect delivery in 7 - 14 business days.

Benefits & Features

Ultra-fast Maximum Power Point Tracking (MPPT)
Advanced Maximum Power Point Detection in case of partial shading conditions
Outstanding conversion efficiency
Flexible charge algorithm
Protection: PV reverse polarity, output short circuit, over-temperature protection
Built-in Bluetooth
Rated Charge Current: 20A
Load Output: No
Maximum PV Open Circuit Voltage: 150V absolute maximum coldest conditions. 145V start-up and operating maximum
Peak Efficiency: 98%
Battery Voltage: 12/24/36/48
Dimensions: 130mm(h) x 186mm(w) x 70mm(d)
Weight: 1.25kg

Click here for the Datasheet
Click here for the Smartsolar MPPT Charge Controller Overview
Click here for PWM or MPPT Datasheet

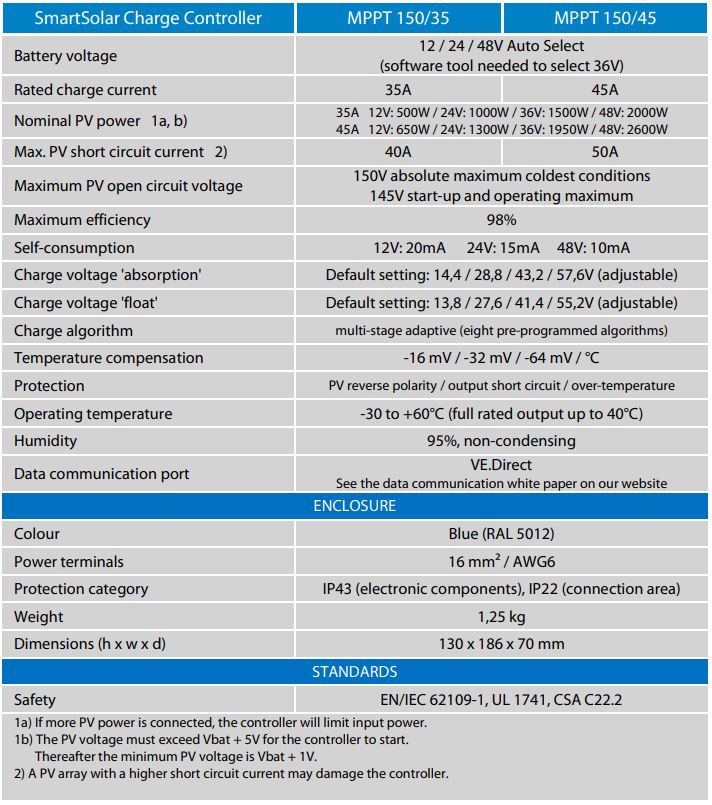

Specifications

A solar charger gathers energy from your solar panels and stores it in your batteries.

Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health which will extend its life.

When selecting a charge controller, the max open circuit voltage of the panels must not exceed the rated voltage of the charge controller.

Charge Current can be Exceeded the Controller will Current limit to its max rated current.
