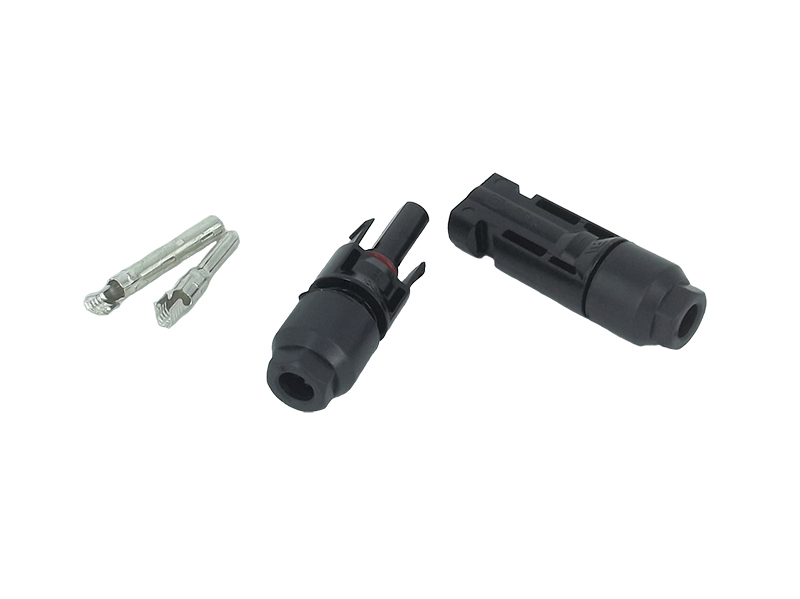

Solar Part - MC4 Connector

The Solar Part - MC4 Connector is suitable for connection with a solar panel cable.

The male and female connector features an auto-lock structure to make electrical contact a more reliable connection for solar systems engineering, addressing the problem of cable installation. It has an IP rating of IP67.


Benefits & Features

• MC4 connector

• Working Current: 30A (6mm2)

• Rated Voltage: DC1000V (TUV)

• Contact Resistance: <=0.5mΩ

• Insulation Resistance:  ＞ 500MΩ

• Suitable Single Conductor Cable Section: 1.5mm2--6mm2

• Cable Outside Diameter Range: Φ5mm ～Φ 7mm

• Ambient Temperature:-40 ℃～ + 105 ℃

• IP Rating: IP67

• Protection Class: Class II

• Contact: Copper (cn), nickel plating (sn)

• Flame Class: UL94-VO

• Terminal Connection Method: Crimping

• Model: ZY-1-2
