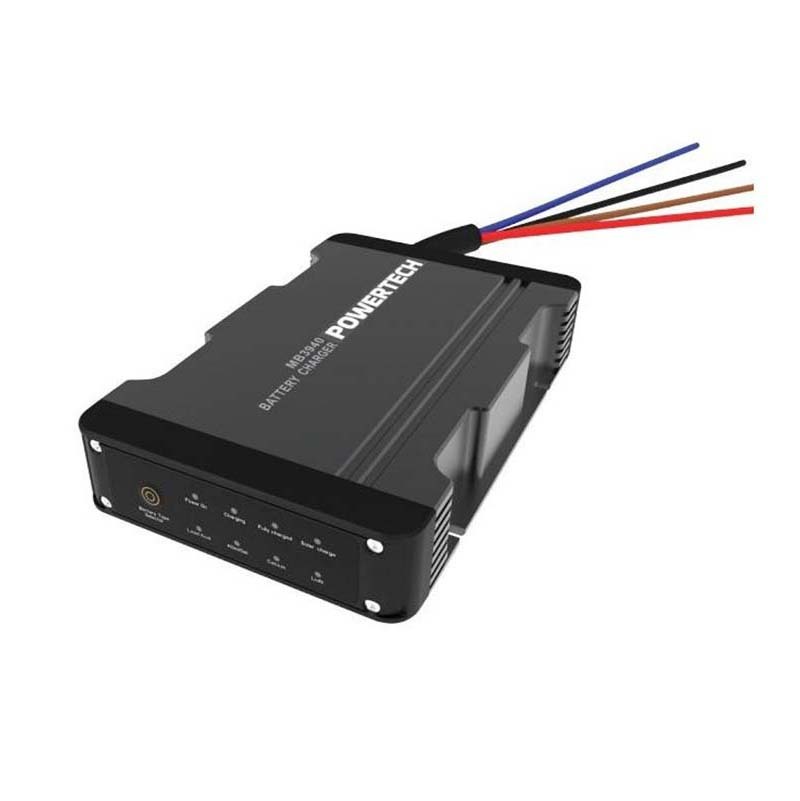

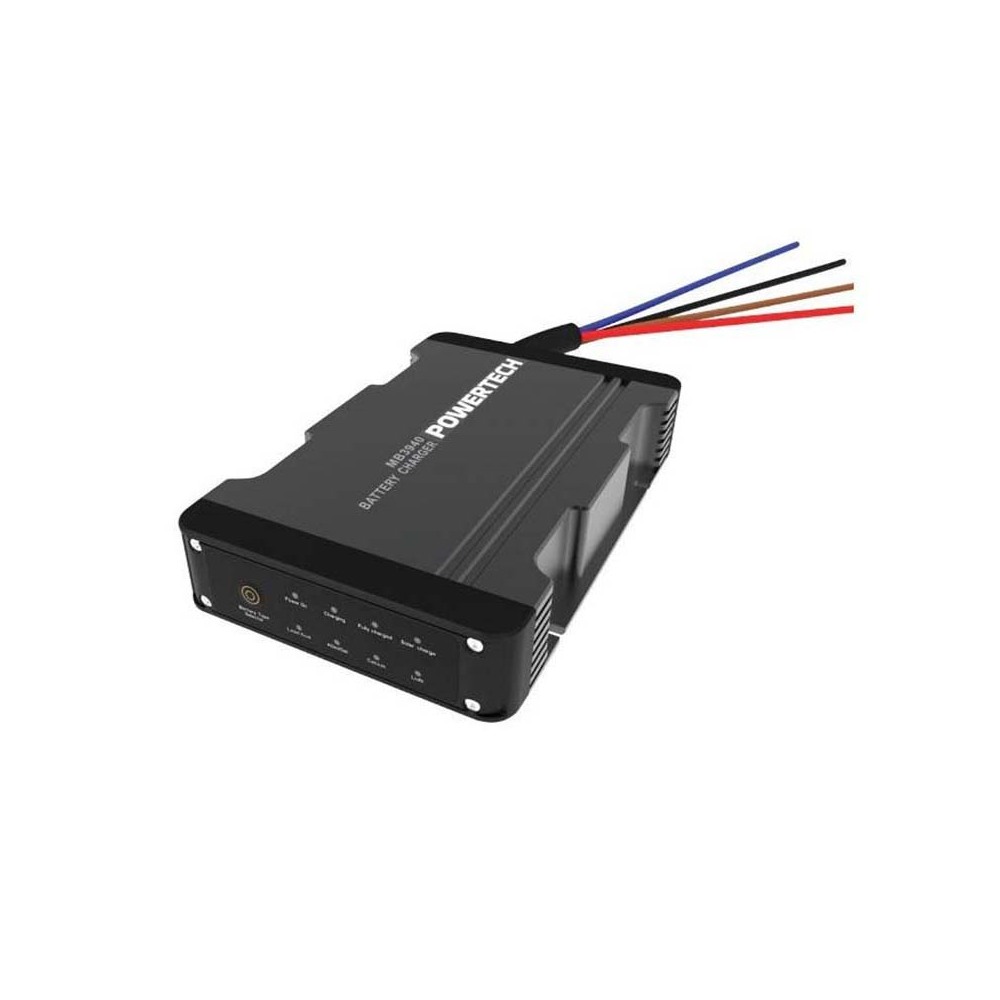

Powertech DC/DC Multi-Stage Battery Charger Lithium/SLA 12V/20A

Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

In Stock - Christchurch
This product is ready to ship from our Christchurch branch. Expect delivery in 2 - 5 business days.

Benefits & Features*

Automatic, set-and-forget type operation
Dual input - solar and/or alternator/car battery
20A max charging current (automatically controlled)
Six-stage Battery Charging; Qualification, Recondition, Bulk, Absorption, Check, and Maintenance
Supports Lead acid, AGM, Calcium, GEL or LiFePO4 batteries
Includes over charge, short circuit, over temperature, reverse polarity, thermal overload, and solar input overload safety protection
Aluminium case

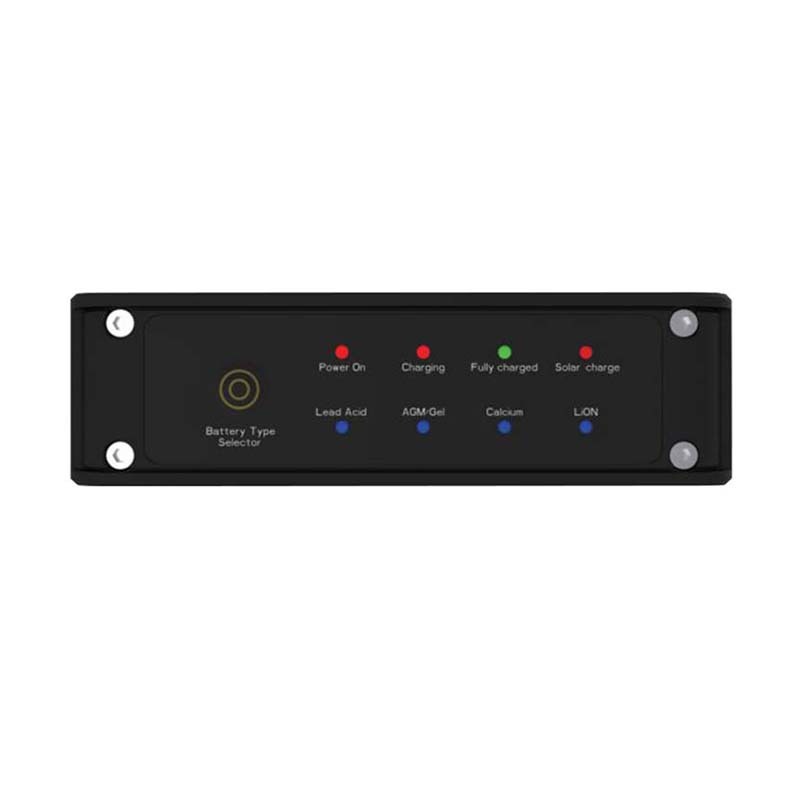

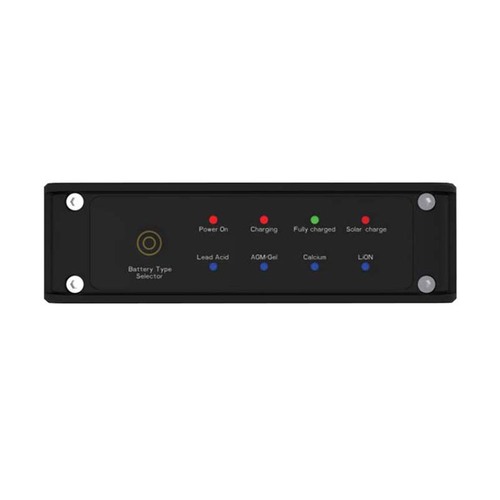

Charge status LEDs and push button
Type of Converter or Transformer: DC to DC
Dimensions: 208mm(l) x 136mm(w) x 38mm(h)
Weight: 0.71kg
Warranty: 1 year

Specifications

Solar Panel Open Circuit Voltage: 16~25V max.
Rated Output Power: 13.5~15.4V @ 20A
Output (Charge) Voltage:
AGM/GEL: 14.3V (Boost), 14.7V (Absorption), 13.5V (Float)
Lead acid: 14.0V (Boost), 14.4V (Absorption), 13.5V (Float)
Calcium: 15.0V (Boost), 15.4V (Absorption), 13.5V (Float)
LiFePO4: 14.0V (Boost), 14.4V (Absorption)
DC Current Rating : 20A
Operating Temperature : -10°C - 45°C
Output Type: Bare Leads
Max PV Open Circuit Voltage: 25V

Click here for the Manual

This Powertech DC/DC Multi-Stage Battery Charger is a durable dual-input unit, managing solar and alternator/battery inputs to charge a secondary (house) battery system.

The charger supports batteries including, Lead acid, AGM, Calcium, GEL and LiFePO4. The charger system prioritises solar over the alternator, providing lower loads on your engine.

With automatic ignition detection enabled, the system will isolate the starting battery when the engine is off, preventing discharge of your critical starting battery.

The automatic set-and-forget charger is microprocessor controlled and features 6-stage charging modes. It is built with an aluminium case, mounting bracket, charge status LEDs and push button for battery selection.

Handles solar panels with 16 to 25V open circuit voltage, and comes with over charge, short circuit, over temperature, reverse polarity, thermal overload, and solar input overload safety protection.
