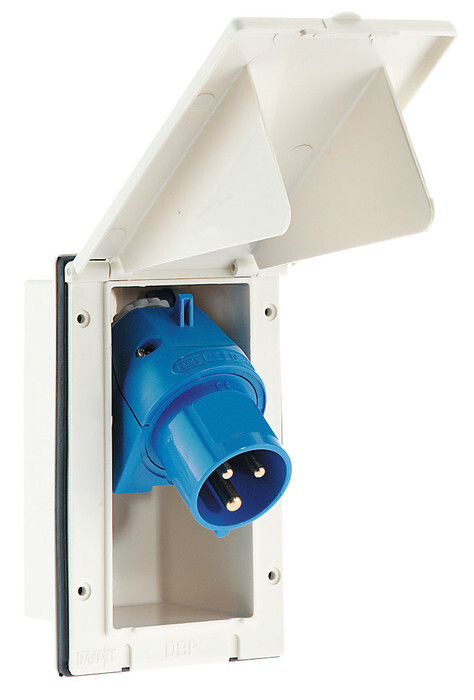

Power Inlet Box Flush Mounted 240V

The RVSC 240V Flush Mounted Power Inlet Box is a flush mounted 16A, 240V mains hook-up inlet plug housed in a recessed box with hinged cover, providing a convenient hook-up access point for caravans, motorhomes and campervans. The plug is hinged inside the housing so that it swings out to allow easy access during connection/disconnection.

Benefits & Features

• Surface mounted inlet fitted within a flush fitting box

• Overall Dimensions: 100mm wide x 160mm high x 75mm deep

• Cut out Dimensions (approx): 75mm wide x 135mm high

• Rating: 240V AC, 16A max.

• Site plug: Weatherproof to IP44

• Mounting holes: 4 x Ø3.5mm

• Depth from mounting face to rear of housing: 68mm

• Depth of visible housing when fitted: 11mm

• Colour: White
