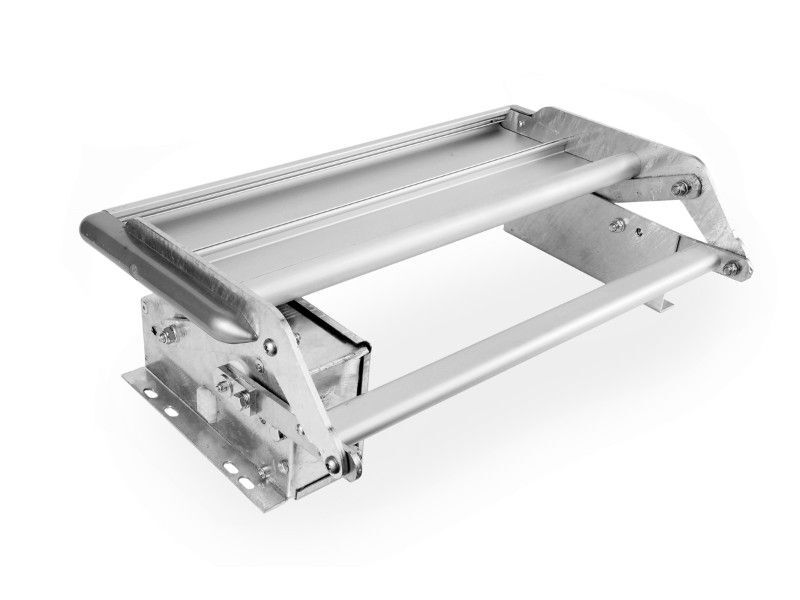

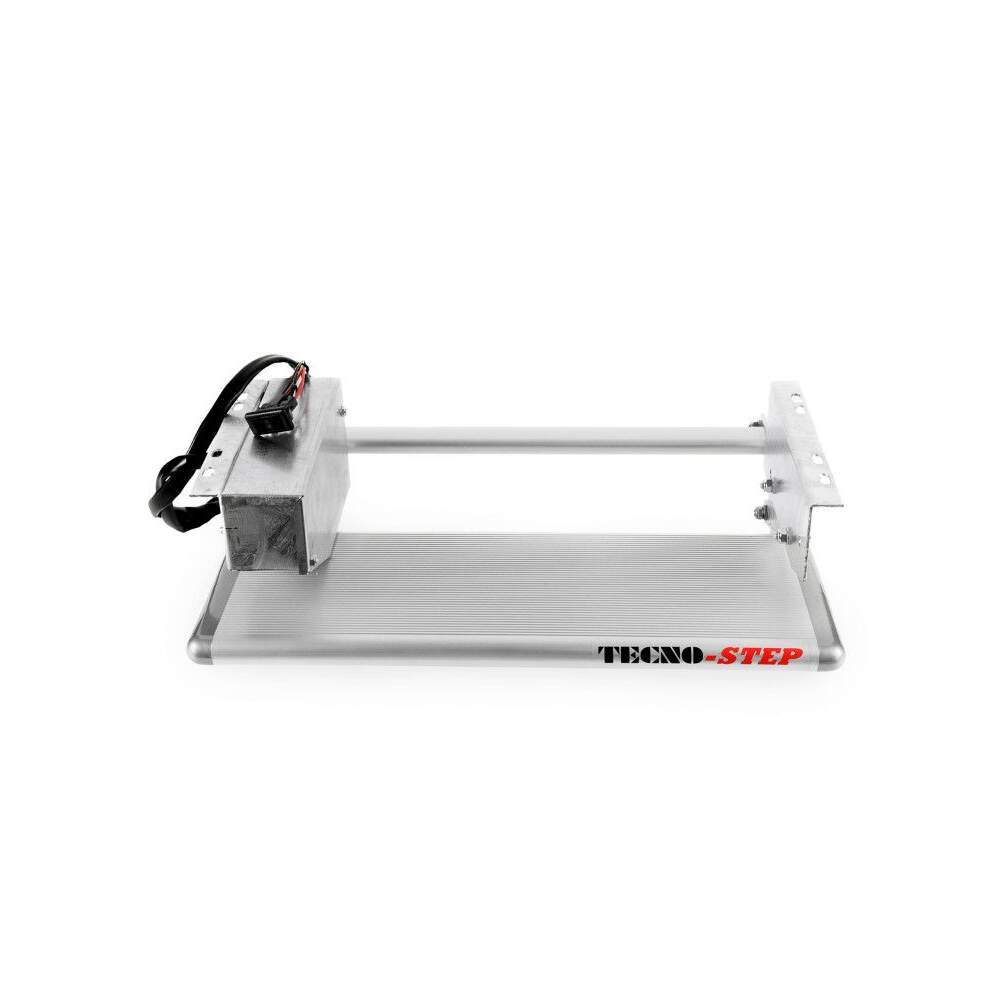

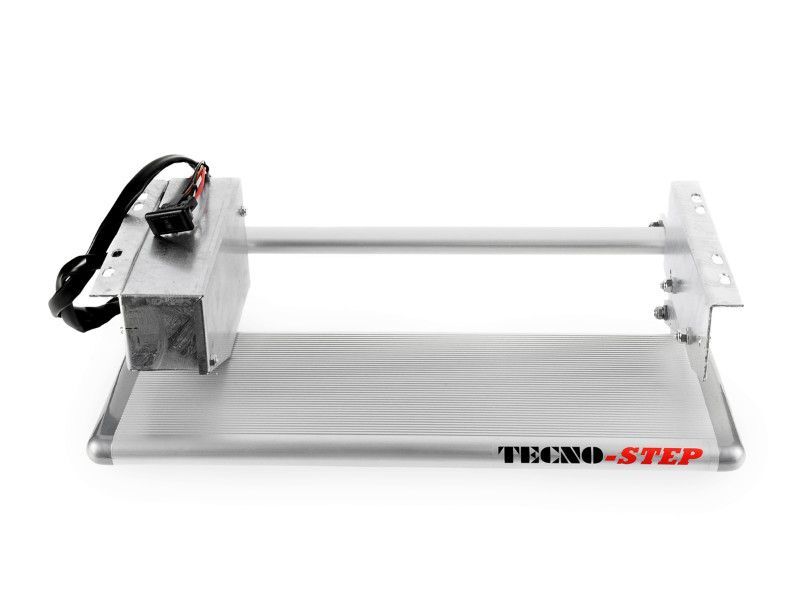

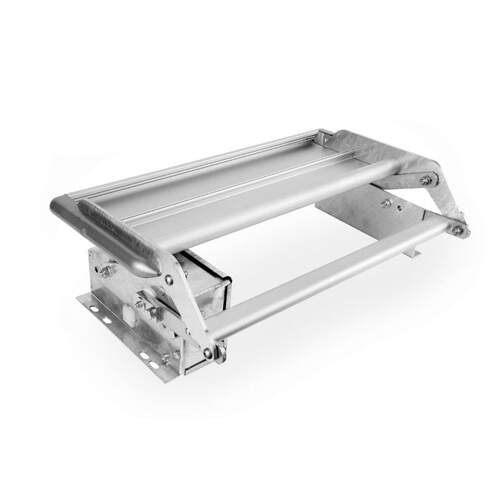

Nuova Mapa Electric Step Single

Getting safely in and out of your RV can present a challenge at times. Instead of trying to pull yourself into your RV and risking an accident, use this practical Techno-Step. The step is durable and lightweight and is operated by a switch that is usually placed just inside the doorway. It is a fantastic addition to increase the safety of your RV and enjoy a relaxed, stress free holiday.

Benefits & Features*

• Easy to operate

• Galvanised steel and anodised aluminium construction

• Rounded corners for safety

• Non-slip ribbed step

• Clearance required: 170mm deep when closed

• Closed step is 50mm proud of mounting flange

• Open step is 300mm proud of mounted flange

• Open step tread is 190mm below mounting flange

• Overall width of top mounting frame: 554mm

• Overall tread size: 575mm x 220mm

• Shipping weight: 8.09 kg

• Mounting brackets can be bolted (bolts not included) or welded to the Chassis

​

* Electric switch NOT INCLUDED - Link to the Standard Switch or to the Ignition Auto-Close Switch
