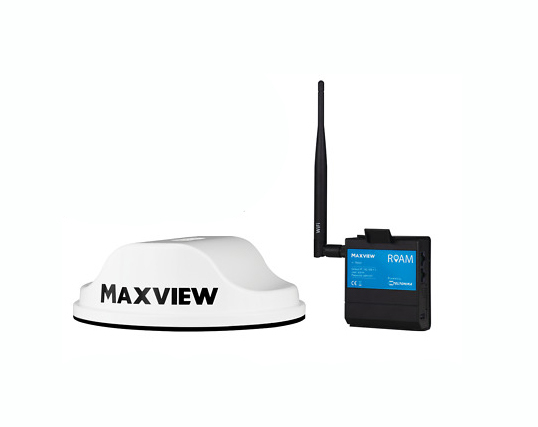

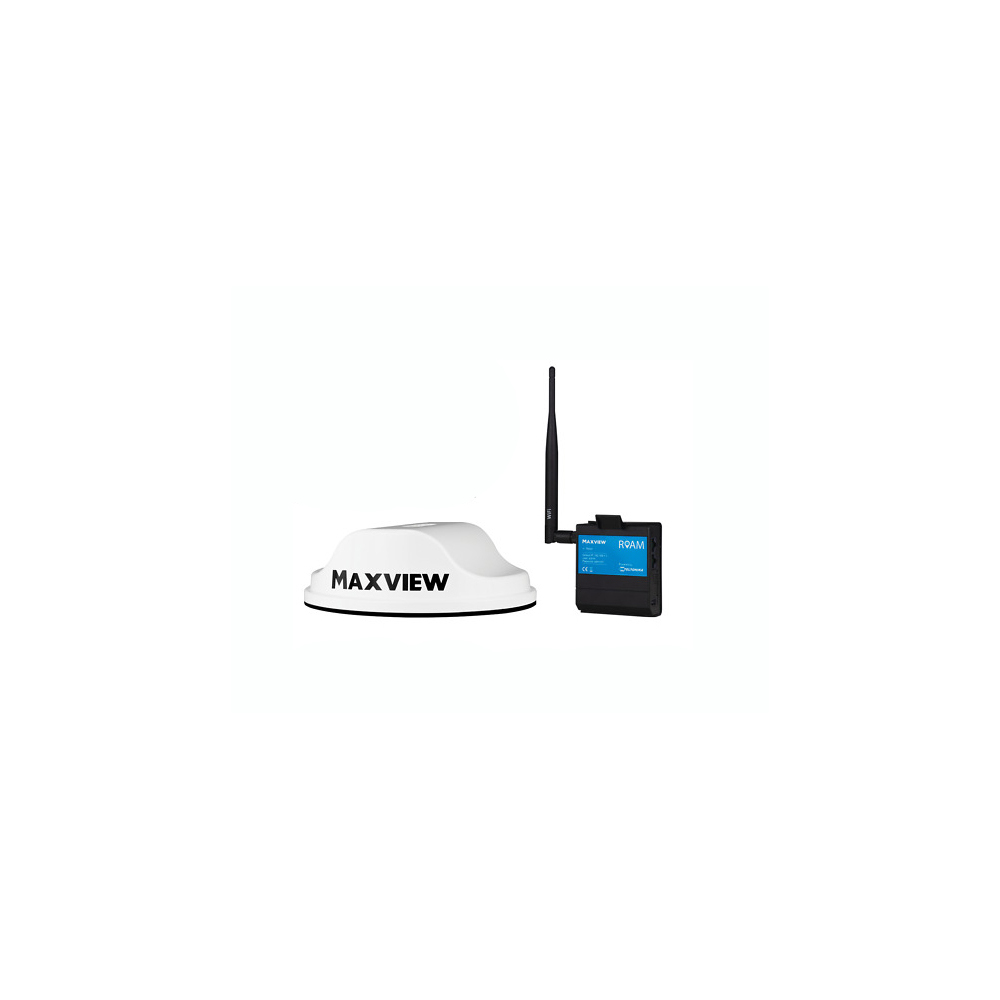

Maxview Roam Mobile WiFi System 3G/4G

Benefits & Features*

• Secure Internet Browsing

• Bespoke website blacklist filters can be set up to block unwanted websites

• Powered by Teltonika to bring the powerful Roam router

• Up to 50 devices at any one time, including Smart TV’s, smart phones, tablets and laptops

• 12V automotive cigarette power supply or can be powered using 230V mains power supply

• Connectivity - Can be wired using the 1.5m Ethernet cable providing a connection directly to a device

• Reliable Data Transfer - 0.8m Cable with twist on (SMA) connectors for reliable data transfer

• Remote diagnostics and troubleshooting support

• Product Contents: Omni-directional Roof Mount Antenna and Fixings, 0.8m cables with SMA connectors, 3G/4G and Wi-Fi Router, 12V Vehicle Power Supply, 120V Mains Power Supply, Router Mounting Bracket and Fixing Kit, 1.5m Ethernet Cable, Internal Wi-Fi Antenna, Instructions

• 1 year guarantee

Specifications: Antenna

• Type: Omni-directional MIMO (multiple in multiple out)

• Frequency: 698MHz to 2700MHz (3G/4G)

• Connector Type: SMA

• Peak Gain: 698-960MHz: 2.5dBi / 1710-2700MHz: 5.0dBi

• Impedance: 50 Ohm

• Power: Passive

• Cable Lengths: 0.8m (cables extensions available separately)

• Housing: Aluminium Base. UV Stable ASA Cover

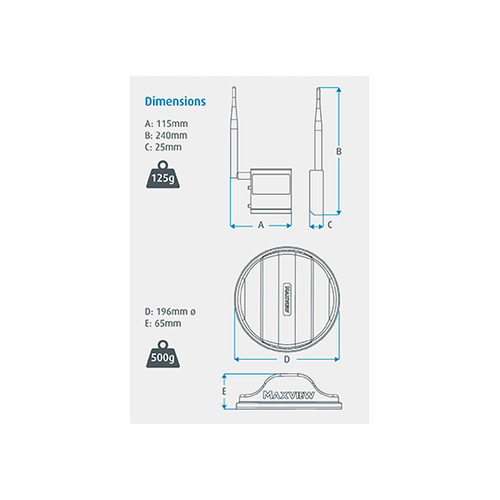

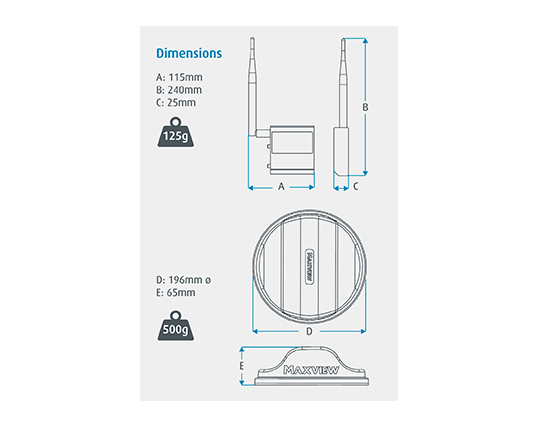

• Dimensions: 115mm(a) x 240mm(b) x 25mm(c)

• Weight: 500g

• Mounting Accessories: Yes

Specifications: Router

• Router Type: 3G/4G and Wi-Fi

• Compatible Speeds: Up to 150Mps

• 3G/4G Antenna Connector: 2 x SMA

• Ethernet Ports: 2 x RJ45 (WAN and LAN)

• Connection Devices: Up to 50

• External Antennas: 2 x 3G/4G (for external roof mount antenna), 1 x Wi-Fi (for internal whip antenna)

• Power Supply: 12V, 1A (includes 12V cigarette adaptor and 230V mains Power Supply)

• Power Consumption: 0.4A

• Family Browsing: Yes, blacklists and whitelists

• Remote Diagnostics: Yes

• SIM: Unlocked

• Housing: Aluminium

• Dimensions: 115mm(a) x 240mm(b) x 25mm(c)

• Weight: 125g
