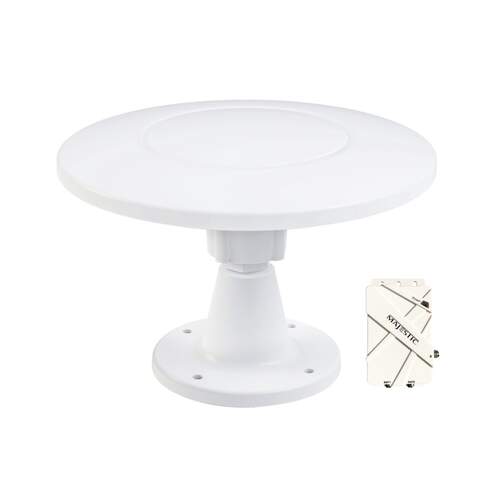

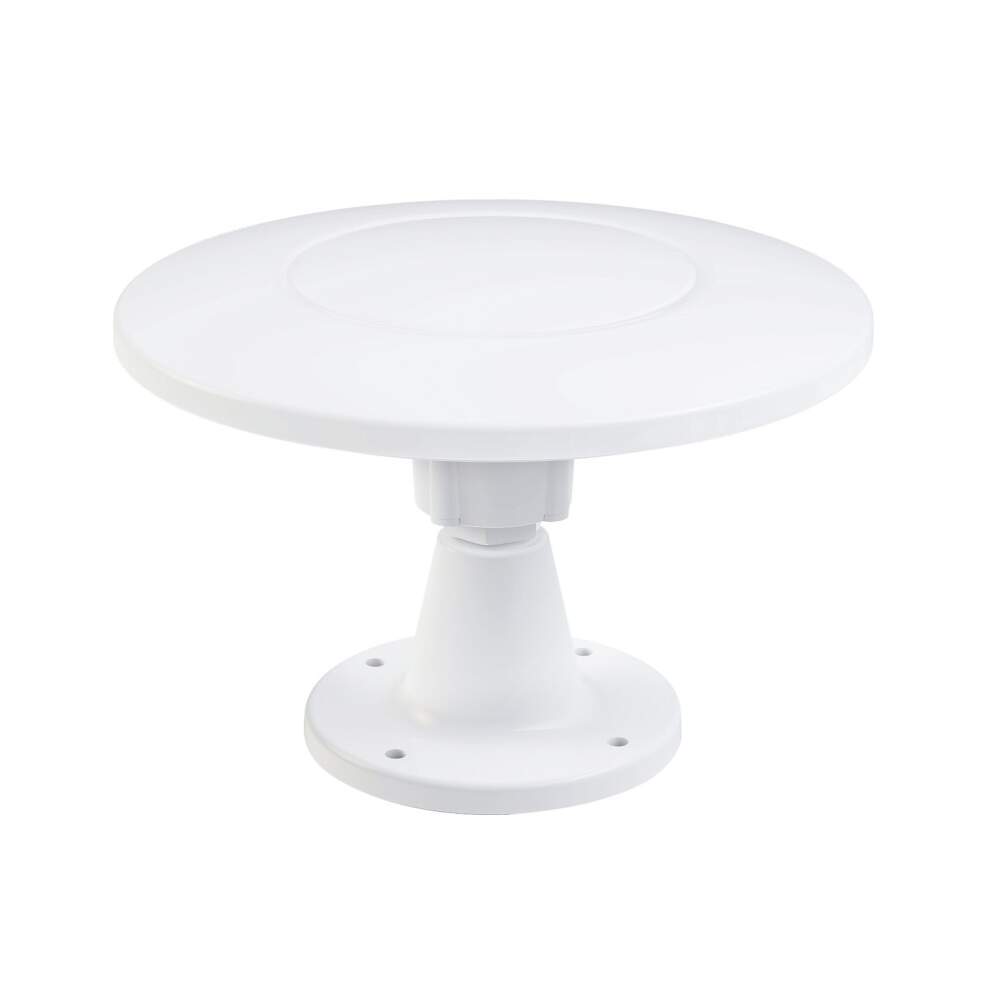

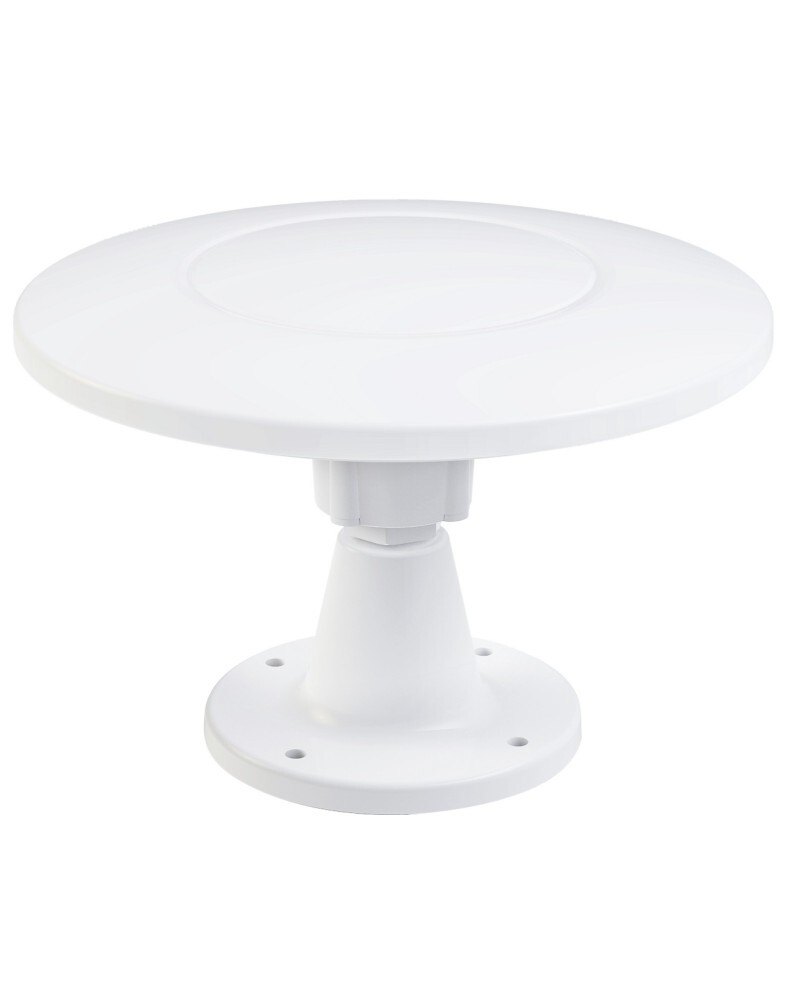

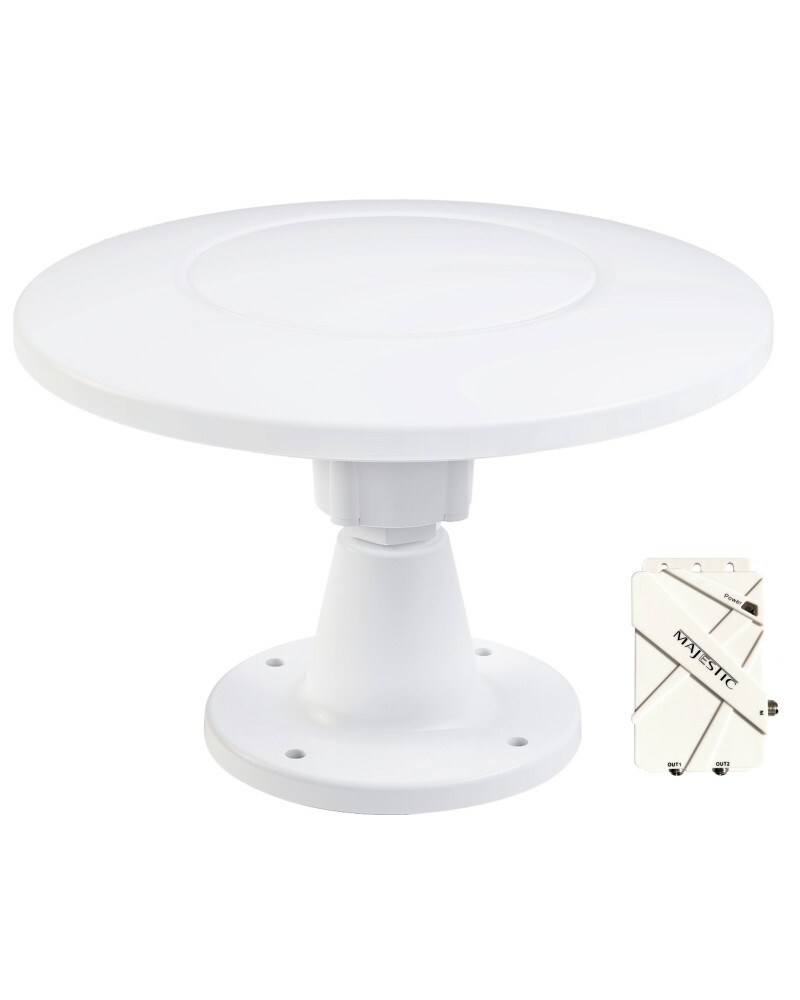

Majestic UFO X Marine TV Antenna 27cm

Benefits & Features

• Improved reduced size of 24cm (9.4”) in diameter and it is more powerful than the previous model

• 30dB High Gain Amplifier built into the Antenna

• Signal does not need to do any filtering or cleaning

• Vertical and horizontal plane incorporated to give you the performance needed in both Vertical and Horizontal locations

• Ground independent

• LED lights to indicate if power is being supplied

• Designed to work from 9V through to 27V DC

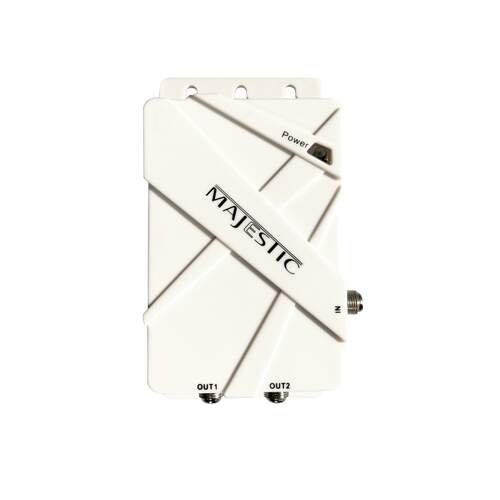

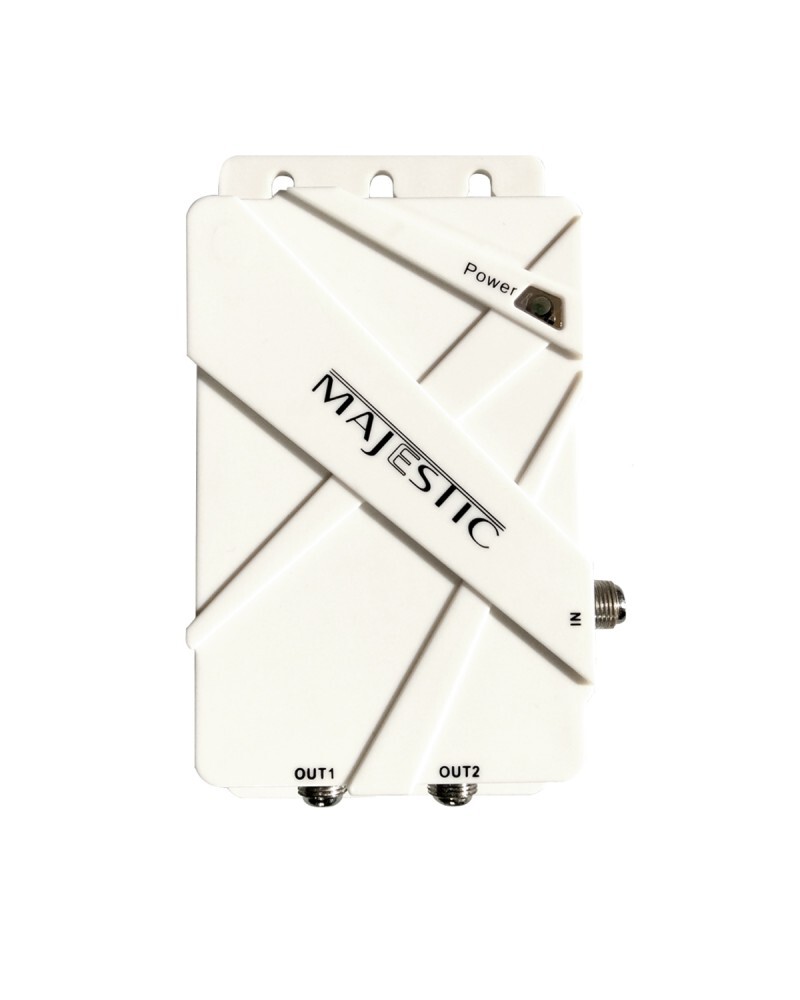

• Two outputs from the junction box incorporate UHF/VHF/FM

• Dimensions No Stand: Height 24cm, Diameter 9.4"

• Dimensions With Stand: Total Height 156mm - Base Diameter 125mm - Base Hght 110mm

• Colour: White

• Weight: 300g

• 3-year warranty

Please Note: this Antenna will only receive signal when in the line of sight of a TV Aerial tower, i.e. not suitable outside urban areas.

To download the instruction manual click here

Specifications

• Accessories Supplied: Junction Box, Power Lead, Connectors, Manual, 10M Cable, White Deck Mount

• Current Draw @ 12 Volt: Less than 0.1 Amp

•  Amplifier built in the antenna, digital - UHF/VHF and FM, UV stabilised, thread 1" - 14 thread

• Operating frequencies: VHF - 47MHz - 230MHz, UHF - 470MHZ - 862MHz, FM - 87MHz - 108MHz

• Gain: 30dB

• Polarisation: Horizontal & Vertical

• Reception: DVB-T2, ATSC, DAB/FM, ISDB-T, DMBT/H,

• Voltage Range: 10.9V to 24V DC
