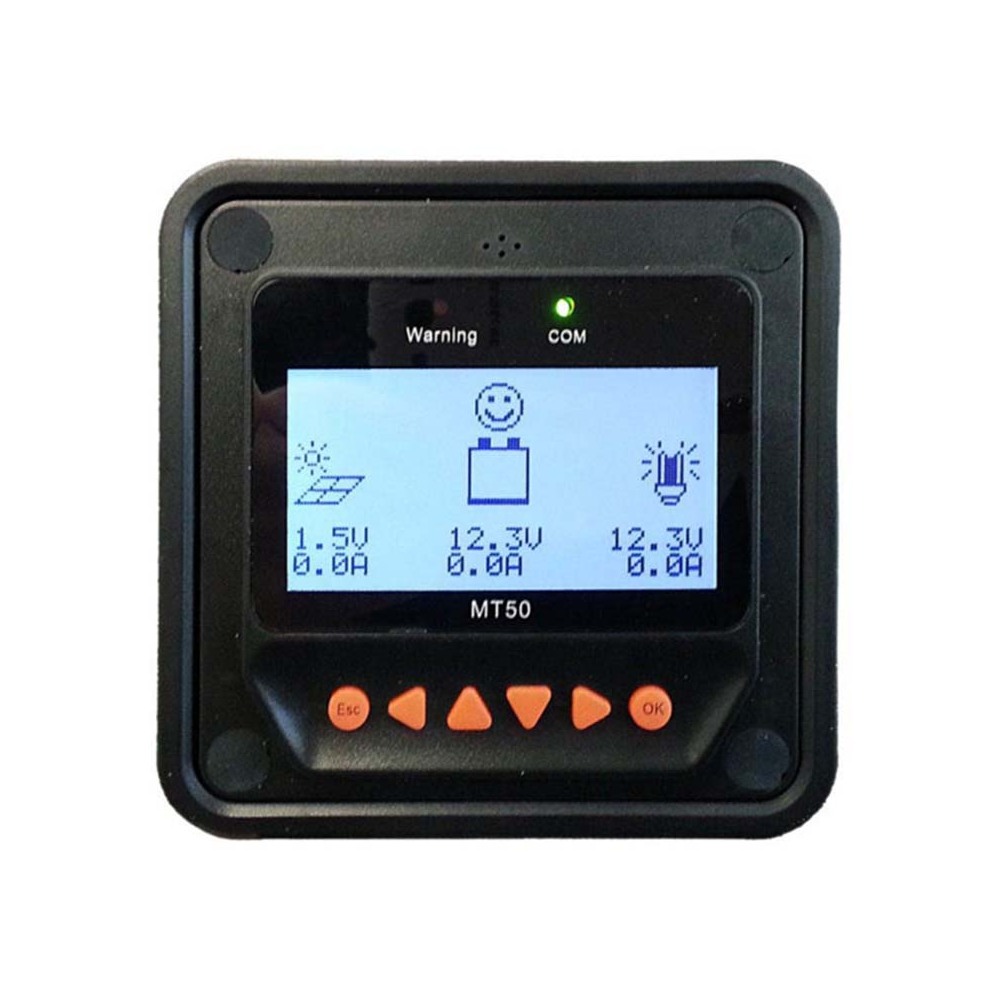

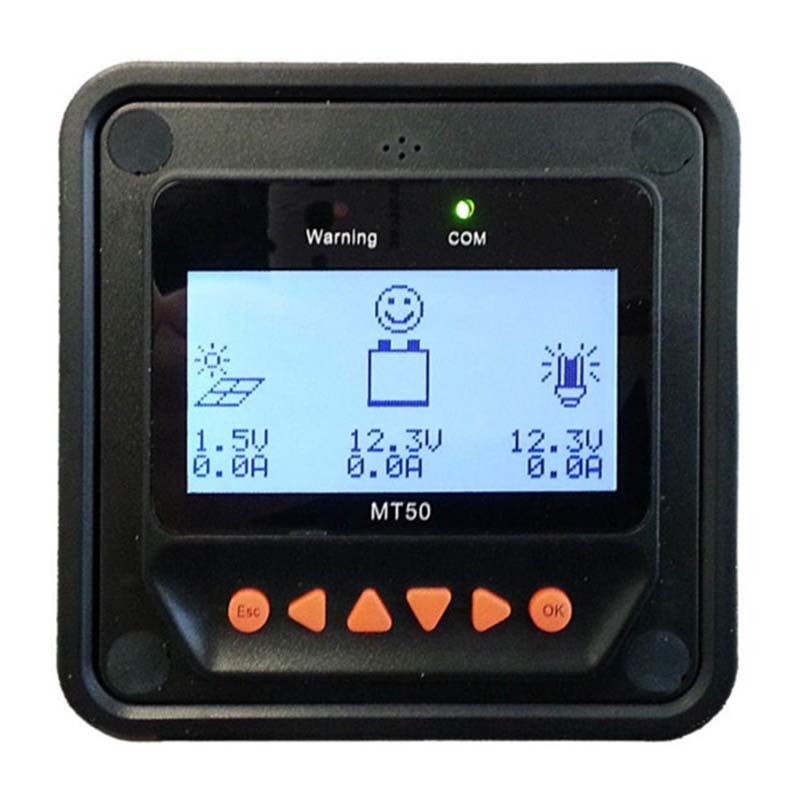

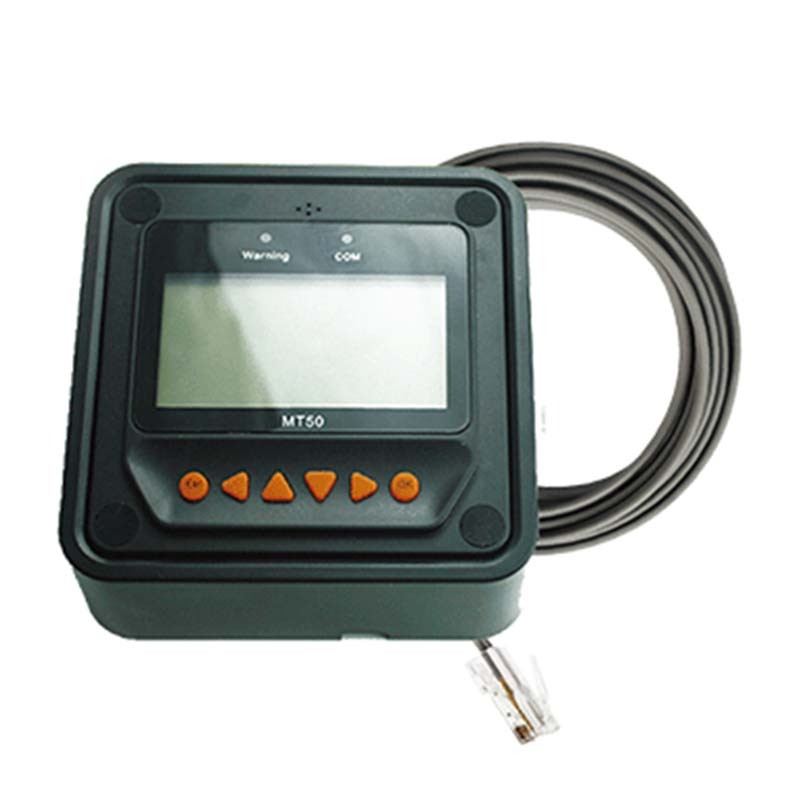

Epever MT50 Tracer-AN Remote Meter

Monitor your solar controller with ease using the Epever MT50 Tracer-AN Remote Meter.

The MT50 remote meter is an ideal display designed to be compatible with solar controllers in the Tracer AN, BN, BP and Xtra Series. Designed for supporting the solar controllers, the device features navigation function keys and real-time data.

Benefits & Features*

• Suitable for Tracer AN, BN, BP and Xtra Series

• Large-screen LCD to display operational data and working status of the connected devices

• Identifies and displays controller type, model and relevant parameter data

• 6 navigation function keys

• Data and power flowing on the same lead, no need for external power

• Real-time display and alarm of failure information

• Real-time data monitoring and remote load switchover of controllers, data browse and modification of device parameters, charge control parameters and load control parameters

• Longer communication distance based on RS485

• Supports the solar controllers communication protocol and voltage technology standard

• Faceplate Dimensions: 98mm x 98mm

• Frame Dimensions: 114mm x 114mm

• Connector Type: RJ45

• Meter Cable: Standard 2m, Max 50m

• Backlight and acoustic alarm ON<65mA

• Backlight ON<23mA

• Backlight OFF<15mA

• Ambient Temperature: -20°C  - +70°C
