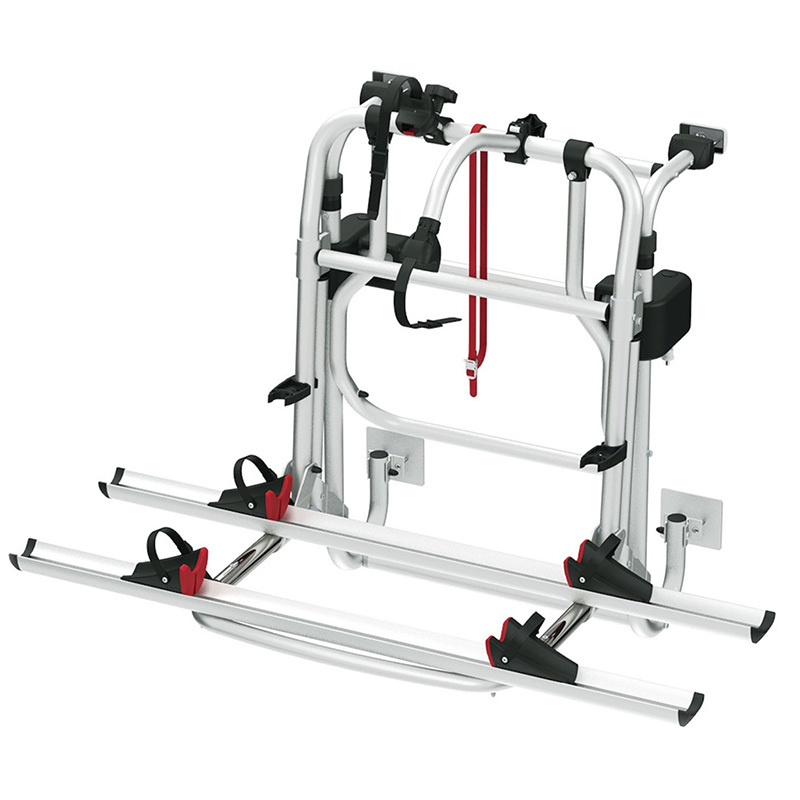

Fiamma Carry-Bike Lift 77 (2023)

The 'restyled' Fiamma Carry-Bike Lift 77 has been completely renewed and improved both functionally and aesthetically to ensure your bikes remain safe while on the road.

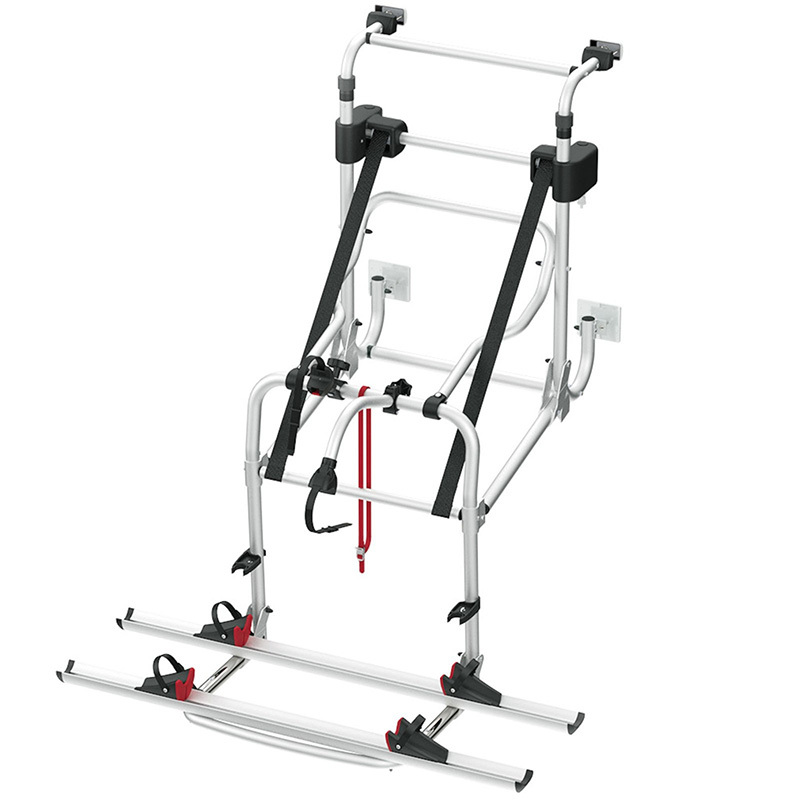

Making loading and unloading bikes even easier, the convenient tilting shelf, of the Carry-Bike Lift 77, lowers 77 cm ensuring you will never have to try and lift your bikes to ridiculous heights just to get them on your bike rack again.

Wall fixing points with vertical wheelbase from 68 to 108cm makes it ideal for installation to many different motorhome models. Standard delivered to carry two bikes but can be adapted to carry up to 4-bikes with the optional upgrade kits.

Benefits & Features*

• Rails lower by 77 cm to load and unload bicycles effortlessly

• Winding handle can be shortened

• Rack Holder includes safety carrier lock, avoiding accidental unhooking

• Bull shock absorbers are included to minimise vibration and impact when travelling

• Crank handle has magnetic hooking and can be shortened

• Scratch-proof bike lock

• Quick lock allows for quick and safe locking of the wheel to the rail

• Suitable for all types of motorhomes

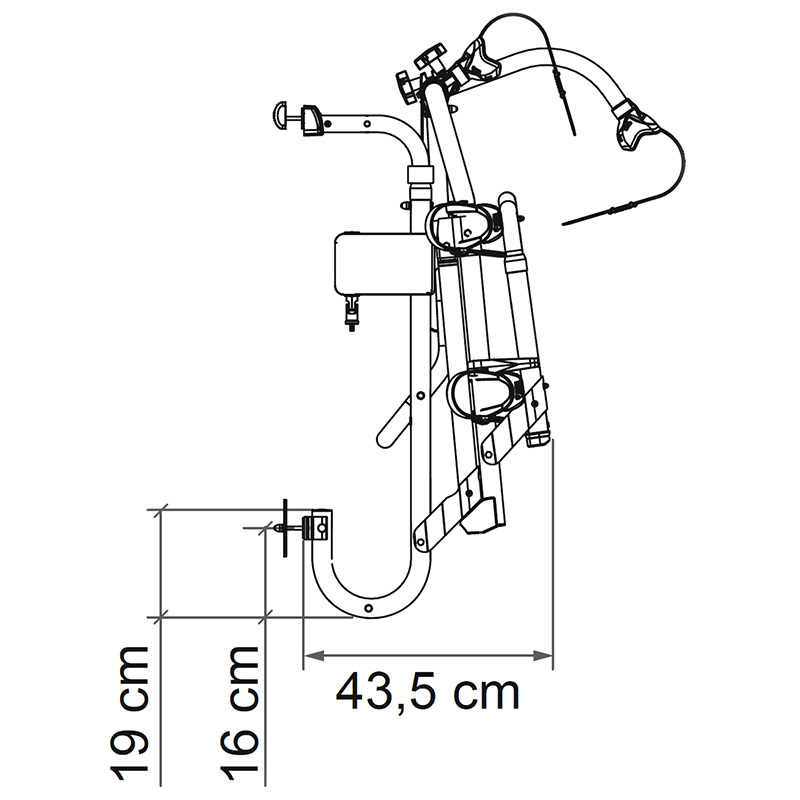

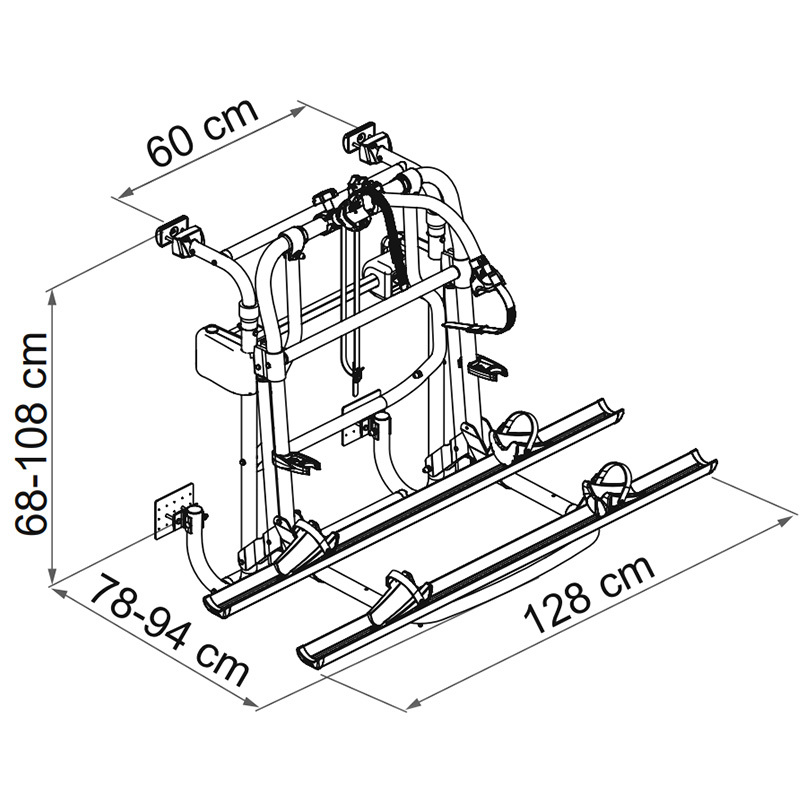

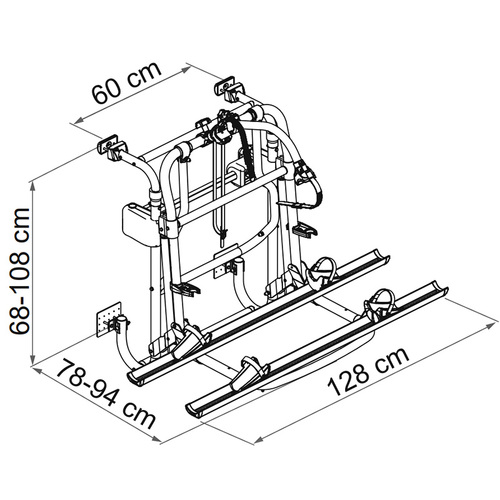

• Dimensions: for all dimensions please refer to photos 3 & 4

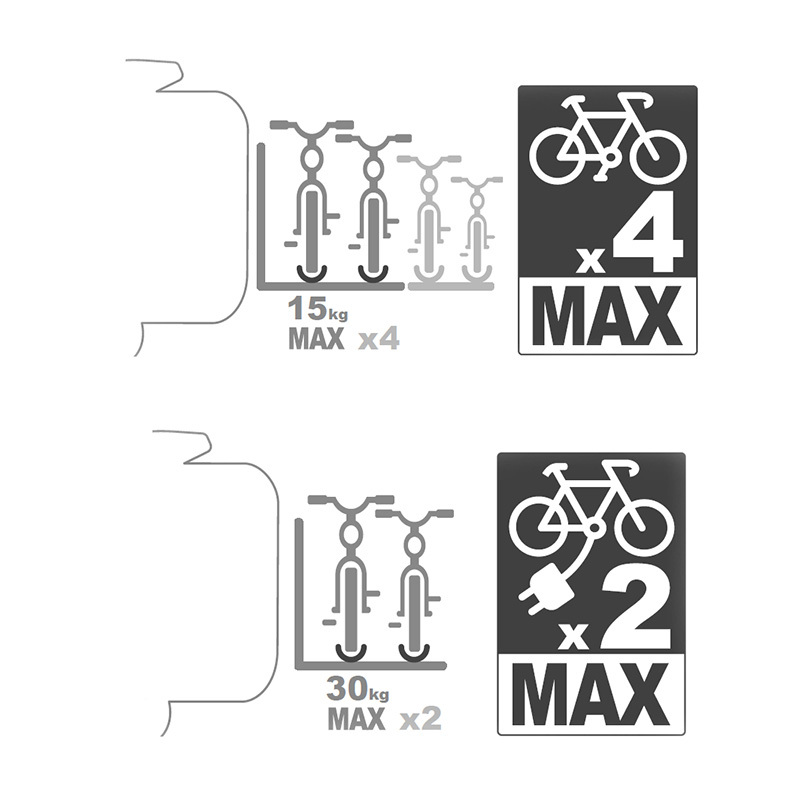

• Maximum Bikes: 4 or 2 E-Bikes

• Maximum Load: 60kg

• Weight 18.3kg

*Click here for Installation & Instruction Manual

Please note:  if carrying E-Bikes, it is advisable to remove the batteries from bicycles, before loading them on the Carry-Bike while traveling.
