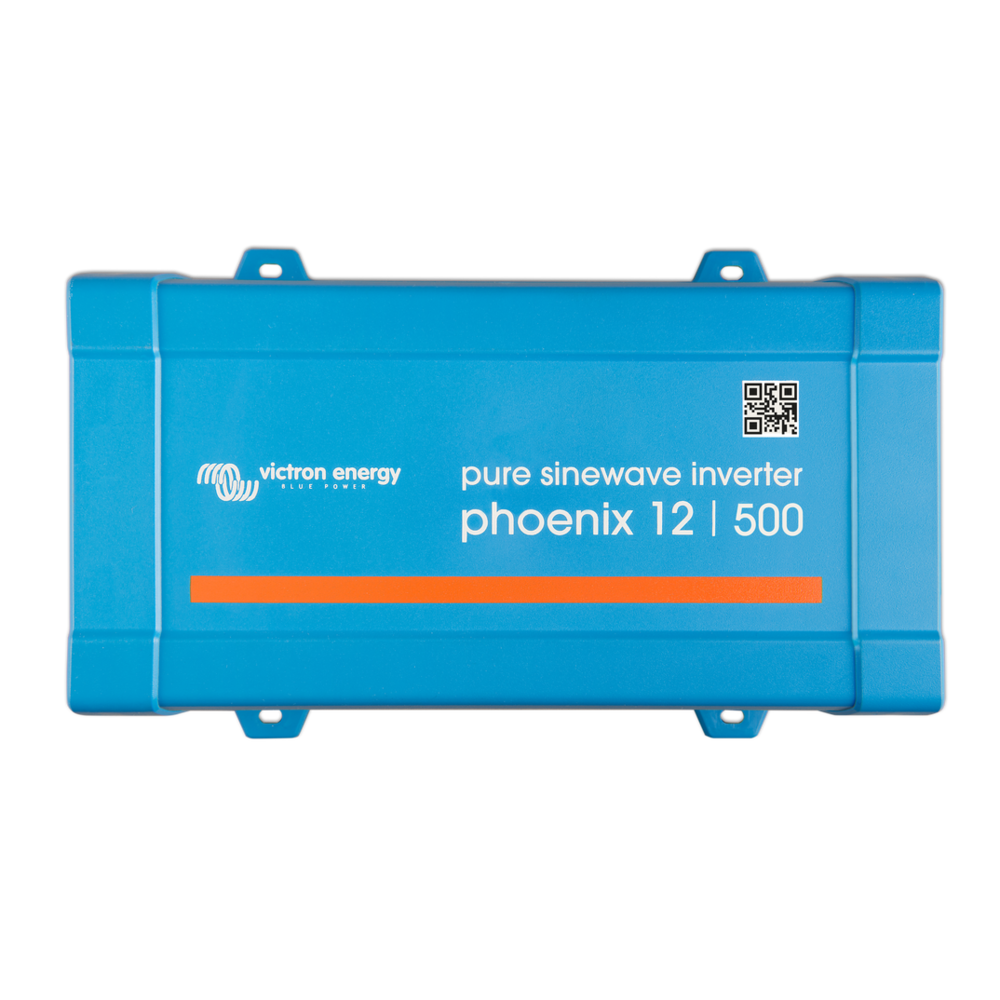

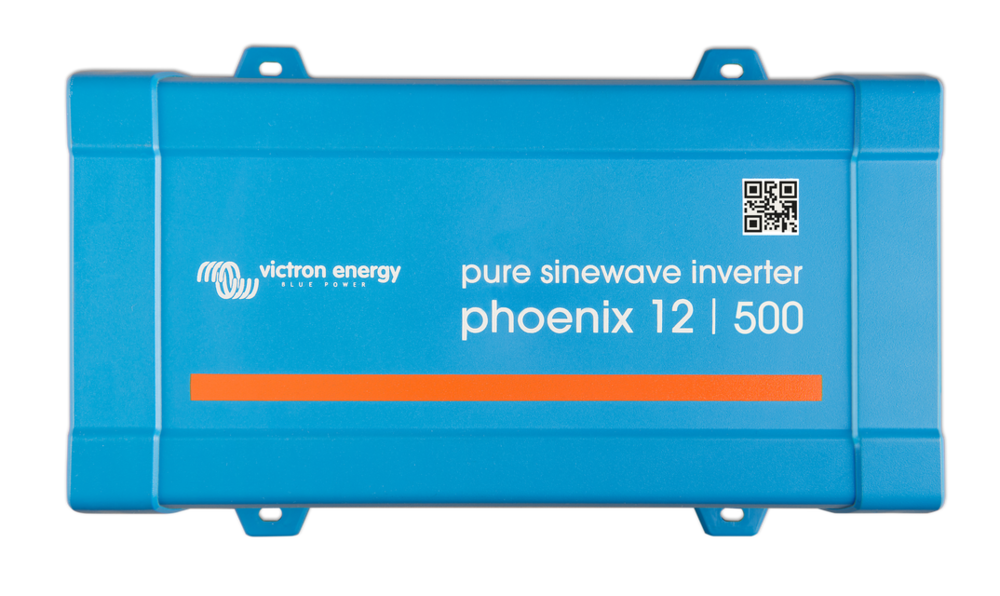

Victron Phoenix Inverter 12/500VA (400W)

Enquire Now

Call Now

Pickup and Delivery Options

Enter your quantity and shipping address postcode.

Qty

Postcode

Currently Out of Stock

Specifications

Cont. power at 25°C: 500VA
Cont. power at 25°C/40°C: 400W/350W
Peak power: 900W
Output AC voltage / frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
Input voltage range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V
DC low shut down (adjustable): 9,3 / 18,6 / 37,2V
DC low restart and alarm (adjustable): 10,9 / 21,8 / 43,6V
Battery charged detect (adjustable): 14,0 / 28,0 / 56,0V
Max. efficiency: 90 / 90 / 91%
Zero-load power: 6 / 6,5 / 9W
Default zero-load power in ECO mode (default retry interval: 2,5 s, adjustable): 1 / 1,5 / 3,0
ECO mode stop and start power setting: Adjustable
Operating temperature range: -40 to +65°C (fan assisted cooling) Derate 1,25% per °C above 40°C
Humidity (non-condensing): max 95%
Material & Colour: Steel chassis and plastic cover (blue Ral 5012)
Battery-connection: Screw terminals
Maximum cable cross-section: 10 mm² / AWG8
Protection category: IP 21
Weight: 3,9kg
Dimensions (hxwxd, mm): 86 x 172 x 275
Remote on-off: Yes
Automatic transfer switch: Filax

The Victron Power Inverter is built for professional duty and yet competitively priced without compromise in performance. It allows you to run your domestic equipment using automotive batteries. An inverter increases your flexibility as you do not have to buy specialised RV appliances & accessories and can just use the same products you would at home.

Benefits & Features*

Short circuit proof and protected against overheating
High start-up power
ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W)
Remote on/off switch
LED diagnosis
12V/500VA
