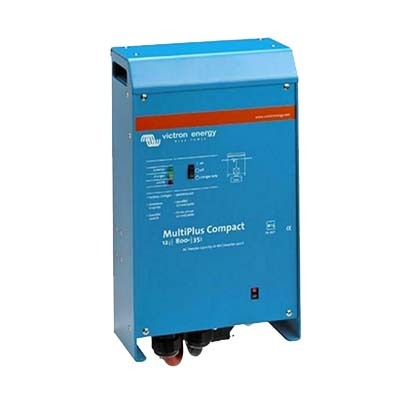

Victron Compact Multiplus Inverter Charger 12V/800VA

The Victron Compact Multiplus is a unique unit combining a true sine wave inverter and sophisticated charger into one compact enclosure.

The MultiPlus is designed with four stage adaptive charging, dual bank battery charging, hybrid PowerAssist technology and multiple system integration features. The unit consists of an array of advanced features including high speed AC transfer, virtually unlimited power due to parallel operation, three phase capability and split phase options. With PowerControl, the unit deals with limited generator, shoe side or grid power.

Benefits & Features*

• Pure sine wave inverter

• Battery Charger: Four stage adaptive charging, variable absorption time, BatterySafe mode, Storage mode, two DC outputs, temperature compensation

• Parallel and 3-phase operation capability

• Uninterrupted AC power

• Three phase capability and split phase options

• PowerAssist technology

• PowerControl dealing with limited generator, shore side or grid power

• Programmable relay

• Operation: On/off/charger only switch, remote control, equalisation and forced absorption, LED indications

• 12V, 800VA inverter, 35A charger, 16A AC

• Protection: IP21

• Weight: 10kg

• Dimensions: 375mm(h) x 214mm(w) x 110mm(d)

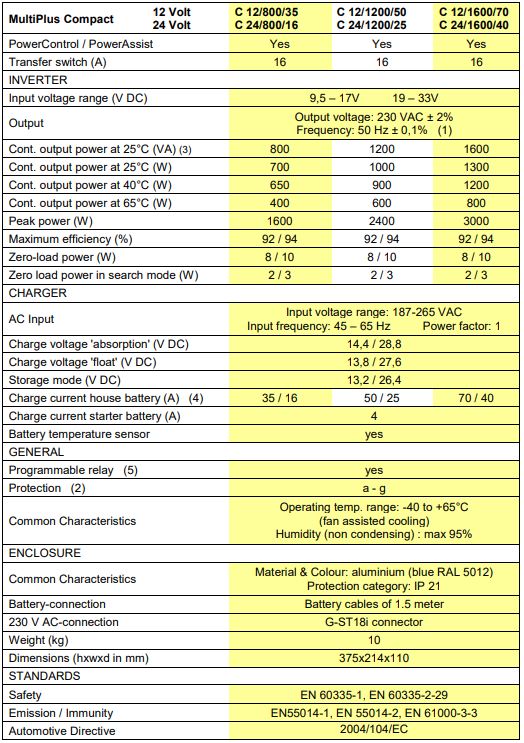

*For further specifications please click the "Features" tab

Click here for the Manual
