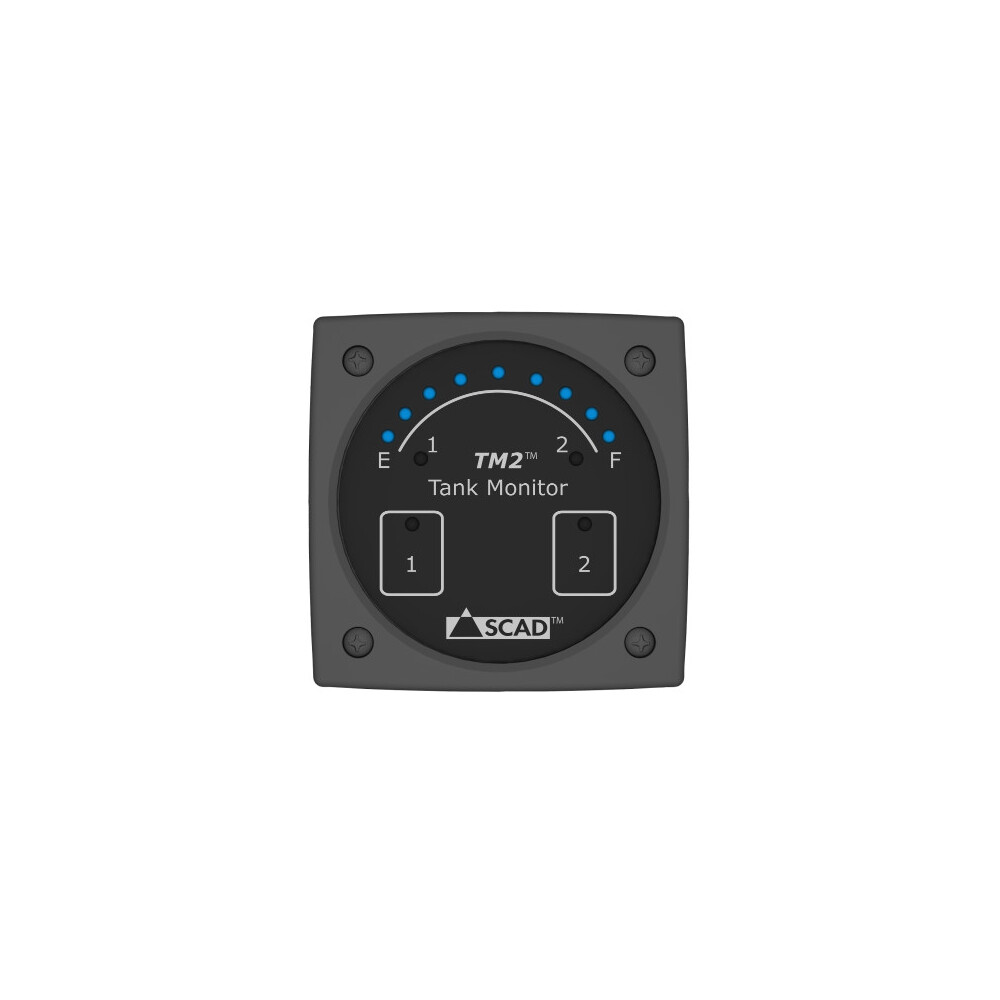

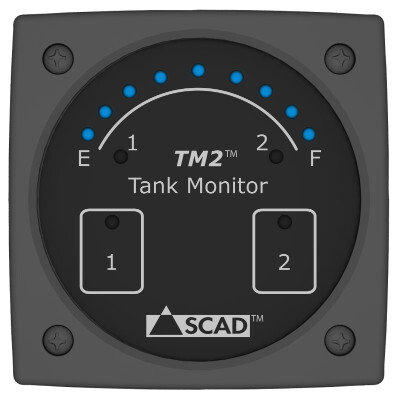

SCAD TM2 Duel Tank Monitor without External Sensors

Easy to operate and cost effective, the SCAD TM2 Tank Monitor is designed to operate with external stick-on level sensors that cannot get fouled. The external sensors are purchased separately.

Monitor fresh water, grey water or holding tank levels in two non-metallic tanks up to 762mm tall at the simple touch of a pad. You can be alerted by an alarm when the liquid is at a critical level.

Benefits & Features

• Easy to install

• Touch controls

• External sensor cannot foul like internal sensors

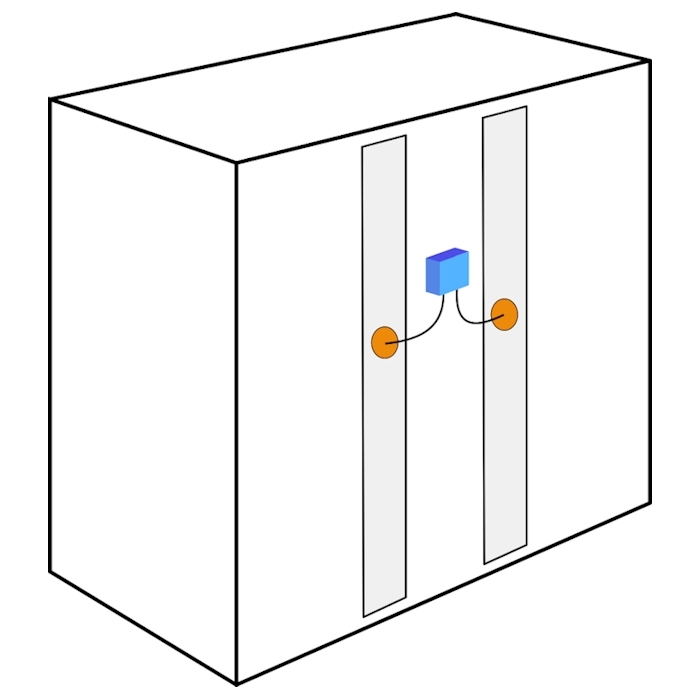

• Easy to install sensor adheres to the outside of plastic and fibreglass tanks

• Compatible with fuel float sensors

• Can be used with a variety of sensors

• Optional internal sensor available for metal tanks

• Tank level can be viewed while filling or emptying a tank

• Continuous read function provides hands free monitoring

• Compact surface mount size saves space (12.7mm hole required for wires)

• Visual alarm on empty or full, or no alarm

• External alarm control wire

• Accommodates all tank shapes

Specifications

• Power: 12/24V DC

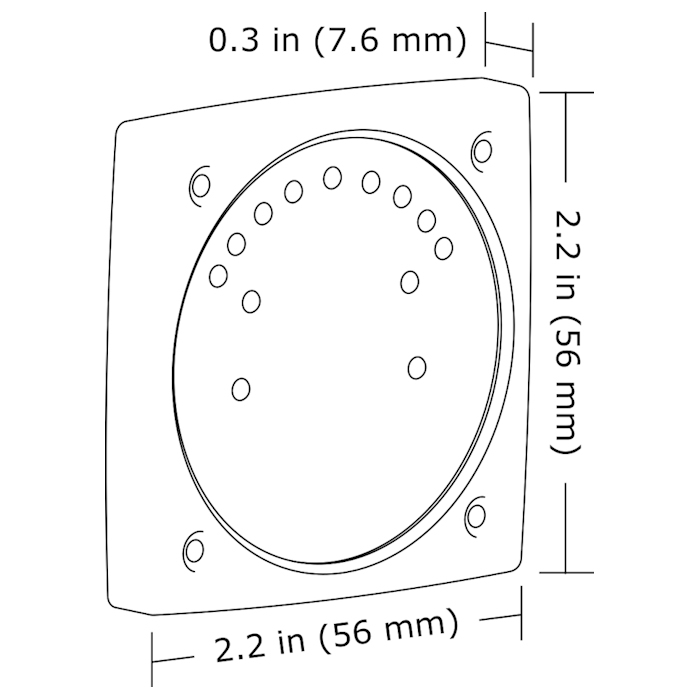

• Dimensions: 56mm(w) x 7.6mm(d) 56mm(h)

• Monitor is compatible with 240-33ohm and 10-180ohm float sensors for fuel

Click here for the Datasheet
